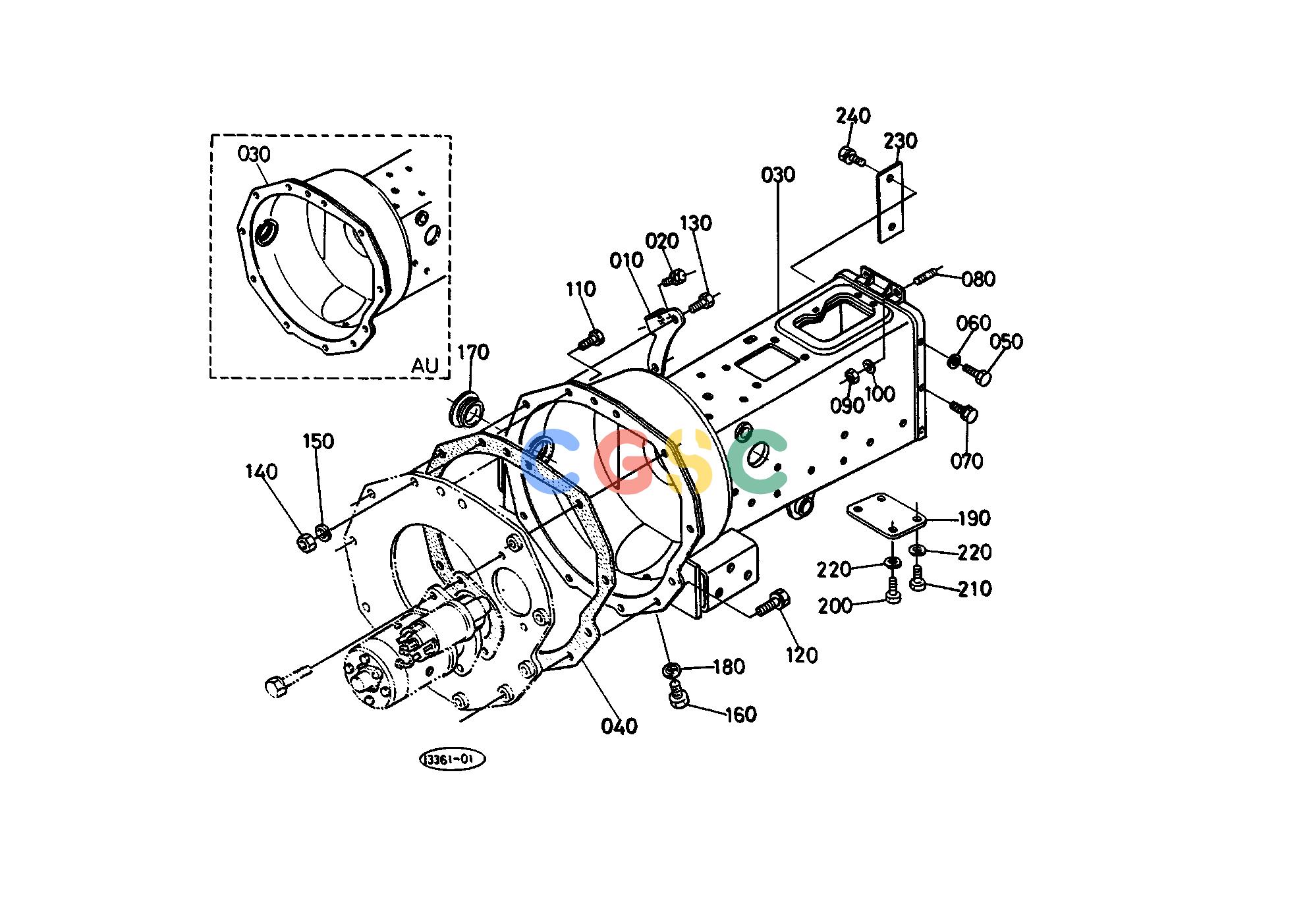

久保田零件查询T03800 CLUTCH HOUSING TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670436150
|
[1] |
HOLDER
|
0.1320(lbs); 0.060
|
| 020. |
0112350814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
6690451100
|
[1] |
HOUSING CLUTCH
|
46.2000(lbs); 21.000
|
| 030. |
6690451103
|
[1] |
HOUSING FRAME CLUTCH
|
46.6400(lbs); 21.200
|
| 030. |
6620451100
|
[1] |
HOUSING FRAME CLUTCH
|
41.1400(lbs); 18.700
|
| 040. |
6662151410
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 050. |
6620451150
|
[4] |
BOLT REAMER
|
0.0000(lbs); 0.000
|
| 060. |
0451250140
|
[4] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 070. |
0115351230
|
[2] |
BOLT
|
0.0792(lbs); 0.036
|
| 080. |
0155551220
|
[2] |
STUD
|
0.0748(lbs); 0.034
|
| 090. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 100. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 110. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 120. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
0115350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 140. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 150. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 160. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 170. |
6670451190
|
[1] |
COVER TIMING HOLE
|
0.0198(lbs); 0.009
|
| 180. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 190. |
6620451180
|
[1] |
PLATE JOINT
|
0.9680(lbs); 0.440
|
| 200. |
0117351225
|
[2] |
BOLT
|
0.0726(lbs); 0.033
|
| 210. |
0115351230
|
[2] |
BOLT
|
0.0792(lbs); 0.036
|
| 220. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 230. |
6620451190
|
[1] |
COVER
|
0.1650(lbs); 0.075
|
| 240. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
