纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (013-18[2]) - CYLINDER ASSY, SWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
154 次

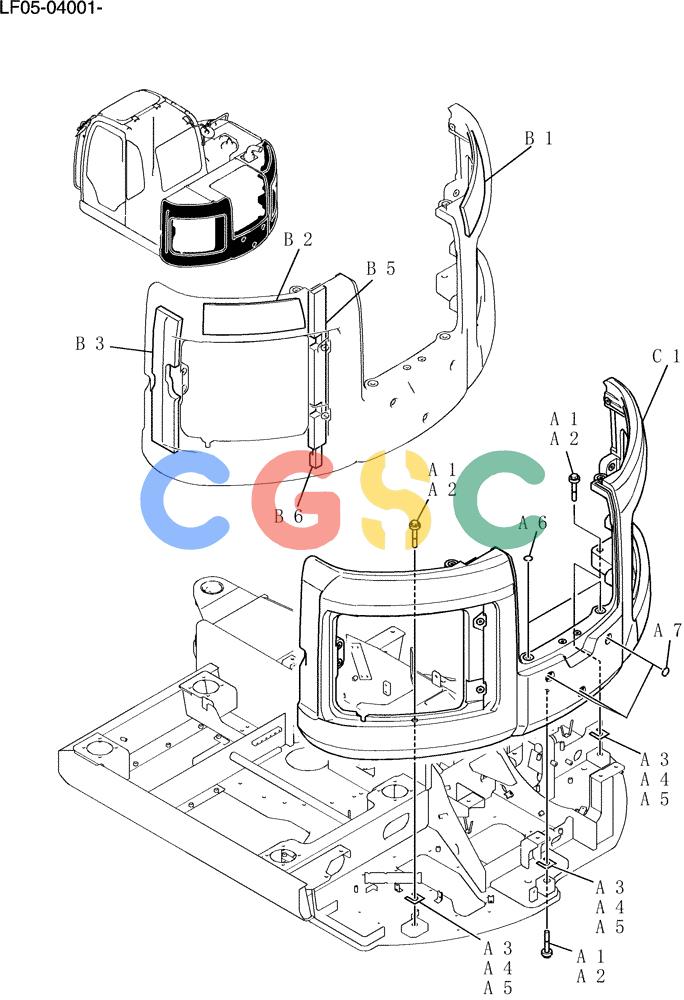

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF02B00017F1 | [1] | Bracket Group, Swing | |
| . . | LF02B00019F1 | [1] | BRACKET, SUPPORTING | KOBBracket Group, Swing |
| C1. | LF02B01025P2 | [1] | COVER | KOB |
| C2. | LF02B01016P2 | [1] | RUBBER | KOB |
| C3. | LF02B01017P2 | [1] | RUBBER | KOB |
| C4. | YT03H01036P1 | [2] | CLAMP | KOB |
| C5. | YT32H01030P1 | [2] | BUSHING | KOB |
| C6. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBSems |
| C7. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBCap |
| C8. | ZW16H08000 | [2] | WASHER | KOB |
| C9. | LF02B01018P1 | [1] | GROMMET | KOBGromme |
| C10. | YX03H01046P1 | [3] | CLIP | KOB |
| . . | LF02B00020F1 | [1] | BRACKET, SUPPORTING | KOBBracket Group, Swing |
| E1. | LF02B00003P1 | [1] | BRACKET | KOBBracket, Swing |
| . . | LF02B00006F1 | [1] | Bracket Instal, Swing | |
| F1. | LF02B01010P2 | [1] | PIN | KOB |
| F2. | LF02B01011P2 | [1] | PIN | KOB |
| F3. | HS18C16230G1 | [2] | SCREW | KOBCap |
| F4. | ZN18C16013 | [4] | NUT | KOB |
| F5. | LF02B01012P1 | [1] | WASHER | KOB |
| F6. | LF02B01013P1 | [1] | WASHER | KOB |
| F7. | 2445R138D12 | [2] | SEAL,95mm ID x 110mm OD | KOBDust |
| F8. | LF02B01014P1 | [1] | SHIM | KOB(0. 5) |
