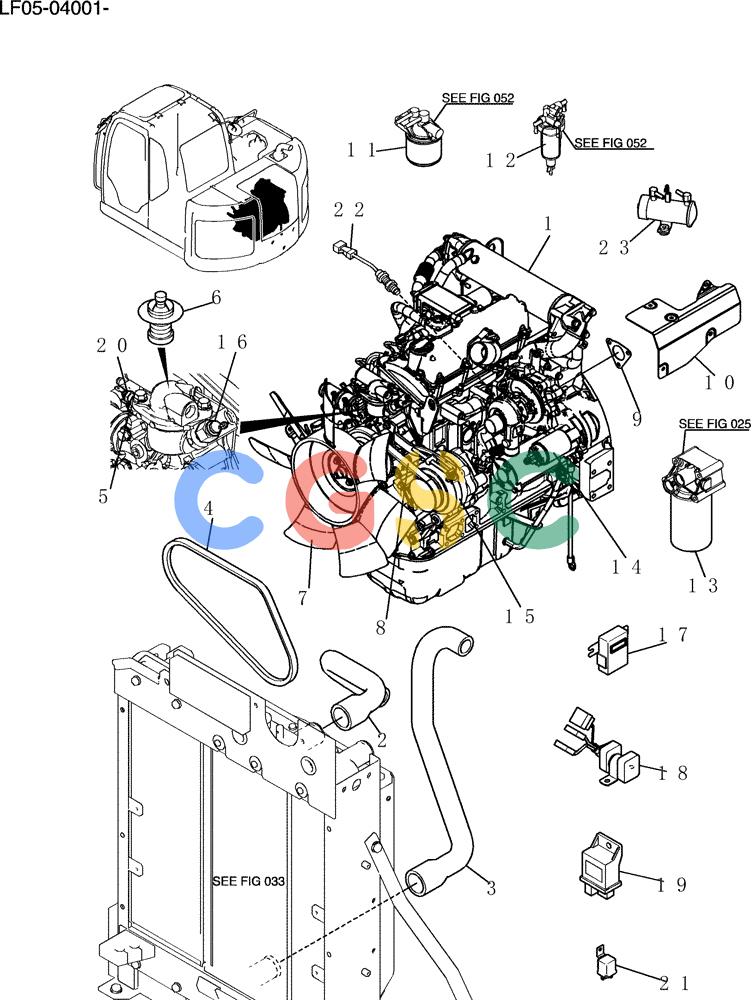

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (020-01[1]) - ENGINE ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1036 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT02P00010F1 | [1] | ENGINE | KOBAssy |
| 2. | YT05P01065P1 | [1] | RADIATOR HOSE | KOB |
| 3. | YT05P01239P1 | [1] | RADIATOR HOSE | KOB |
| 4. | YN20M01494D7 | [1] | BELT | KOBV(conditioner, Air) |
| 5. | VI8970785920 | [1] | THERMOSTAT | KOB |
| 6. | VI8973617700 | [1] | THERMOSTAT | KOB |
| 7. | VI8972876961 | [1] | FAN | KOB |
| 8. | VI8980490330 | [1] | BELT | KOB |
| 9. | VI8980044530 | [1] | PULLEY | KOBGasket |
| 10. | VI0916147080 | [1] | WASHER | KOBCover |
| 11. | VI8971725491 | [1] | ELEMENT | KOBFilter, Fuel Superseded by part number: YB02P00001-2 |
| 12. | VI8972133810 | [1] | ELEMENT | KOBFuel |
| 13. | VI8980756760 | [1] | ELEMENT | KOBOil E/g Superseded by part number: 87729947 |
| 14. | VI8980723151 | [1] | STARTER MOTOR | KOB |
| 15. | VI8971822892 | [1] | GENERATOR | KOB |
| 16. | VI8971256001 | [1] | SWITCH | KOB |
| 17. | VI8980305740 | [1] | CONTROLLER | KOB |
| 18. | VI1825530391 | [1] | RELAY | KOB |
| 19. | VI8980305730 | [1] | TIMER | KOB |
| 20. | VI8970633010 | [1] | SENSOR | KOB |
| 21. | VI5825500300 | [1] | RELAY | KOB |
| 22. | VI1815105130 | [1] | SENSOR | KOB |
| 23. | VI8970415212 | [1] | FUEL PUMP | KOB |
