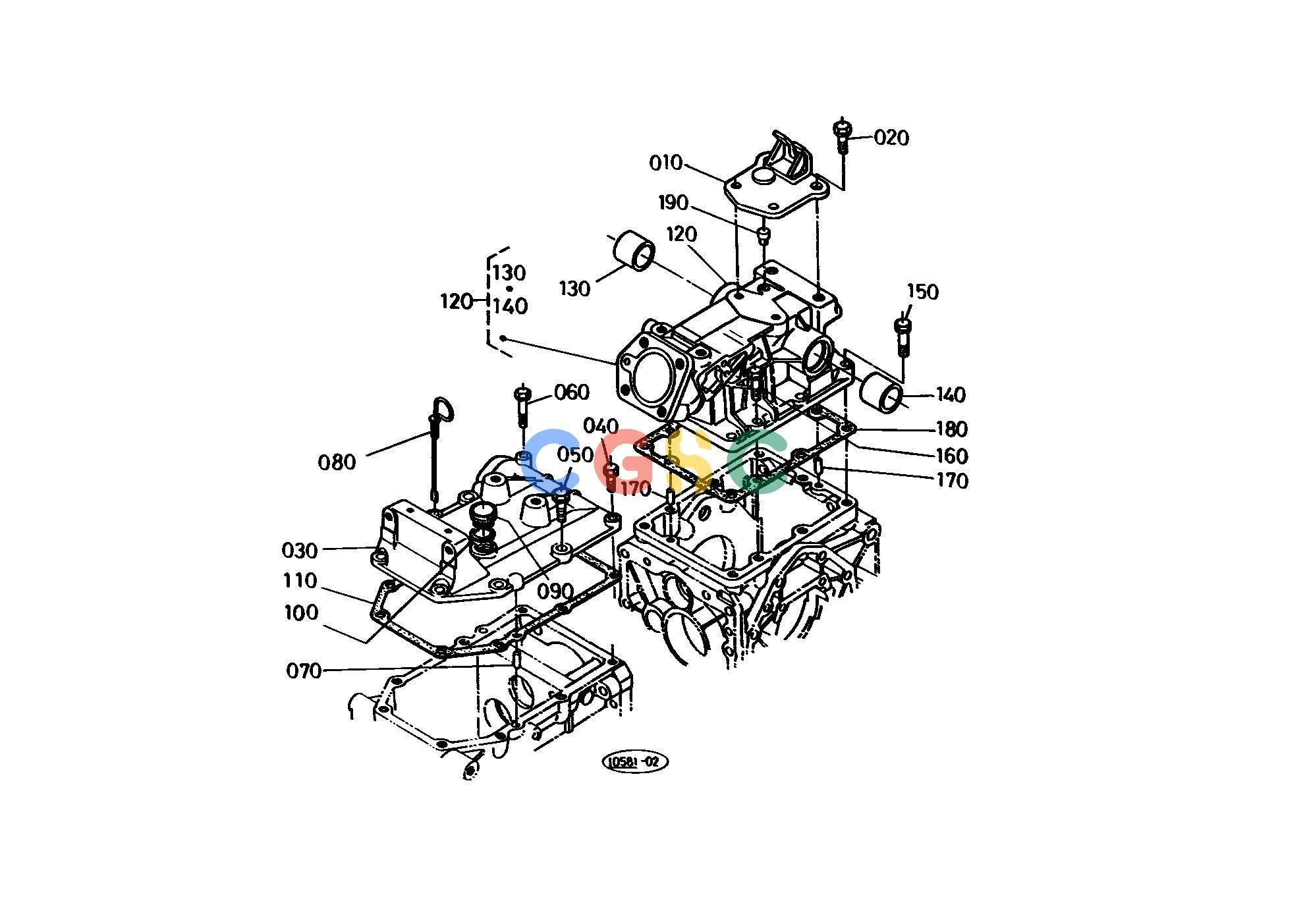

久保田零件查询T04100 CASE COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6661111910
|
[1] |
BRACKET CHAIN
|
1.2540(lbs); 0.570
|
| 020. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 030. |
6620412410
|
[1] |
COVER UPPER FRONT
|
7.9200(lbs); 3.600
|
| 040. |
0112350828
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 050. |
0112351035
|
[6] |
BOLT
|
0.0550(lbs); 0.025
|
| 060. |
0112350845
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 070. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 080. |
6771112420
|
[1] |
GAUGE OIL
|
0.0308(lbs); 0.014
|
| 090. |
6659111460
|
[1] |
CAP
|
0.0352(lbs); 0.016
|
| 100. |
0471300400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
6620412450
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 120. |
6721112500
|
[1] |
ASSY COVER REAR
|
9.5040(lbs); 4.320
|
| 130. |
6659136710
|
[1] |
BUSH
|
0.1078(lbs); 0.049
|
| 140. |
6659136720
|
[1] |
BUSH
|
0.0968(lbs); 0.044
|
| 150. |
0112351040
|
[3] |
BOLT
|
0.0660(lbs); 0.030
|
| 160. |
0112351035
|
[6] |
BOLT
|
0.0550(lbs); 0.025
|
| 170. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 180. |
6661112520
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 190. |
6659111350
|
[1] |
BREATHER
|
0.0044(lbs); 0.002
|
| 190. |
6715612533
|
[1] |
BREATHER
|
0.0044(lbs); 0.002
|
