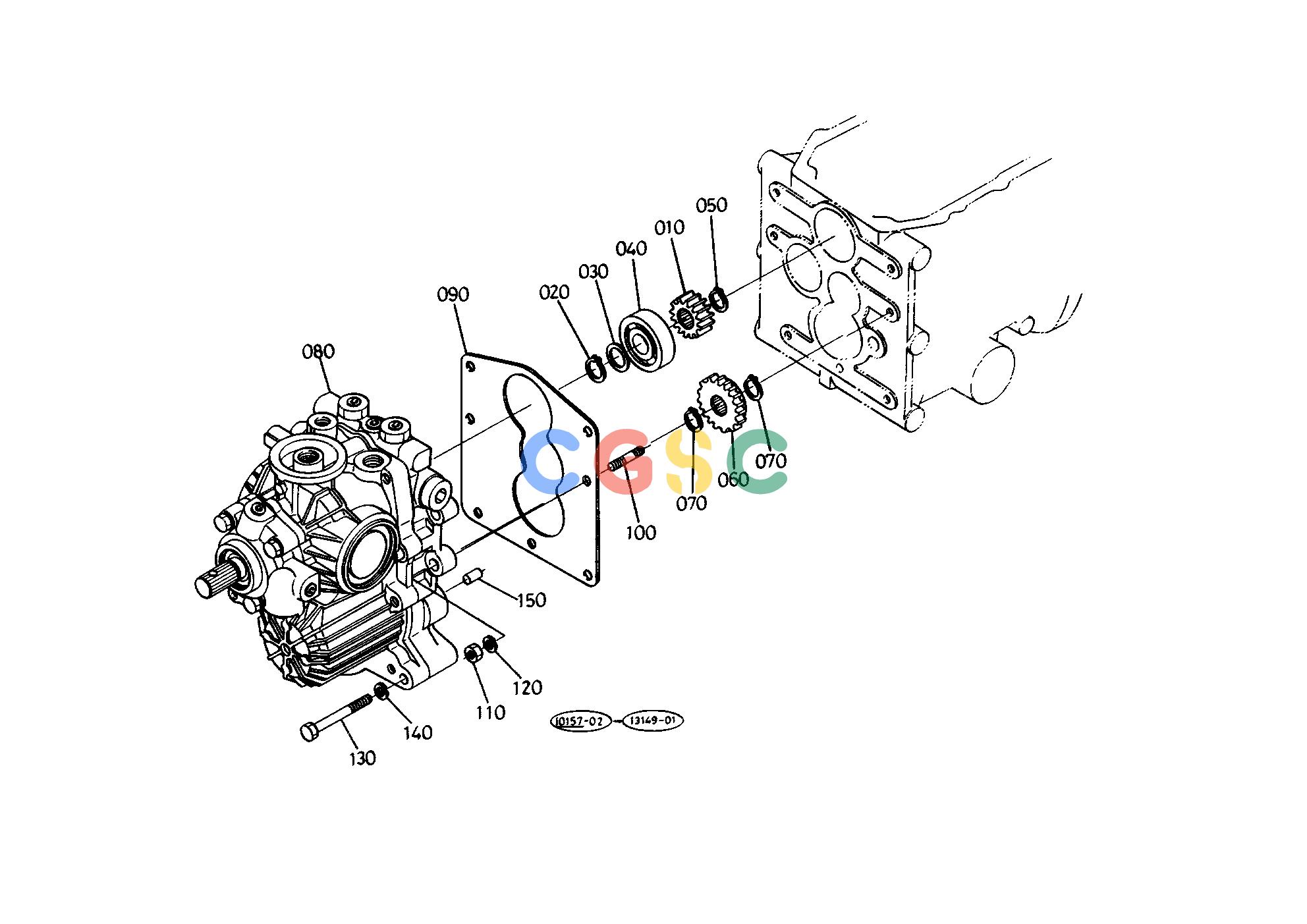

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620414120
|
[1] |
GEAR
|
0.1870(lbs); 0.085
|
| 020. |
0461200200
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 030. |
6671114880
|
[1] |
COLLAR BACK SHAFT
|
0.0000(lbs); 0.000
|
| 040. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 050. |
0461200190
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
6620414152
|
[1] |
GEAR
|
0.3300(lbs); 0.150
|
| 070. |
0461200200
|
[2] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 080. |
6641511600
|
[1] |
ASSY HST
|
31.4600(lbs); 14.300
|
| 080. |
H664010600
|
[1] |
ASSY HST
|
31.4600(lbs); 14.300
|
| 090. |
6620436180
|
[1] |
GASKET HST
|
0.0000(lbs); 0.000
|
| 100. |
0155551035
|
[4] |
STUD
|
0.0638(lbs); 0.029
|
| 110. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 130. |
0115351075
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 140. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 150. |
0501200816
|
[1] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
