神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-002) - CYLINDER BLOCK 020-110K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
690 次

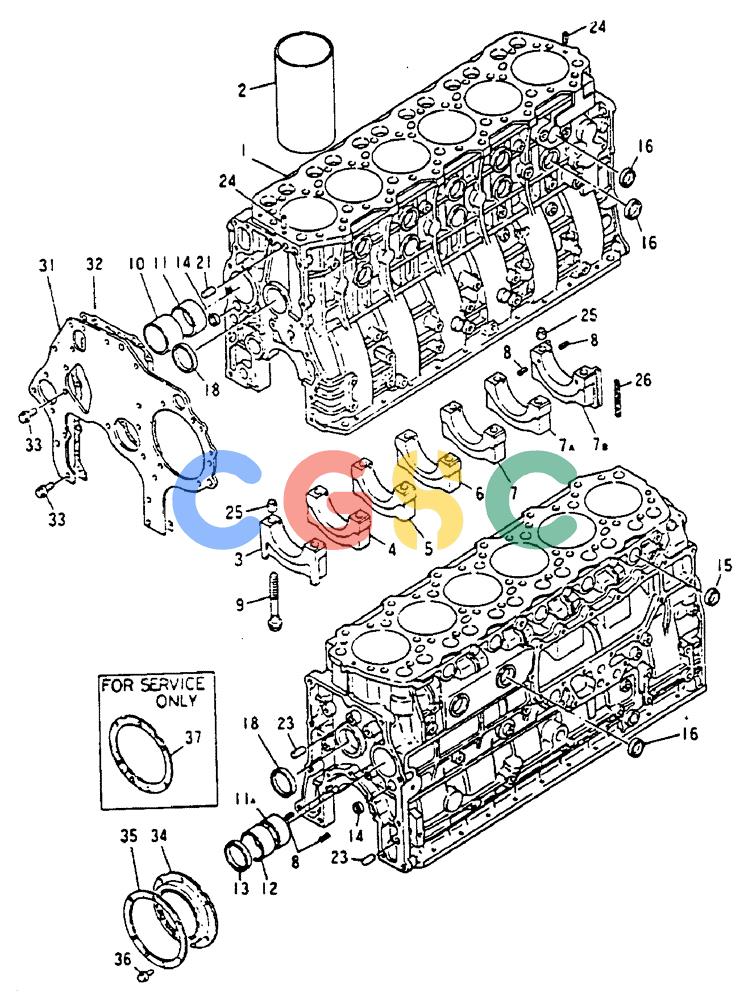

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE CF GN450-800K |
| 2. | VAME011626 | [6] | SLEEVE CYLINDER | KOB |
| . . | VAME011627 | [1] | SLEEVE CYLINDER | KOBOS 0.50 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG N0. 1 CF GN450-800K |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 2 CF GN450-800K |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 3 CF GN450-800K |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 4 CF GN450-800K |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 5 CF GN450-800K |
| 7A. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 6 CF GN450-800K |
| 7B. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, BRG NO. 7 R-D3 CF GN450-800K |
| 8. | VAMH012041 | [6] | PIN | KOBSPG 4 X 10 |
| 9. | VAME011519 | [14] | SCREW | KOB14 X 102 |
| 10. | VAME013116 | [1] | BALL BEARING | KOBSHAFT NO. 1 |
| 11. | VAME011593 | [1] | BUSHING | KOBNO. 2 |
| 11A. | VAME081526 | [1] | BEARING LINER | KOBSCREW NO. 3 |
| 12. | VAME011594 | [1] | BUSHING | KOBNO .4 |
| 13. | VAMH037751 | [1] | CAP | KOBCAP, SEALING 57 |
| 14. | VAMS666136 | [2] | PLUG | KOBCAP, SEALING 22 |
| 15. | VAMS666138 | [5] | CAP | KOBCAP, SEALING 28 |
| 16. | VAMS666140 | [12] | PLUG | KOBCAP, SEALING 35 |
| 16. | VAMH037754 | [2] | CAP | KOBCAP, SEALING 50 |
| 21. | VAMF472406 | [1] | PIN | KOBPIN, DOWEL 12 FOR FR |
| 23. | VAMH007010 | [2] | PIN | KOBPIN, DOWEL 12 FOR RE |
| 24. | VAMF472587 | [2] | PIN | KOBPIN, DOWEL 6 X 16 FOR CYL HEAD |
| 25. | VAME011618 | [4] | PIN | KOBDOWEL, FOR BRG CAP |
| 26. | VAME011660 | [2] | SEAL | KOBSEAL, SIDE |
| 31. | VAME013658 | [1] | PLATE | KOBFR |
| 32. | VAME013659 | [1] | GASKET, CYLI FR PLATE | GASKET, CYLI FR PLATE |
| 33. | VAMF140223 | [6] | BOLT | KOBBOLT, FLANGE 8 X 16 |
| 34. | VAME088536 | [1] | OIL SEAL | KOBRE |
| 35. | VAME011707 | [1] | SWASH PLATE | KOB |
| 36. | VAMF140203 | [7] | BOLT | KOBBOLT, FLANGE 6 X 12 |
| 37. | VAME011642 | [1] | GASKET | KOBRE OILSEAL FOR SERVICE ONLY Superseded by part number: 77268912, VAME220851 |
