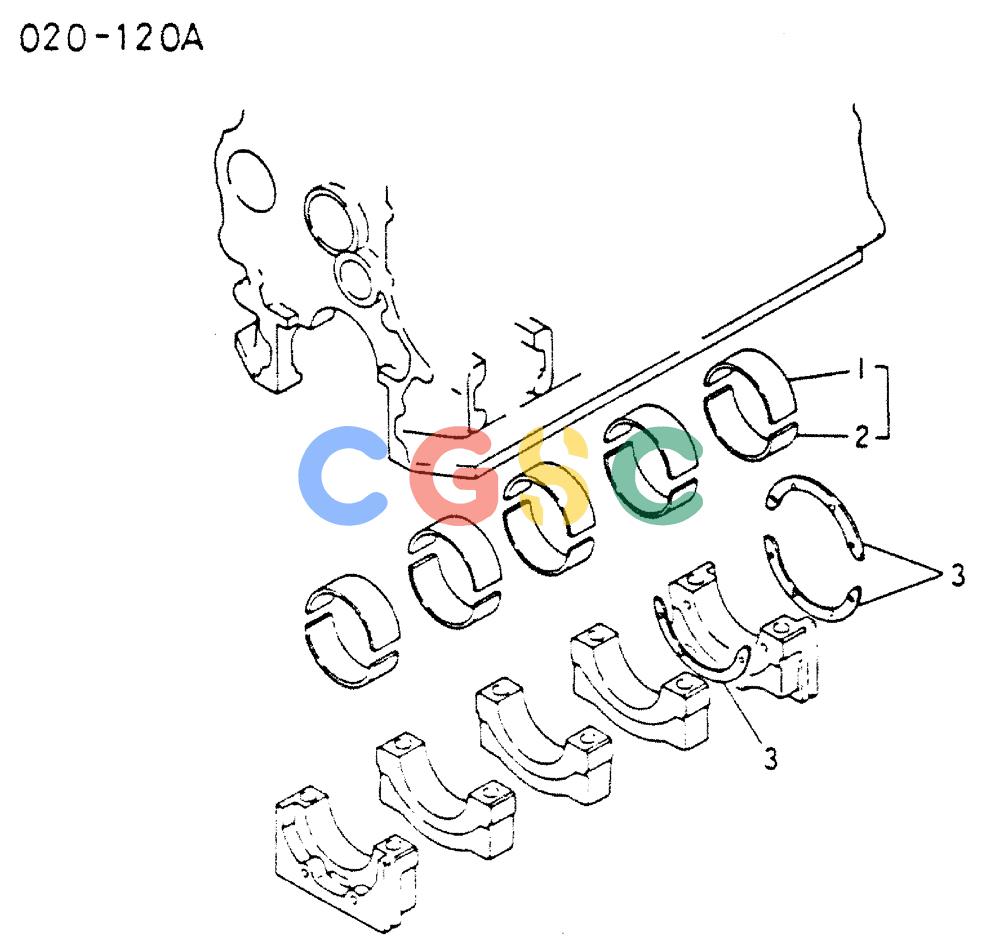

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-003) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999711 | [1] | SET OF CONN ROD BRGS U/S | KOBMAIN SET, ONE MODEL STD |
| . . | VAME999712 | [1] | BEARING | KOBUS 0.25 |
| . . | VAME999713 | [1] | BEARING | KOBUS 0.50 |
| . . | VAME999714 | [1] | BEARING | KOBUS 0.75 |
| . . | VAME999715 | [1] | BEARING | KOBUS 1.00 |
| 1. | VAME013263 | [7] | BEARING, MAIN UPPER STD ME013263, Start Serial: 9002- | |
| . . | VAME011550 | [7] | STD ME 011550, Serial Range: --9001 | |
| . . | VAME013263 | [7] | STD M5 ONLY ME 013263 | |
| 2. | VAME013268 | [7] | BEARING, MAIN LOWER STD ME 013268, Start Serial: 9002- | |
| . . | VAME011555 | [7] | STD ME011555, Serial Range: --9001 | |
| . . | VAME013268 | [7] | STD M5 ONLY ME013268 | |
| 3. | VAME013644 | [3] | PLATE | KOBTHRUST STD, Start Serial: 9002- |
| . . | VAME020328 | [3] | THRUST PLATE | KOBSTD, Serial Range: --9001 Superseded by part number: VAME013564 |
| . . | VAME013644 | [3] | PLATE | KOBSTD M5 ONLY |
| . . | VAME013645 | [1] | PLATE | KOBOS 0.15, Start Serial: 9002- |
| . . | VAME020329 | [1] | THRUST PLATE O.S 0.1 OS 0.15, Serial Range: --9001 | THRUST PLATE O.S 0.1 OS 0.15, Serial Range: --9001 |
| . . | VAME013646 | [1] | PLATE | KOBOS 0.30, Start Serial: 9002- |
| . . | VAME020330 | [1] | PLATE THRUST O.S. OS 0.30, Serial Range: --9001 | PLATE THRUST O.S. OS 0.30, Serial Range: --9001 |
| . . | VAME013647 | [1] | THRUST PLATE | KOBOS 0.45, Start Serial: 9002- |
| . . | VAME020331 | [1] | METAL 045 OS 0.45, Serial Range: --9001 | METAL 045 OS 0.45, Serial Range: --9001 |
