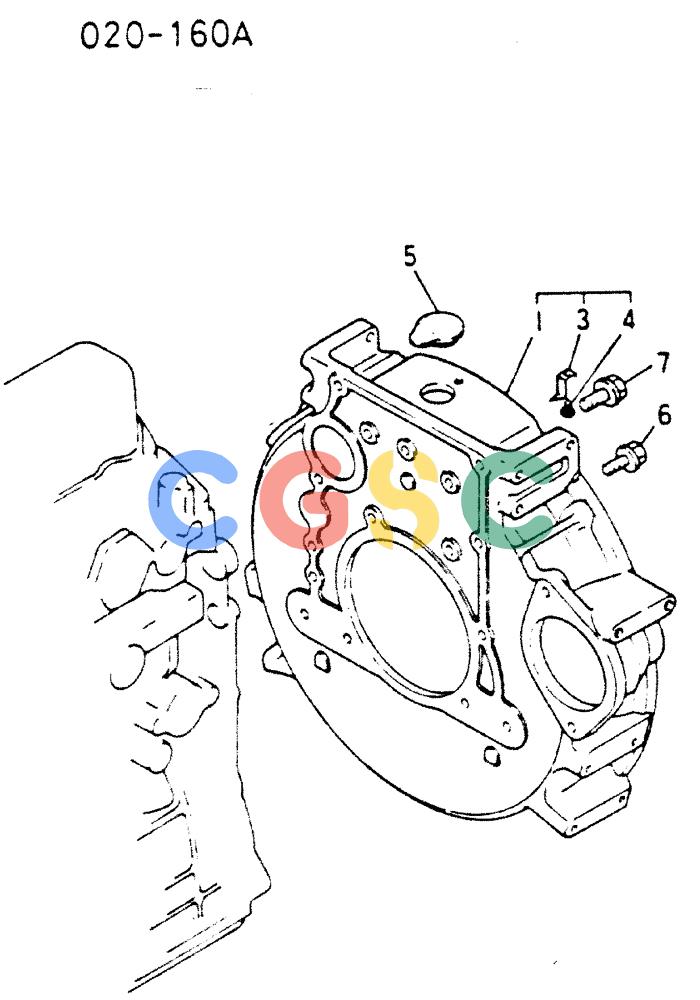

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-006) - FLYWHEEL HOUSING 020-160A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
750 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME088458 | [1] | HOUSING | KOBM16 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING, F/W |
| 3. | VAME031062 | [1] | POINTER | KOB |
| 4. | VAMF200049 | [1] | SCREW | KOBSCREW, MACHINE 5 X 8 |
| 5. | VAME020359 | [1] | PLUG | KOBDUST Superseded by part number: VAME609555 |
| 6. | VAMH000969 | [12] | BOLT,FLANGE (10X28) BOLT, FLANGE 10 X 28 | BOLT,FLANGE (10X28) BOLT, FLANGE 10 X 28 |
| 7. | VAMH000531 | [2] | BOLT BOLT, FLANGE 12 X 35 | BOLT BOLT, FLANGE 12 X 35 |
