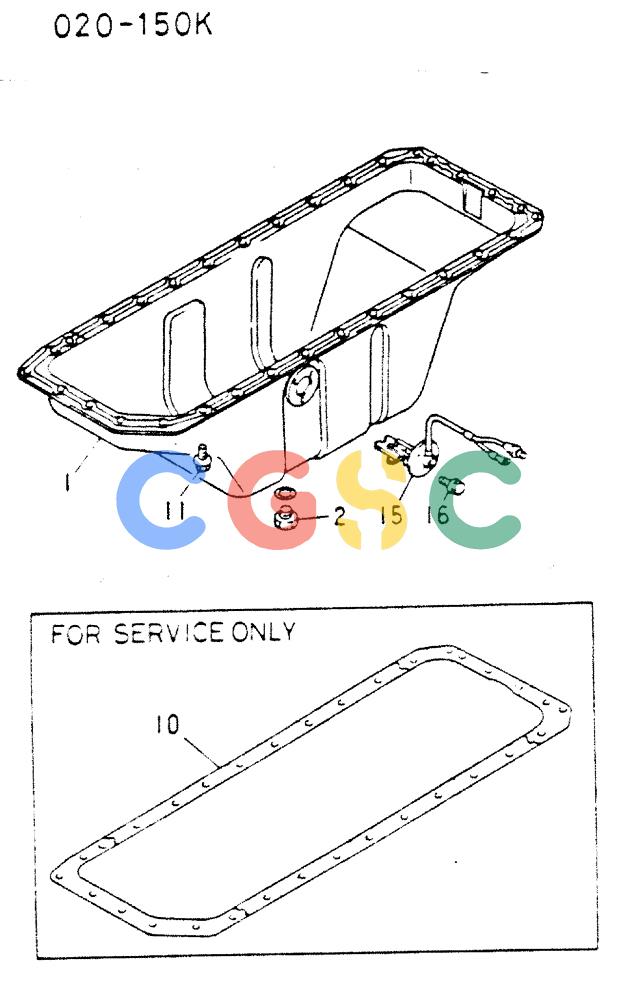

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-005) - OIL PAN 020-150K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088569 | [1] | ENGINE OIL PAN | KOB(Refer to SM - Liquid Gasket Used Between Pan & Block) |
| 2. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, DRAIN |
| . . | VAMH035018 | [1] | GASKET | KOBGASKET 18 |
| 10. | VAME084656 | [1] | GASKET | KOBOIL PAN FOR SERVICE ONLY Superseded by part number: VAME220862 |
| 11. | VAMF140224 | [32] | BOLT | KOBBOLT, FLANGE 8 X 18, Start Serial: 9002- |
| . . | VAMF140223 | [32] | BOLT | KOBBOLT, FLANGE 8 X 16, Serial Range: --9001 |
| 15. | VAMC840577 | [1] | SWITCH | KOBOIL LEVEL |
| 16. | VAMF140002 | [3] | SCREW | KOBBOLT, FLANGE 6 X 10 |
