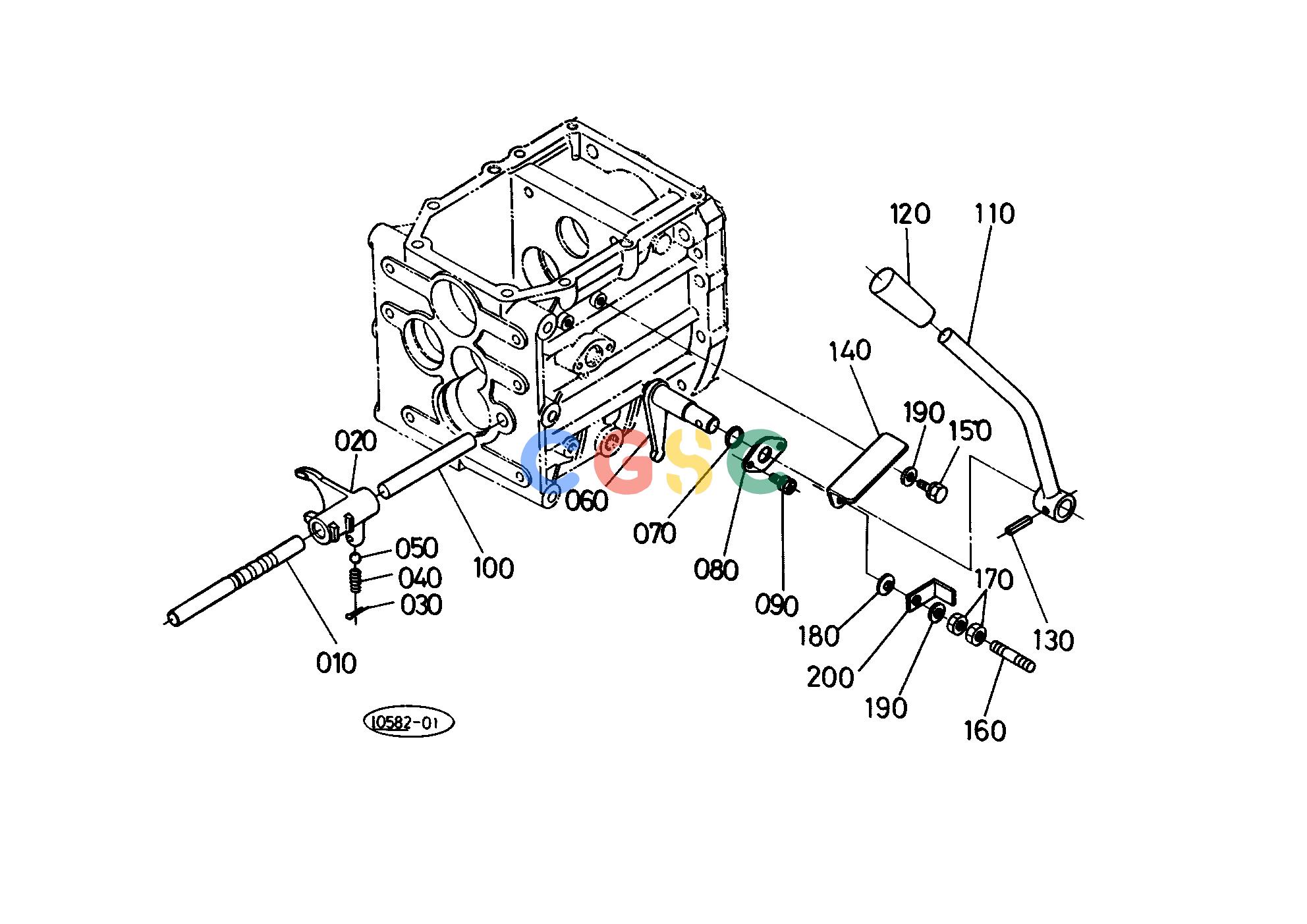

久保田零件查询T05400 PTO GEAR SHIFT LEVER SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620418610
|
[1] |
SHAFT FORK
|
0.4620(lbs); 0.210
|
| 020. |
6659118216
|
[1] |
FORK SHIFT
|
0.4180(lbs); 0.190
|
| 030. |
0551150322
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 040. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
6659118220
|
[1] |
ARM
|
0.2640(lbs); 0.120
|
| 070. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
6659118180
|
[1] |
RETAINER FORK ROD
|
0.0264(lbs); 0.012
|
| 090. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 100. |
6661119310
|
[1] |
RETAINER ROD
|
0.2838(lbs); 0.129
|
| 110. |
6661142710
|
[1] |
LEVER SHIFT
|
0.5214(lbs); 0.237
|
| 120. |
5420123270
|
[1] |
GRIP
|
0.0440(lbs); 0.020
|
| 130. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 140. |
6620442170
|
[1] |
GUIDE SPEED CHANGE
|
0.0880(lbs); 0.040
|
| 150. |
0120250814
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 160. |
0151350825
|
[1] |
STUD
|
0.0660(lbs); 0.030
|
| 170. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 180. |
6611651530
|
[1] |
SPRING PLATE
|
0.0066(lbs); 0.003
|
| 190. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 200. |
6620442180
|
[1] |
STOPPER
|
0.0660(lbs); 0.030
|
