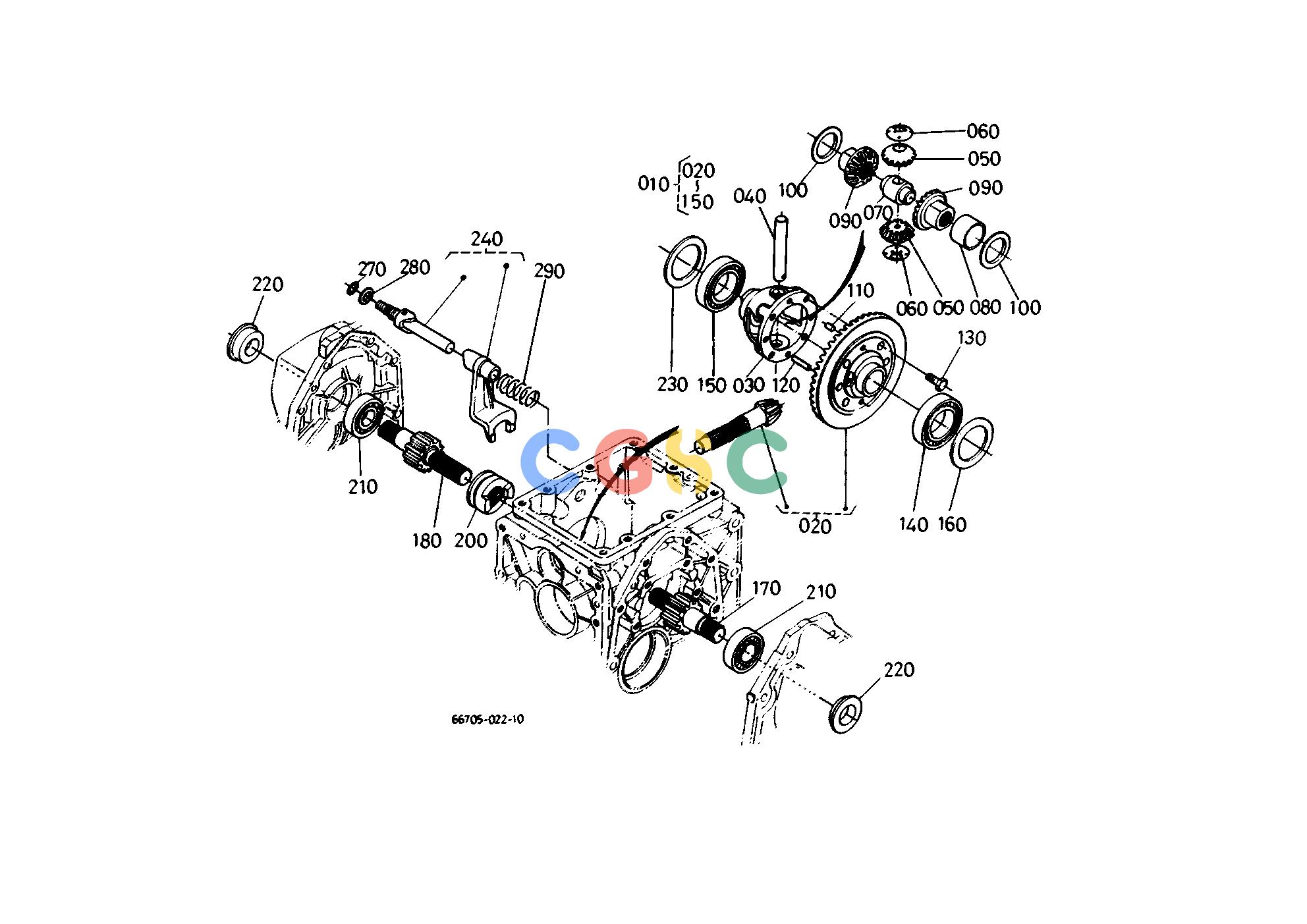

久保田零件查询T05500 REAR DIFFERENTIAL REAR AXLEEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 418 次

Pos.	Part No	Qty	Parts name	Comments
010.	6620481303	[1]	ASSY DIFF REAR	9.0200(lbs); 4.100
020.	6620482714	[1]	ASSY GEAR BEVEL	6-37T 3.3000(lbs); 1.500
030.	6731114973	[1]	CASE DIFFERENTIAL	1.5400(lbs); 0.700
040.	6771114912	[1]	SHAFT DIFF.PINION	0.3080(lbs); 0.140
050.	6771114920	[2]	PINION DIFF.	12T 0.2420(lbs); 0.110
060.	6731114980	[2]	COLLAR PINION THRUST	0.0132(lbs); 0.006
070.	6659114860	[1]	COLLAR THRUST	0.2244(lbs); 0.102
080.	6661114950	[1]	BUSH	0.0704(lbs); 0.032
090.	6721115150	[2]	GEAR DIFF.SIDE	14T 0.3476(lbs); 0.158
100.	6721115160	[1]	SHIM	1.0MM 0.0220(lbs); 0.010
100.	6721115170	[1]	SHIM	0.8MM 0.0176(lbs); 0.008
100.	6721115180	[1]	SHIM	1.2MM 0.0220(lbs); 0.010
110.	6659114792	[1]	PIN KNOCK	0.0066(lbs); 0.003
120.	6659114783	[1]	PIN STRAIGHT	0.0220(lbs); 0.010
130.	6781056680	[6]	BOLT UBS	0.0286(lbs); 0.013
140.	0810106009	[1]	BEARING BALL	0.4840(lbs); 0.220
150.	0810106010	[1]	BEARING BALL	0.5764(lbs); 0.262
160.	6659114980	[1]	SHIM DIFF.SIDE	0.5MM 0.0110(lbs); 0.005
160.	6659114990	[1]	SHIM DIFF.SIDE	0.2MM 0.0044(lbs); 0.002
170.	6661115110	[1]	SHAFT DIFF.GEAR LH	1.2760(lbs); 0.580
180.	6661115120	[1]	SHAFT DIFF.GEAR RH	1.4960(lbs); 0.680
200.	6661115130	[1]	CLUTCH DIFF.LOCK	0.4400(lbs); 0.200
210.	0810106305	[2]	BEARING BALL	0.5060(lbs); 0.230
220.	6661114940	[2]	SEAL OIL	0.0440(lbs); 0.020
230.	6661115140	[1]	SHIM DIFF.SIDE	0.5MM 0.0132(lbs); 0.006
230.	6661115150	[1]	SHIM DIFF.SIDE	0.2MM 0.0044(lbs); 0.002
240.	6661119100	[1]	ASSY FORK DIFF.LOCK	0.9240(lbs); 0.420
270.	0481110120	[1]	O RING	0.0022(lbs); 0.001
280.	6659118340	[2]	SHIM	0.0022(lbs); 0.001
290.	6659118320	[1]	SPRING	0.0440(lbs); 0.020
