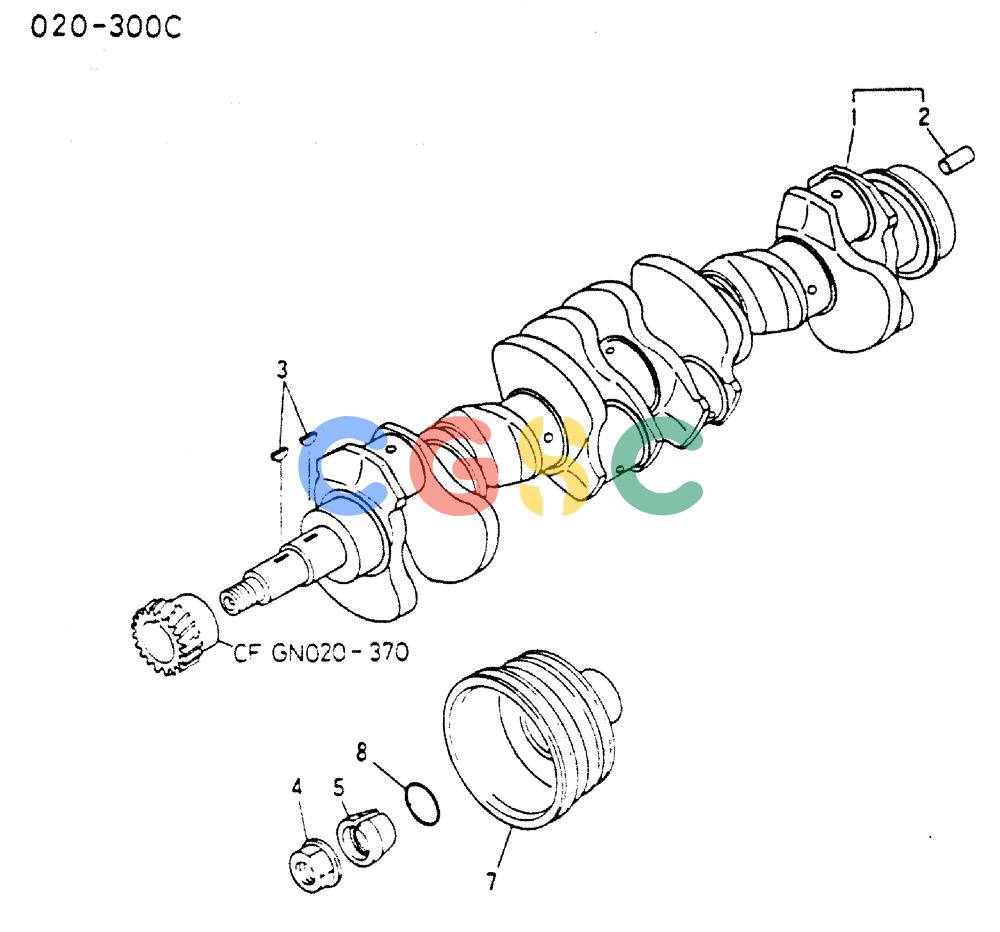

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-015) - CRANKSHAFT & PULLEY 020-300C Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME082505 | [1] | CRANKSHAFT | KOB Superseded by part number: VAME300137 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMF472407 | [1] | PIN | KOBPIN, DOWEL 14 |
| 3. | VAMS476137 | [2] | WOODRUFF KEY | KOBKEY, WOODRUFF 7 X 22 Superseded by part number: VAF287007022 |
| 4. | VAMH004045 | [1] | NUT | KOBNUT 24 |
| 5. | VAME023769 | [1] | ROCKER ARM COTTER | KOB |
| 7. | VAME088582 | [1] | PULLEY | KOBCRANKSHAFT D160 A X 2 D170 BX1 |
| 8. | VAMH035180 | [1] | O-RING | KOBO-RING 34 |
