纽荷兰零件查询(65B) - MOTORGRADERS (A1.04[001]) - DAMPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
211 次

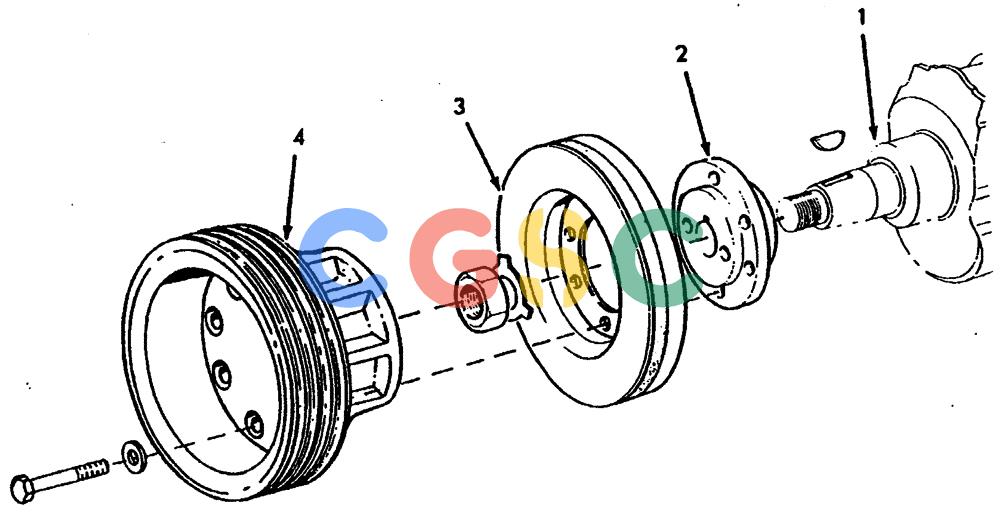

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ------------------- | [1] | CRANKSHAFT 1 C 16 | |
| 2. | 4655847 | [1] | HUB | TOR |
| . . | 4655844 | [1] | KEY | TORWOODRUFF |
| . . | 4600190 | [1] | LOCK WASHER | TORLOCKPLATE |
| . . | 4600189 | [1] | NUT,Hex, M30, 1.5 Pitch, 18mm High | TOR |
| 3. | 4728716 | [1] | DAMPER | MOD |
| 4. | 4738046 | [1] | PULLEY | HIT |
| . . | 9602206 | [6] | SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8 | BHBCAPSCREW,M10X1 .25X65MM |
| . . | 11198371 | [6] | BELLEVILLE WASHER,Belleville, M10.5 | MKTWASHER,M10 Superseded by part number: 11198374 |
