神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-018) - VALVE GEAR TRAIN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
388 次

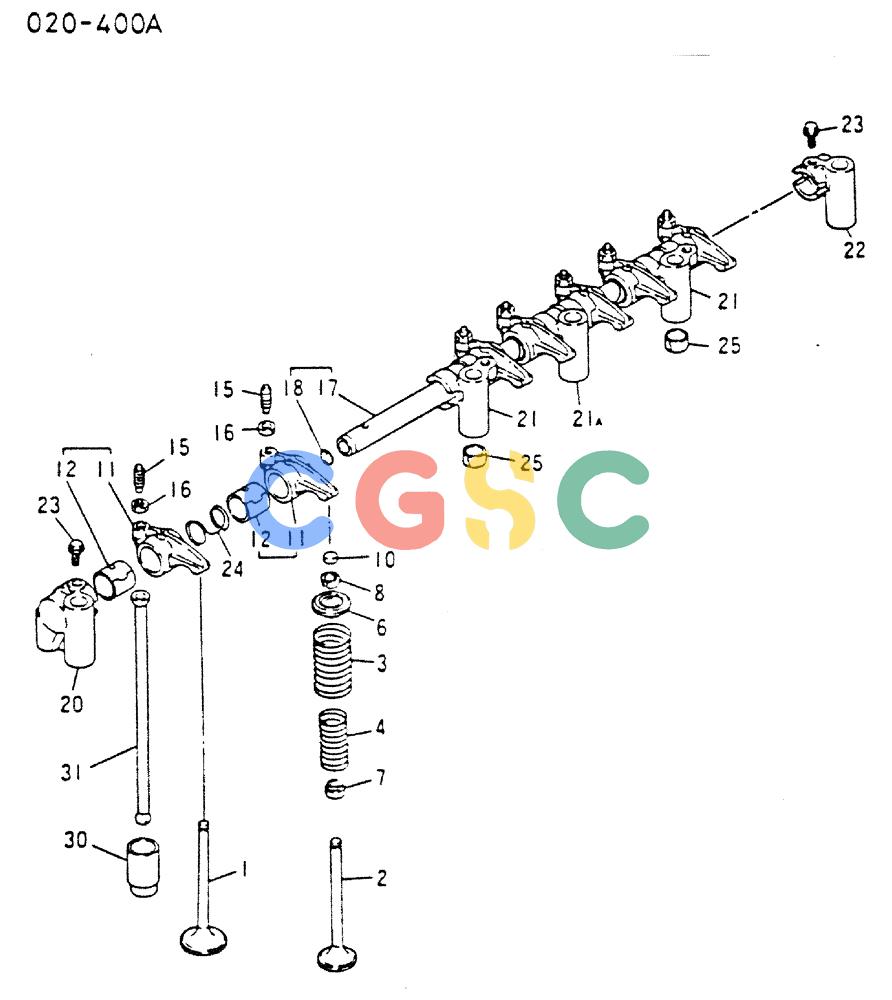

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME013810 | [6] | VALVE | KOBINLET, Start Serial: 8912- |
| . . | VAME011265 | [6] | VALVE | KOB, Serial Range: --8911 Superseded by part number: VAME013810 |
| 2. | VAME013832 | [6] | VALVE | KOBEXH, Start Serial: 8912- Superseded by part number: VAME220217 |
| . . | VAME011266 | [6] | VALVE | KOB, Serial Range: --8911 Superseded by part number: VAME013832 |
| 3. | VAME029101 | [12] | VALVE SPRING | KOBOUTER |
| 4. | VAME029102 | [12] | VALVE SPRING | KOBINNER |
| 6. | VAME011268 | [12] | RETAINER | KOBUPPER |
| 7. | VAME032754 | [12] | SEAL | KOB, Start Serial: 8807- Superseded by part number: VAME074696 |
| . . | VAME024108 | [12] | STEM SEAL VALVE, Serial Range: --8806 | STEM SEAL VALVE, Serial Range: --8806 |
| 8. | VAME011227 | [24] | VALVE | KOBCOTTER AVAILABLE IN SET WITH PAIR |
| 10. | VAME020244 | [12] | CAP | KOBVALVE Superseded by part number: VAME017459 |
| 11-12. | VAME011292 | [12] | ROCKER | KOBASSY |
| 11. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 12. | VAME011254 | [12] | BUSHING | KOBROCKER |
| 15. | VAMH001002 | [12] | SCREW | KOBSCREW, ADJUSTING 8 X 32 Superseded by part number: VAME220221 |
| 16. | VAMF430841 | [12] | NUT | KOBNUT 8 |
| 7-18. | VAME081700 | [1] | SHAFT ASSY. | KOBROCKER, Start Serial: 9010- |
| . . | VAME081513 | [1] | ROCKER ARM | KOB, Serial Range: --9009 |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, ROCKER |
| 18. | VAMF665502 | [2] | PLUG | KOBPLUG, EXPANSION 12 |
| 20. | VAME011307 | [1] | BRACKET | KOBROCKER SHAFT, FR, Start Serial: 9010- |
| . . | VAME011257 | [1] | BRACKET | KOBBRACKET ROCKER SHAFT, FR, Serial Range: --9009 |
| 21. | VAME011258 | [3] | BRACKET | KOBROCKER SHAFT, 2, 4, 6 |
| 21A. | VAME011259 | [2] | BRACKET | KOBROCKER SHAFT, 3, 5 |
| 22. | VAME011308 | [1] | BRACKET | KOBROCKER SHAFT, RE, Start Serial: 9010- |
| . . | VAME011260 | [1] | BRACKET | KOBBRACKET, ROCKER SHAFT, RE, Serial Range: --9009 |
| 23. | VAMF140003 | [2] | BOLT | KOBBOLT, FLANGE 6 X 12 |
| 24. | VAME011261 | [6] | SPRING | KOBROCKER SHAFT |
| 25. | VAMH007012 | [3] | PIN | KOBPIN, SPG 17 X 10 |
| 30. | VAME013857 | [12] | TAPPET | KOB, Start Serial: 8912- |
| . . | VAME011249 | [12] | TAPPET | KOB, Serial Range: --8911 Superseded by part number: VAME013857 |
| 31. | VAME011267 | [12] | PUSH ROD | KOB Superseded by part number: VAME012991 |
