神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-017) - TIMING GEAR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
724 次

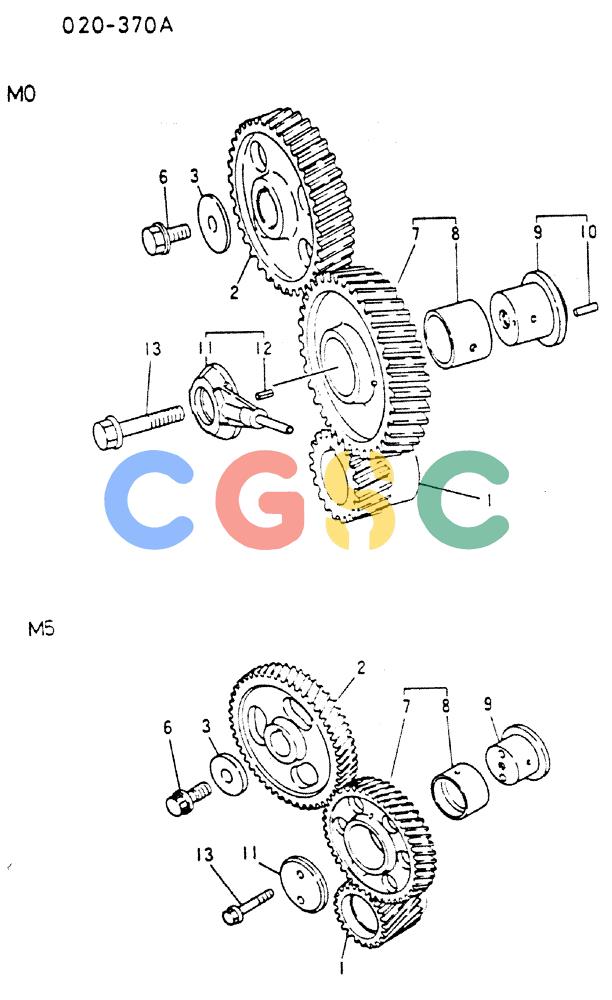

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012729 | [1] | GEAR | KOBZ=23 M0 ONLY |
| . . | VAME013128 | [1] | DRIVING GEAR | KOBZ=31 M5 ONLY |
| 2. | VAME012732 | [1] | DRIVEN GEAR | KOBZ=46 M0 ONLY |
| . . | VAME013182 | [1] | CAM | KOBGEAR SHAFT Z=62 M5 ONLY |
| 3. | VAMH005020 | [1] | PLATE | KOBWASHER 44 M0 ONLY |
| . . | VAME005123 | [1] | WASHER 44 M5 ONLY | |
| 6. | VAMF140458 | [1] | BOLT | KOBBOLT, FLANGE 10 X 20 M0 ONLY |
| . . | VAMH000377 | [1] | BOLT | KOBBOLT, FLANGE 14 X 33 M5 ONLY |
| 7-8. | VAME082547 | [1] | GEAR SET | KOBIDLER M0 ONLY, Start Serial: 9002- |
| . . | VAME082515 | [1] | GEAR ASSY,IDLER M0 ONLY, Serial Range: --9001 | GEAR ASSY,IDLER M0 ONLY, Serial Range: --9001 |
| . . | VAME013129 | [1] | IDLER GEAR | KOBM5 ONLY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, IDLER Z=47 M0 ONLY |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, IDLER Z=63 M5 ONLY |
| 8. | VAME082517 | [1] | BUSHING | KOBM0 ONLY |
| . . | VAME013074 | [1] | BUSHING | KOBIDLER M5 ONLY |
| 9-10. | VAME082520 | [1] | IDLER | KOBM0 ONLY |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, IDLER M0 ONLY |
| . . | VAME013126 | [1] | SHAFT, IDLER M5 ONLY | |
| 10. | VAMF472571 | [1] | PIN | KOBPIN, SPG 5 X 20 M0 ONLY |
| 11-12. | VAME012747 | [1] | JET | KOBM0 ONLY |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONJET, OIL M0 ONLY |
| . . | VAME013127 | [1] | PLATE, THRUST M5 ONLY | |
| 12. | VAMH012041 | [1] | PIN | KOBPIN, SPG M0 ONLY |
| 13. | VAMH001411 | [1] | SCREW | KOBBOLT, FLANGE 10 X 68 M0 ONLY |
| . . | VAMF140435 | [1] | BOLT | KOBBOLT, FLANGE 8 X 50 M5 ONLY |
