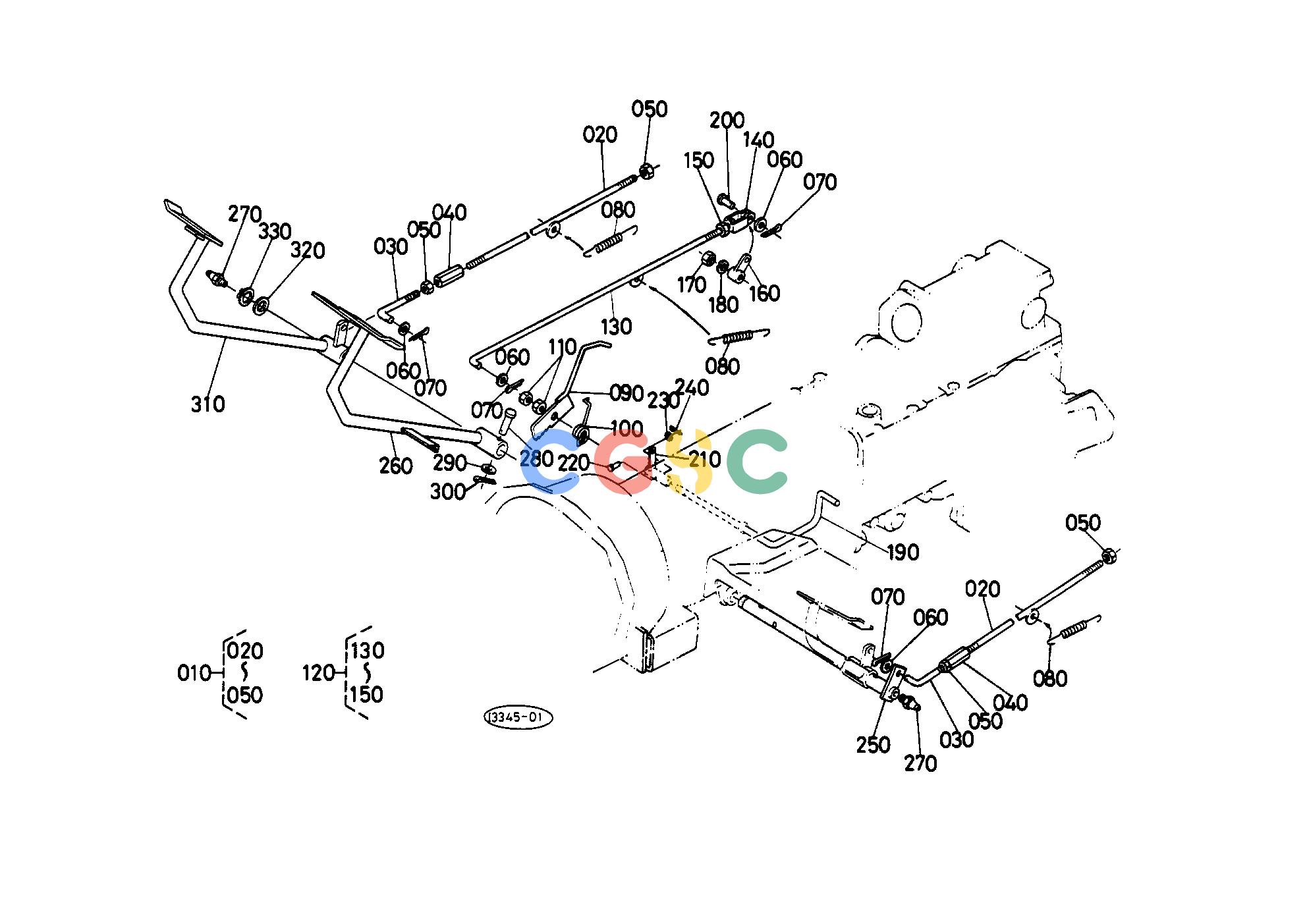

久保田零件查询T06000 BRAKE ROD/PEDAL BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620442800
|
[2] |
ASSY ROD BRAKE
|
0.6820(lbs); 0.310
|
| 020. |
6620442810
|
[2] |
ROD BRAKE
|
0.0000(lbs); 0.000
|
| 020. |
6620442813
|
[2] |
ROD BRAKE
|
0.5060(lbs); 0.230
|
| 030. |
6662143250
|
[2] |
ROD BRAKE FRONT
|
0.0528(lbs); 0.024
|
| 040. |
6659142410
|
[2] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 050. |
0211250080
|
[4] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
0401250080
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0551150318
|
[4] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
6659143190
|
[3] |
SPRING BRAKE RETURN
|
0.0968(lbs); 0.044
|
| 090. |
6620442850
|
[1] |
LEVER BRAKE LOCK
|
0.2640(lbs); 0.120
|
| 100. |
6620442840
|
[1] |
SPRING BRAKE LOCK
|
0.0132(lbs); 0.006
|
| 110. |
0217250120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 120. |
6620442820
|
[1] |
ASSY ROD DIFF.LOCK
|
0.6864(lbs); 0.312
|
| 130. |
6620442860
|
[1] |
ROD DIFF.LOCK
|
0.6380(lbs); 0.290
|
| 140. |
6375342350
|
[1] |
U JOINT
|
0.0770(lbs); 0.035
|
| 150. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 160. |
6659143170
|
[1] |
LEVER DIFF.LOCK
|
0.1100(lbs); 0.050
|
| 170. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 180. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 190. |
6620442870
|
[1] |
SHAFT DIFF LOCK
|
1.5730(lbs); 0.715
|
| 200. |
0512250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 210. |
6620442880
|
[1] |
LEVER DIFF.LOCK
|
0.2640(lbs); 0.120
|
| 220. |
6661114120
|
[1] |
PIN JOINT
|
0.0000(lbs); 0.000
|
| 230. |
0401250050
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 240. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 250. |
6620442910
|
[1] |
SHAFT BRAKE PEDAL
|
3.5200(lbs); 1.600
|
| 260. |
6621342920
|
[1] |
PEDAL BRAKE LH
|
3.6300(lbs); 1.650
|
| 270. |
0661310010
|
[2] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 280. |
0511250840
|
[1] |
PIN JOINT
|
0.0374(lbs); 0.017
|
| 290. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 300. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 310. |
6621342930
|
[1] |
PEDAL BRAKE RH
|
3.3000(lbs); 1.500
|
| 320. |
6659143233
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 330. |
0461200240
|
[1] |
CIR CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
