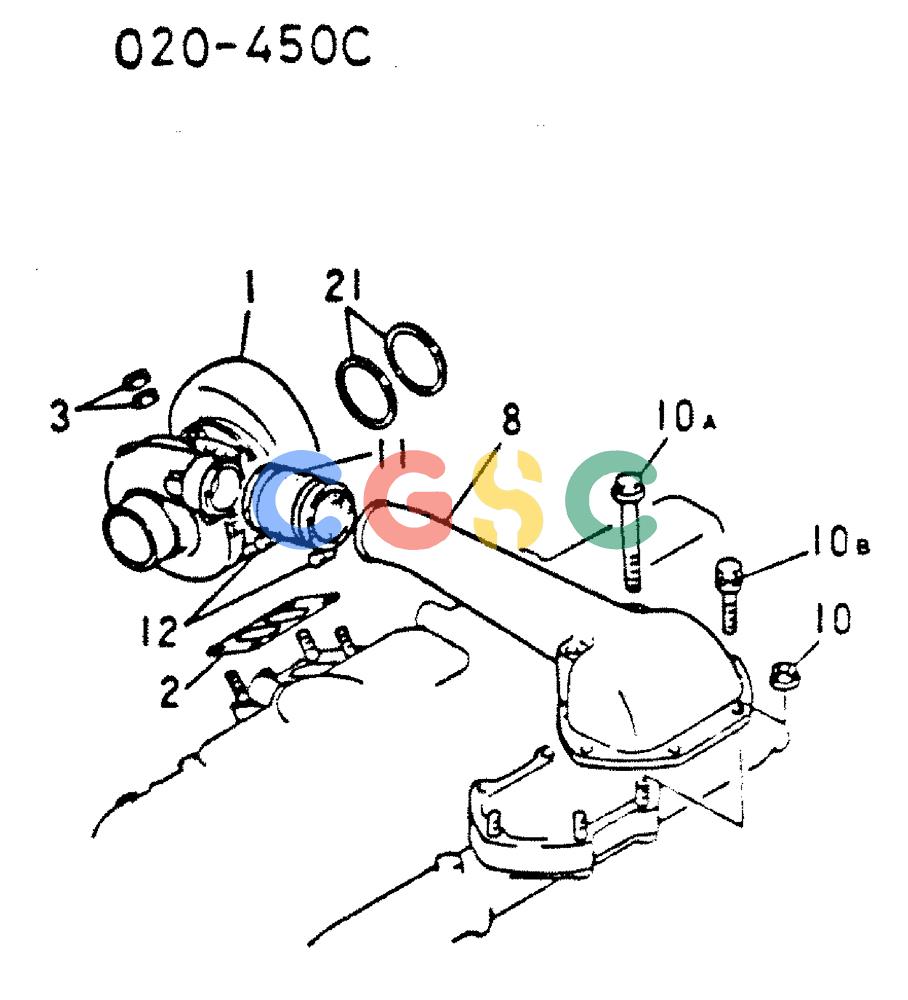

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-021) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088699 | [1] | TURBOCHARGER | KOBCHARGER TA31 CF GN020-451B, Start Serial: 9105- Superseded by part number: VAME088752 |
| . . | VAME088488 | [1] | TURBOCHARGER | KOBCHARGER TA31 CF GN020-451B, Serial Range: --9104 |
| 2. | VAME088489 | [1] | GASKET | KOB |
| 3. | VAMH004110 | [8] | NUT | KOBNUT 10 Superseded by part number: 134957A1 |
| 8. | VAME088473 | [1] | PIPE | KOBAIR INLET |
| 10. | VAMF434104 | [3] | NUT | KOBNUT, FLANGE 8 |
| 10A. | VAMH000820 | [2] | BOLT | KOBBOLT, FLANGE 8 X 105 |
| 10B. | VAMF243663 | [1] | BOLT | KOBBOLT, W/WSR 8 X 60 |
| 11. | VAME053453 | [1] | HOSE | KOBRUBBER L=65 |
| 12. | VAMH021373 | [2] | CLAMP | KOBCLAMP, BAND 50-7 0, Start Serial: 9001- |
| . . | VAMH021321 | [2] | CLAMP | KOB58-78, Serial Range: --8912 Superseded by part number: 134981A1 |
| 21. | VAME088490 | [2] | SEAL RETAINER | KOBRING |
