纽荷兰零件查询(65B) - MOTORGRADERS (A1.06[001]) - TIMING CHAINS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
393 次

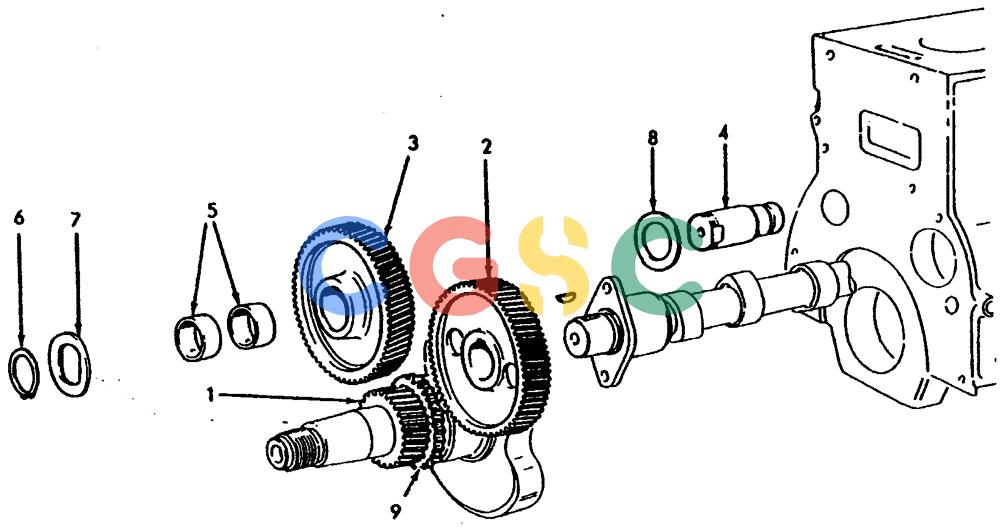

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4680071 | [1] | DRIVING GEAR | MODGEAR |
| . . | 4665844 | [1] | KEY | |
| 2. | 4607511 | [1] | DRIVEN GEAR | MODGEAR (D-10) |
| . . | 10205910 | [1] | KEY,5 x 9mm | TOR5X9 Superseded by part number: 17221220 |
| 3. | MOD4607743 | [1] | GEAR | MOD |
| 4. | 4748800 | [1] | PIN | MODSHAFT Superseded by part number: 4751135 |
| . . | 4751135 | [1] | PIN | MODSHAFT, +0.3MM |
| . . | 14328101 | [1] | PLUG,M8, Tapered | TOR |
| 5. | 4599807 | [2] | BUSHING | MOD Superseded by part number: 4670935 |
| 6. | 4600329 | [1] | SNAP RING,29.60mm ID | TORRING |
| 7. | 4667450 | [1] | WASHER,32.2mm ID x 50mm OD x 3mm Thk | TOR |
| 8. | 4667451 | [1] | WASHER | MOD |
| 9. | 4680577 | [1] | DRIVING GEAR | MODGEAR |
