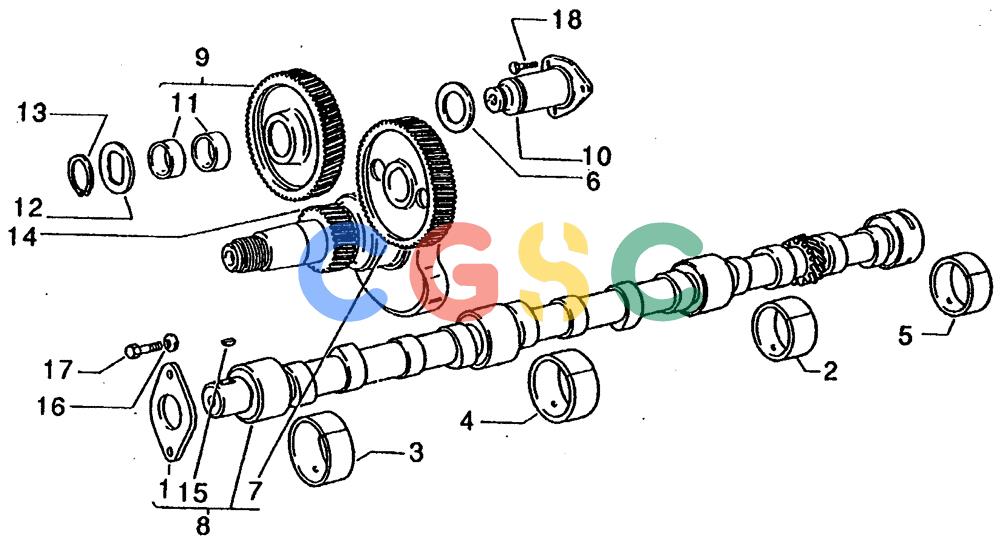

纽荷兰零件查询(65B) - MOTORGRADERS (A1.06[002]) - CAMSHAFT & TIMING GEARS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4599398 | [1] | PLATE | TOR |
| 2. | 4603448 | [1] | BUSHING | FORFRONT Superseded by part number: 4718621 |
| 3. | 4603449 | [1] | BUSHING | TORMIDDLE FRONT Superseded by part number: 4718618 |
| 4. | 4603450 | [1] | BUSHING | TORMIDDLE REAR Superseded by part number: 4718619 |
| 5. | 4603451 | [1] | BUSHING | TORREAR Superseded by part number: 4718620 |
| 6. | 4667452 | [1] | WASHER,37.1mm ID x 55mm OD x 1.5mm Thk | TOR |
| 7. | 4769412 | [1] | DRIVEN GEAR | TORGEAR, DRIVEN |
| 8. | 4786937 | [1] | CAMSHAFT | MOD Superseded by part number: 4824221 |
| 9. | 4769414 | [1] | GEAR | TOR |
| 10. | 4769416 | [1] | PIN | TOR |
| 11. | 4769418 | [2] | BUSHING | TOR |
| 12. | 4769419 | [1] | WASHER | TOR |
| 13. | 4769420 | [1] | SNAP RING,33.20mm ID | TORLOCKRING |
| 14. | 4769413 | [1] | DRIVING GEAR | MODGEAR. DRIVING Superseded by part number: 4809524 |
| 15. | 10205910 | [1] | KEY,5 x 9mm | TOR Superseded by part number: 17221220 |
| 16. | 11193871 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TTFLOCKWASHER Superseded by part number: 11193874 |
| 17. | 16043421 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| 18. | 16321021 | [3] | SCREW | TORCAPSCREW,M8X29 Superseded by part number: 14238124 |
