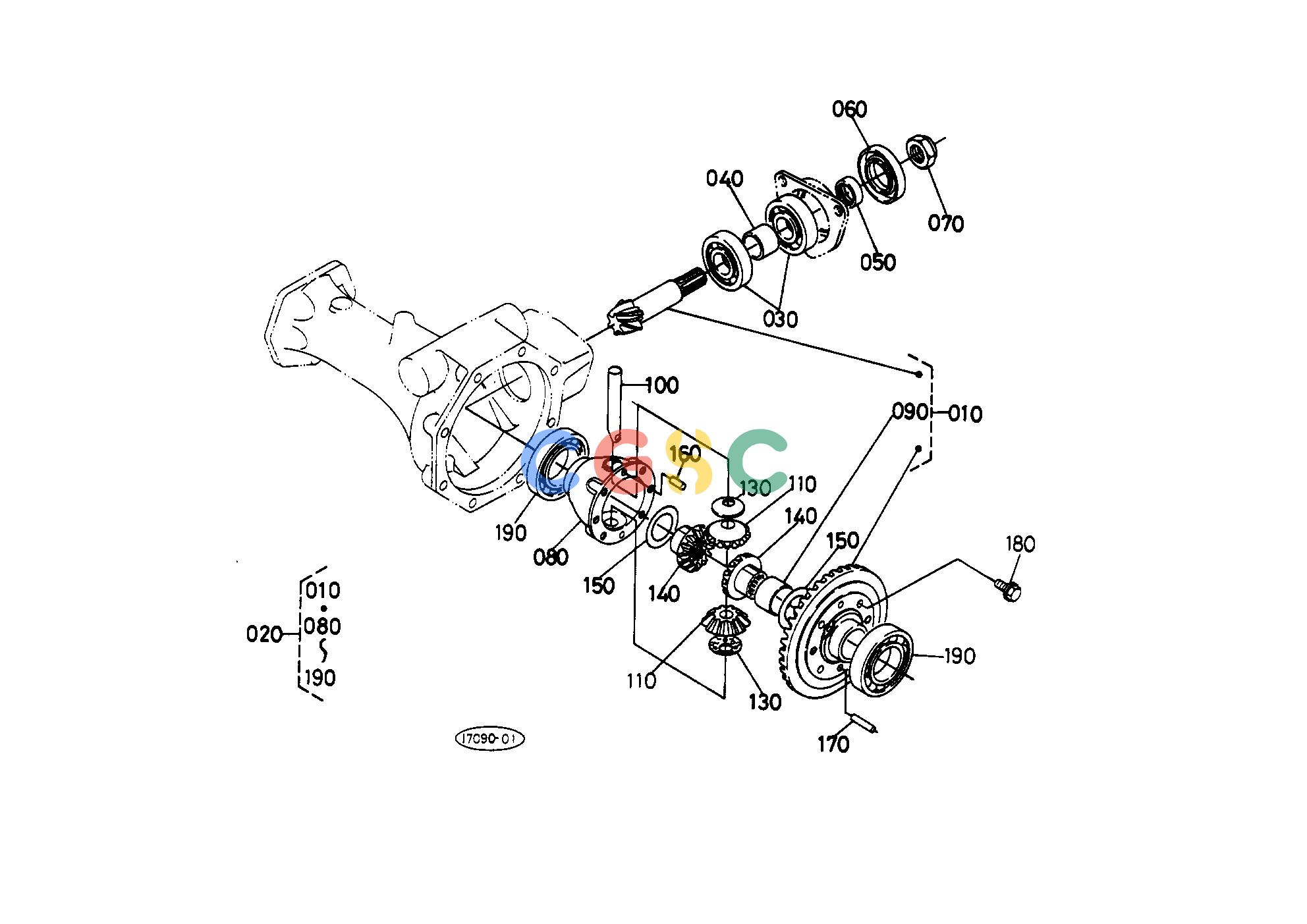

久保田零件查询T06700 FRONT DIFFERENTIAL FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6712199120
|
[1] |
ASSY GEAR BEVEL
|
4.4000(lbs); 2.000
|
| 020. |
6772182900
|
[1] |
ASSY DIFF. FRONT
|
0.0000(lbs); 0.000
|
| 020. |
6722182903
|
[1] |
ASSY DIFF. FRONT
|
9.0200(lbs); 4.100
|
| 030. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 040. |
6659156463
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
| 050. |
6659156420
|
[1] |
BUSH
|
0.0462(lbs); 0.021
|
| 060. |
6659156430
|
[1] |
SEAL OIL
|
0.0418(lbs); 0.019
|
| 070. |
3526023252
|
[1] |
NUT
|
0.0880(lbs); 0.040
|
| 080. |
6732156612
|
[1] |
CASE FRONT DIFF.
|
1.3420(lbs); 0.610
|
| 090. |
6661114950
|
[1] |
BUSH
|
0.0704(lbs); 0.032
|
| 100. |
6771114912
|
[1] |
SHAFT DIFF.PINION
|
0.3080(lbs); 0.140
|
| 110. |
6771114920
|
[2] |
PINION DIFF.
|
0.2420(lbs); 0.110
|
| 130. |
6731114980
|
[2] |
COLLAR PINION THRUST
|
0.0132(lbs); 0.006
|
| 140. |
6721115150
|
[2] |
GEAR DIFF.SIDE
|
0.3476(lbs); 0.158
|
| 150. |
6721115160
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 150. |
6721115170
|
[2] |
SHIM
|
0.0176(lbs); 0.008
|
| 150. |
6721115180
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 160. |
6659114792
|
[1] |
PIN KNOCK
|
0.0066(lbs); 0.003
|
| 170. |
6659114783
|
[1] |
PIN STRAIGHT
|
0.0220(lbs); 0.010
|
| 180. |
6781056680
|
[6] |
BOLT UBS
|
0.0286(lbs); 0.013
|
| 190. |
0810106009
|
[2] |
BEARING BALL
|
0.4840(lbs); 0.220
|
