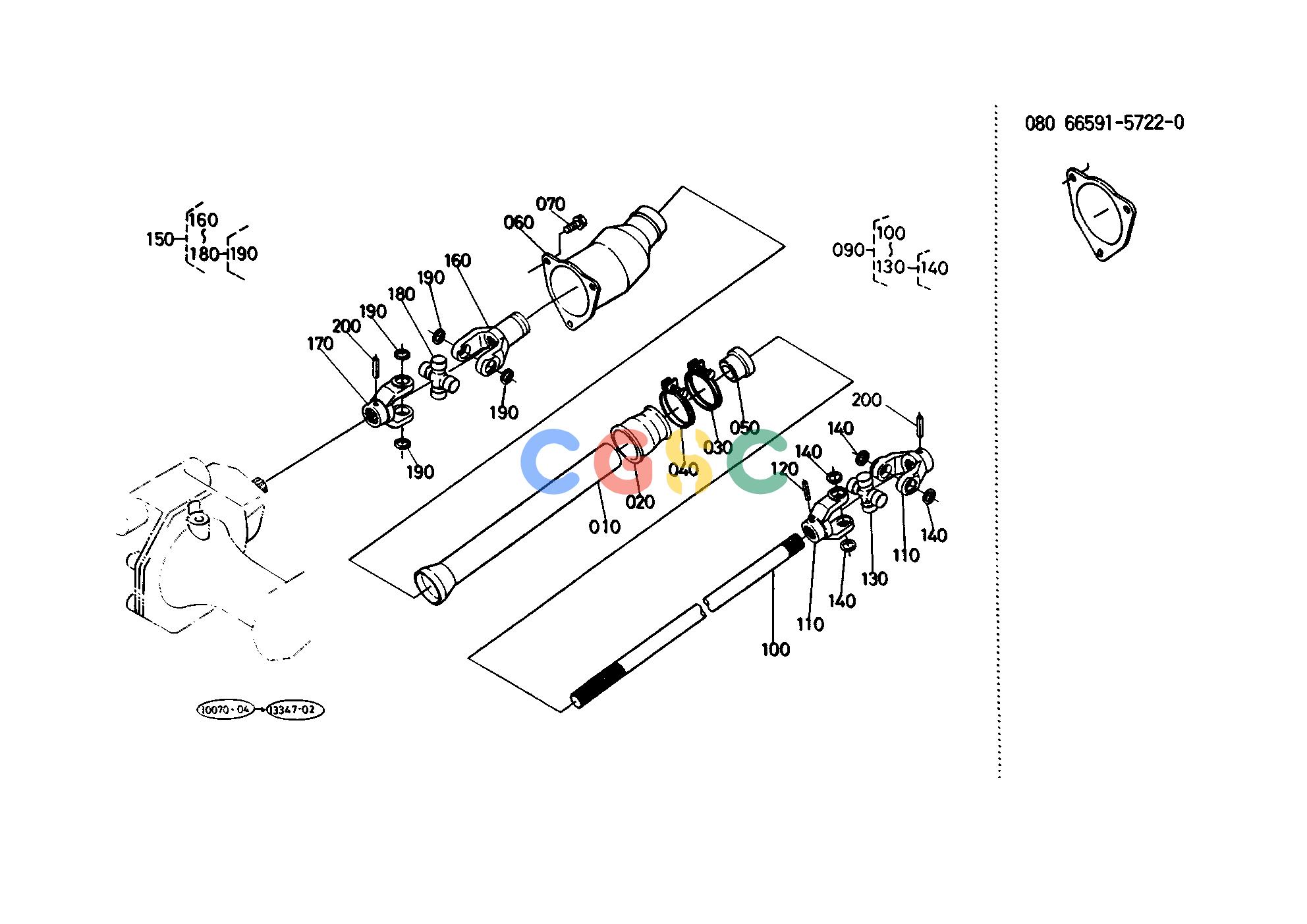

久保田零件查询T06800 FRONT DRIVE SHAFT FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6659157164
|
[1] |
PIPE
|
0.9438(lbs); 0.429
|
| 020. |
6659157170
|
[1] |
PIPE
|
0.1012(lbs); 0.046
|
| 030. |
1510872870
|
[1] |
BAND
|
0.0594(lbs); 0.027
|
| 040. |
1522111720
|
[1] |
CLAMP HOSE
|
0.0660(lbs); 0.030
|
| 050. |
6712157150
|
[1] |
SEAL OIL
|
0.0396(lbs); 0.018
|
| 060. |
6722157110
|
[1] |
CASE JOINT
|
1.2320(lbs); 0.560
|
| 070. |
0112350835
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 080. |
6659157220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 090. |
6671157200
|
[1] |
ASSY SHAFT DRIVE
|
4.4990(lbs); 2.045
|
| 100. |
6671157210
|
[1] |
SHAFT DRIVE
|
2.9040(lbs); 1.320
|
| 110. |
6659156310
|
[2] |
JOINT
|
0.5500(lbs); 0.250
|
| 120. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 130. |
6659156320
|
[1] |
ASSY JOINT CROSS
|
0.4070(lbs); 0.185
|
| 140. |
0461100200
|
[4] |
CIR CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 150. |
6712157250
|
[1] |
ASSY JOINT FRONT
|
1.6940(lbs); 0.770
|
| 160. |
6659156340
|
[1] |
JOINT
|
0.7260(lbs); 0.330
|
| 170. |
6659156310
|
[1] |
JOINT
|
0.5500(lbs); 0.250
|
| 180. |
6659156320
|
[1] |
ASSY JOINT CROSS
|
0.4070(lbs); 0.185
|
| 190. |
0461100200
|
[4] |
CIR CLIP INTERNAL
|
0.0022(lbs); 0.001
|
| 200. |
0541100628
|
[2] |
PIN SPRING
|
0.0132(lbs); 0.006
|
