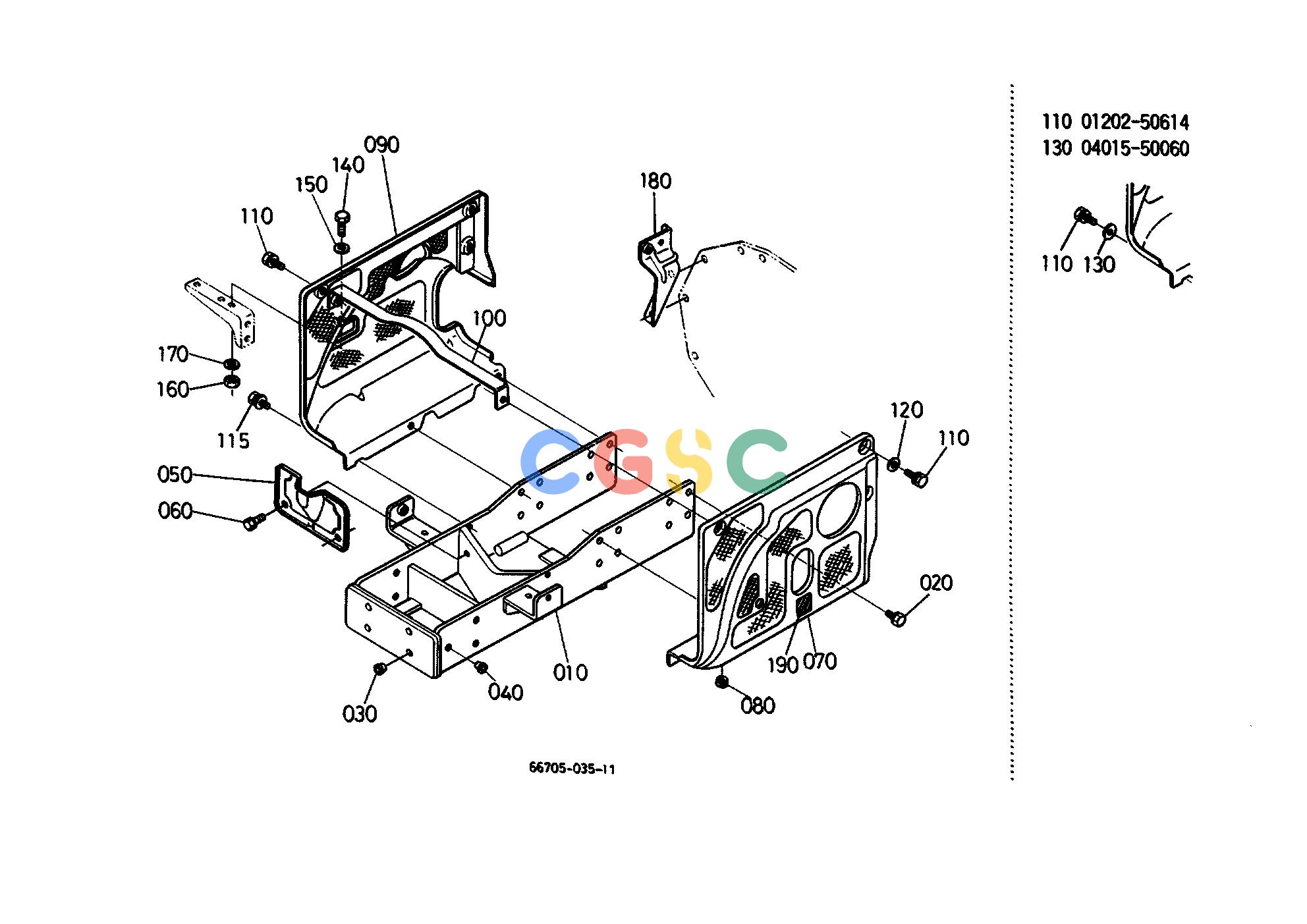

久保田零件查询T07000 FRONT WHEEL SUPPORT FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670451210
|
[1] |
SUPPORT FRONT WHEEL
|
37.4000(lbs); 17.000
|
| 020. |
0113351025
|
[16] |
BOLT
|
0.0506(lbs); 0.023
|
| 030. |
6721151120
|
[8] |
PLUG
|
0.0022(lbs); 0.001
|
| 040. |
6721111140
|
[6] |
PLUG
|
0.0022(lbs); 0.001
|
| 050. |
6670451280
|
[1] |
COVER FRONT
|
0.1540(lbs); 0.070
|
| 060. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 070. |
6672851370
|
[1] |
COVER SIDE LH
|
1.9800(lbs); 0.900
|
| 080. |
6659154580
|
[1] |
RUBBER RELEASE ROD
|
0.0044(lbs); 0.002
|
| 090. |
6621351330
|
[1] |
COVER SIDE RH
|
2.3760(lbs); 1.080
|
| 100. |
6671151380
|
[1] |
STAY SIDE COVER
|
0.4730(lbs); 0.215
|
| 110. |
0120250614
|
[6] |
BOLT
|
0.0132(lbs); 0.006
|
| 115. |
0102650614
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 120. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
0401550060
|
[2] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 140. |
0115050818
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 150. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 160. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 170. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 180. |
6671151350
|
[1] |
STAY FUEL
|
0.3212(lbs); 0.146
|
| 190. |
6670647330
|
[1] |
LABEL OIL INSPECTION
|
0.0022(lbs); 0.001
|
