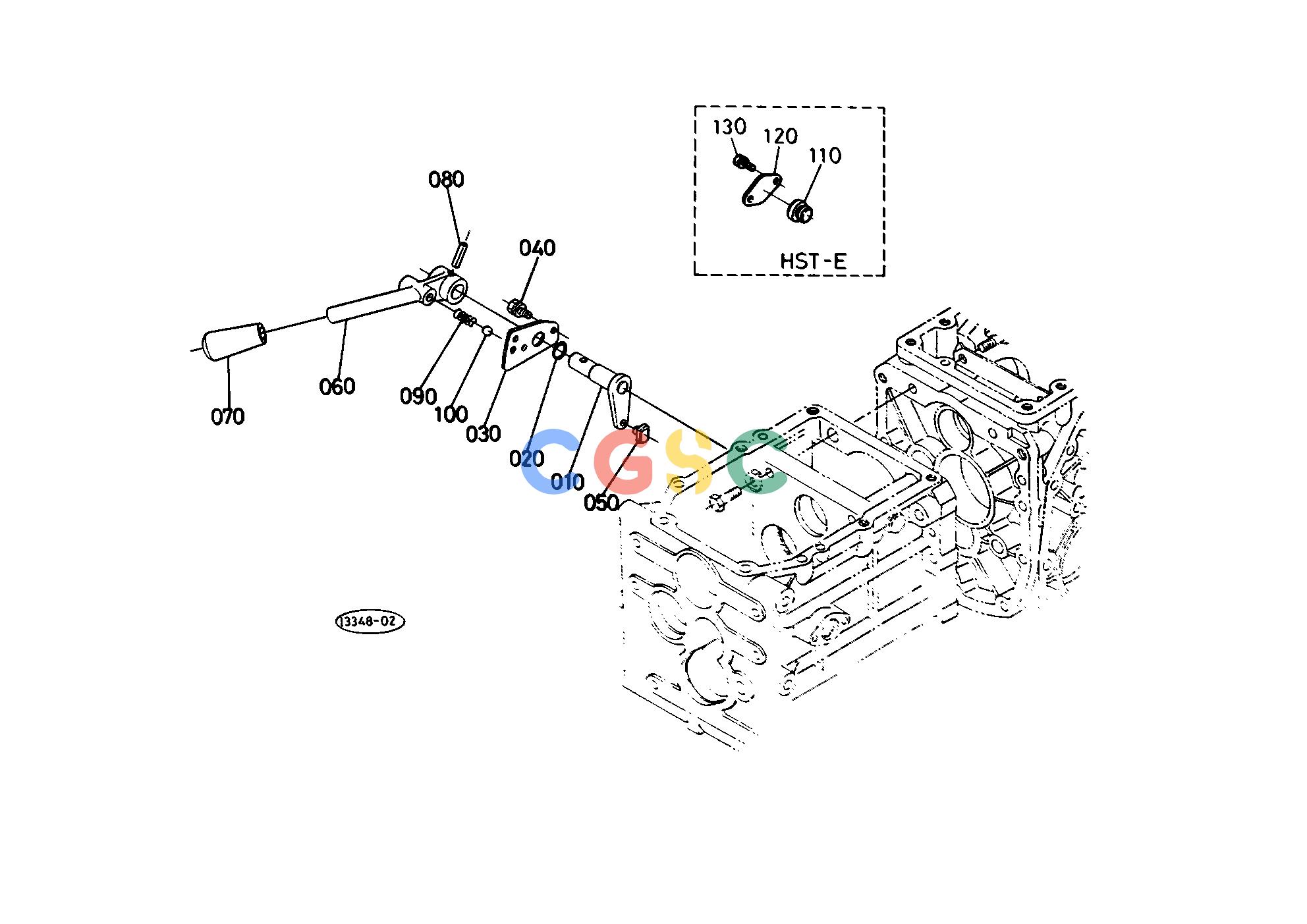

久保田零件查询T06900 FRONT DRIVE LEVER FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6661119210
|
[1] |
LEVER FORK
|
0.2640(lbs); 0.120
|
| 020. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6620419220
|
[1] |
RETAINER FORK ROD
|
0.0660(lbs); 0.030
|
| 040. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 050. |
6661119230
|
[1] |
SHIFTER
|
0.0264(lbs); 0.012
|
| 060. |
6620442610
|
[1] |
LEVER FRONT DRIVE
|
0.3410(lbs); 0.155
|
| 070. |
5420123270
|
[1] |
GRIP
|
0.0440(lbs); 0.020
|
| 080. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 090. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 100. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
