纽荷兰零件查询(65B) - MOTORGRADERS (A1.08[001]) - HOUR METER DRIVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
863 次

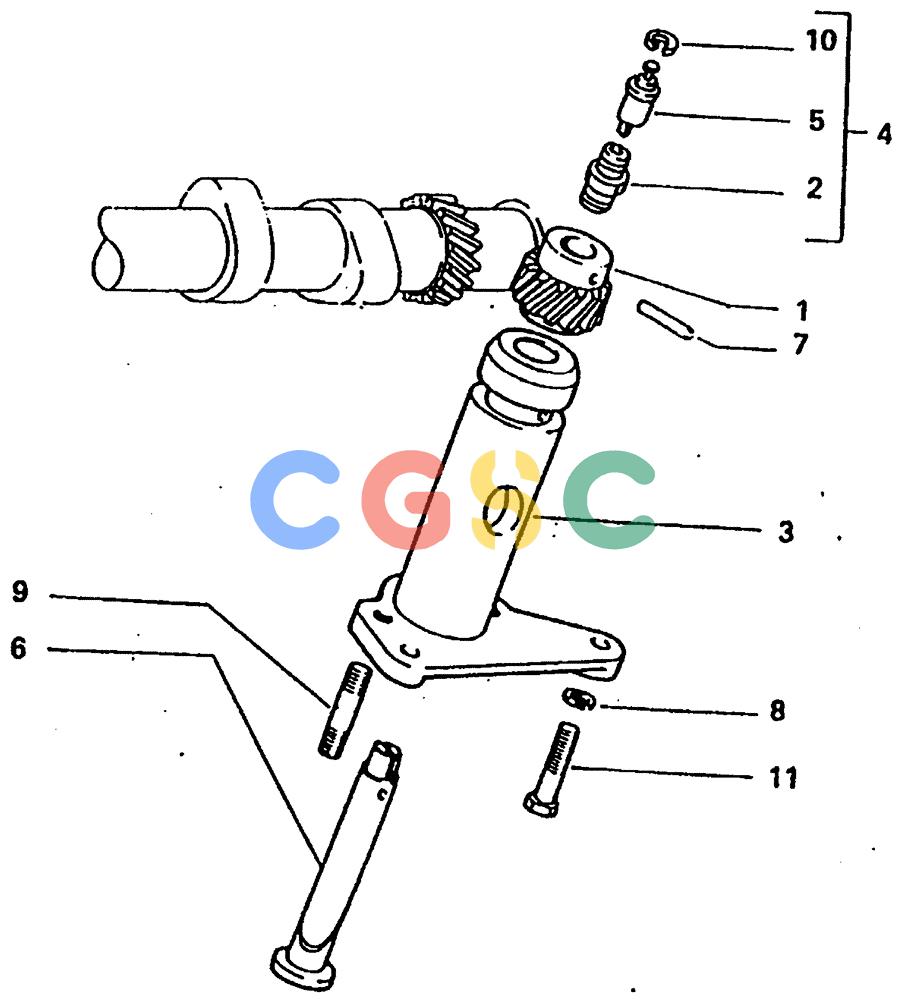

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4599726 | [1] | DRIVEN GEAR | TORGEAR, DRIVEN |
| 2. | 4589429 | [1] | HYD CONNECTOR | TTFCONNECTOR Superseded by part number: 4717707 |
| 3. | 4613296 | [1] | SUPPORT | MOD |
| 4. | 4699735 | [1] | HYD CONNECTOR | BRECONNECTION |
| 5. | 4697128 | [1] | SPINDLE | BRESHAFT |
| 6. | 4613297 | [1] | SPINDLE | TORSHAFT |
| 7. | 4605293 | [1] | PIN | TORPLATE |
| 8. | 11193871 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TTFLOCKWASHER Superseded by part number: 11193874 |
| 9. | 13517321 | [2] | STUD | BAS Superseded by part number: 13517330 |
| 10. | 13400575 | [1] | LOCKING RING | TORLOCKRING Superseded by part number: 13400573 |
| 11. | 16043621 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CASHex, M8 x 25, 8.8 Superseded by part number: |
