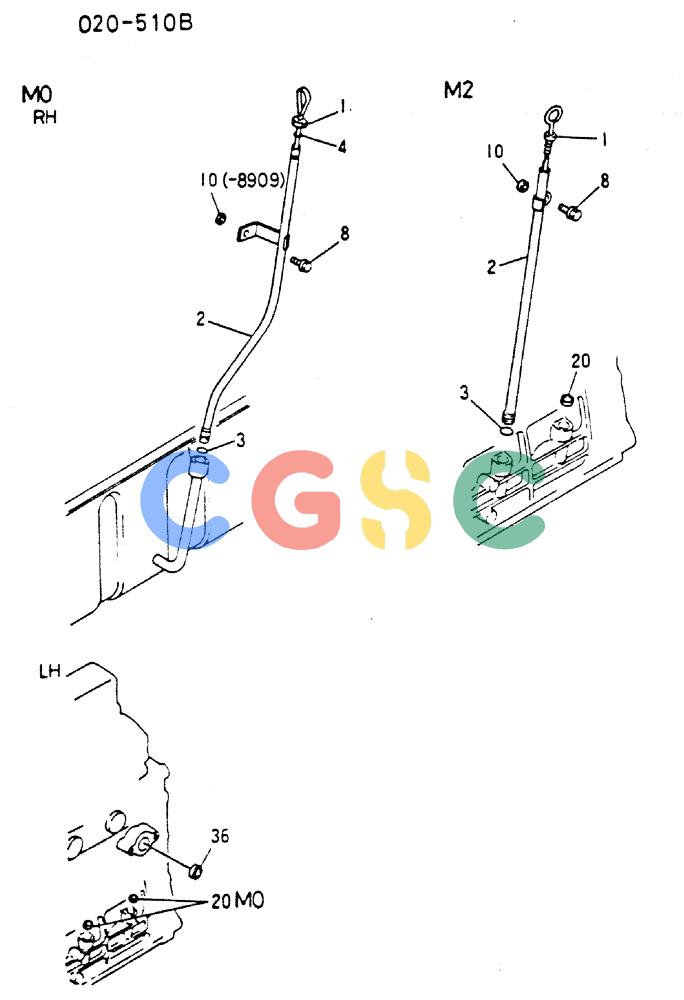

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-028) - OIL FILLER & OIL LEVEL GAUGE 020-510B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME064437 | [1] | CAGE | KOBLEVEL L=600 M0 ONLY, Start Serial: 8910- Superseded by part number: VAME940029 |
| . . | VAMH093024 | [1] | OIL PRESSURE GAUGE | KOBGAUGE, OIL LEVEL L=600 M0 ONLY, Serial Range: --8909 |
| . . | VAME004139 | [1] | LEVEL GAUGE | KOBOIL L=550 M2 ONLY |
| 2. | VAME088493 | [1] | GUIDE | KOBGAUGE LEVEL M0 ONLY, Start Serial: 8910- |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONGUIDE, OIL LEVEL GAUGE M0 ONLY, Serial Range: --8909 |
| . . | VAME088692 | [1] | GUIDE, OIL LEVEL GAUGE M2 ONLY | |
| 3. | VAMF520007 | [1] | O-RING | KOBO-RING 11 |
| 4. | VAMH035230 | [1] | O-RING | KOBO-RING 10 M0 ONLY |
| 8. | VAMF140221 | [1] | BOLT | KOBBOLT, FLANGE 8 X 12 M0 ONLY, Start Serial: 8910- |
| . . | VAMF140021 | [1] | SCREW | KOBBOLT, FLANGE 8 X 12 M0 ONLY, Serial Range: --8909 |
| . . | VAMF140229 | [1] | BOLT | KOBBOLT, FLANGE 8 X 30 M2 ONLY, Start Serial: 9103- |
| . . | VAMF140029 | [1] | FLANGE BOLT | SMBOLT, FLANGE 8 X 30 M2 ONLY, Serial Range: --9102 |
| 10. | VAMH005006 | [1] | WASHER | KOBSPACER T=2.6 M0 ONLY, Serial Range: --8909 Superseded by part number: VAMH005027 |
| . . | VAME920004 | [1] | SPACER | KOBL=5 M2 ONLY |
| 20. | VAMH037760 | [2] | CAP COVER | KOBCAP, SEALING 15 M0 ONLY, Start Serial: 9012- Superseded by part number: 132367A1 |
| . . | VAMH037760 | [1] | CAP COVER | KOBCAP, SEALING 15 M0 ONLY, Serial Range: --9011 Superseded by part number: 132367A1 |
| 36. | VAMF665540 | [1] | CAP | KOBCAP, SEALING 30 |
