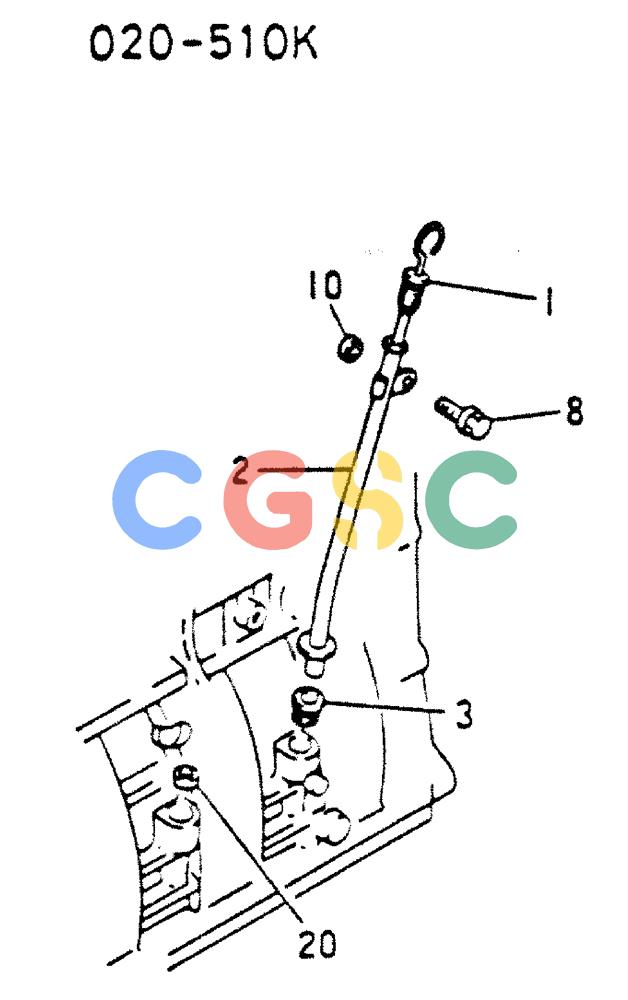

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-029) - OIL FILLER & OIL LEVEL GAUGE 020-510K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME004139 | [1] | LEVEL GAUGE | KOBOIL L=550 |
| 2. | VAME088645 | [1] | VALVE GUIDE | KOBOIL LEVEL GAUGE |
| 3. | VAME074151 | [1] | BUSHING | KOBRUBBER Superseded by part number: VAME301611 |
| 8. | VAMF140229 | [1] | BOLT | KOBBOLT, FLANGE 8 X 30, Start Serial: 9103- |
| . . | VAMF140029 | [1] | FLANGE BOLT | SMBOLT, FLANGE 8 X 30, Serial Range: --9102 |
| 10. | VAME920004 | [1] | SPACER | KOBT = 5 |
| 20. | VAMF665535 | [1] | CAP | KOBCAP, SEALING 18 |
