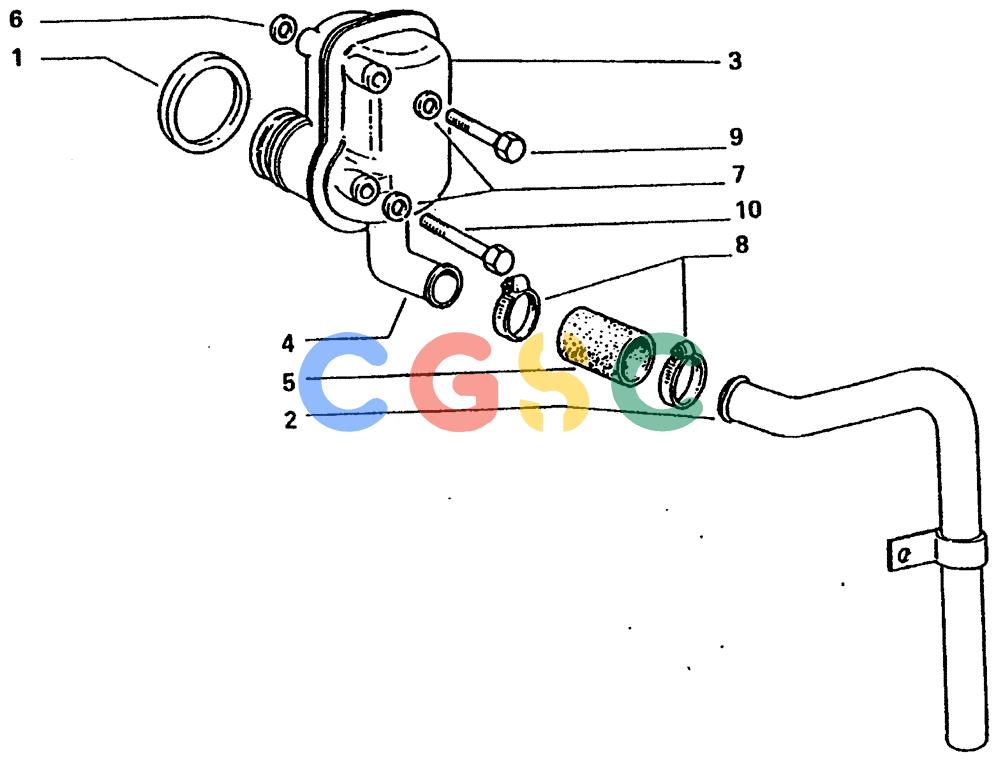

纽荷兰零件查询(65B) - MOTORGRADERS (A1.25[001]) - ENGINE BREATHER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4600893 | [1] | SEAL,37mm ID x 47mm OD x 4mm Thk | TOR |
| 2. | 4782475 | [1] | RIGID TUBE | MODPIPE |
| 3. | 4769877 | [1] | BREATHER | MODVENT |
| 4. | 4769878 | [1] | RIGID TUBE | BREPIPE |
| 5. | 4725351 | [1] | HOSE | MODSLEEVE Superseded by part number: 98425452 |
| 6. | 10519601 | [3] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | BHB Superseded by part number: 17094914 |
| 7. | 10260060 | [3] | SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk | TTFWASHER, SEALING, , Copper M8.2 x 14 x 1 |
| 8. | 12174090 | [2] | HOSE CLIP | MKTCLAMP Superseded by part number: 13000690 |
| 9. | 16044921 | [1] | BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8 | TORCAPSCREW,M8X1. 25X85 Superseded by part number: 16044924 |
| 10. | 16045621 | [1] | SCREW,Hex, M8 x 120mm, Cl 8.8 | TORCAPSCREW,M8X1.25X120 Superseded by part number: 16607024 |
