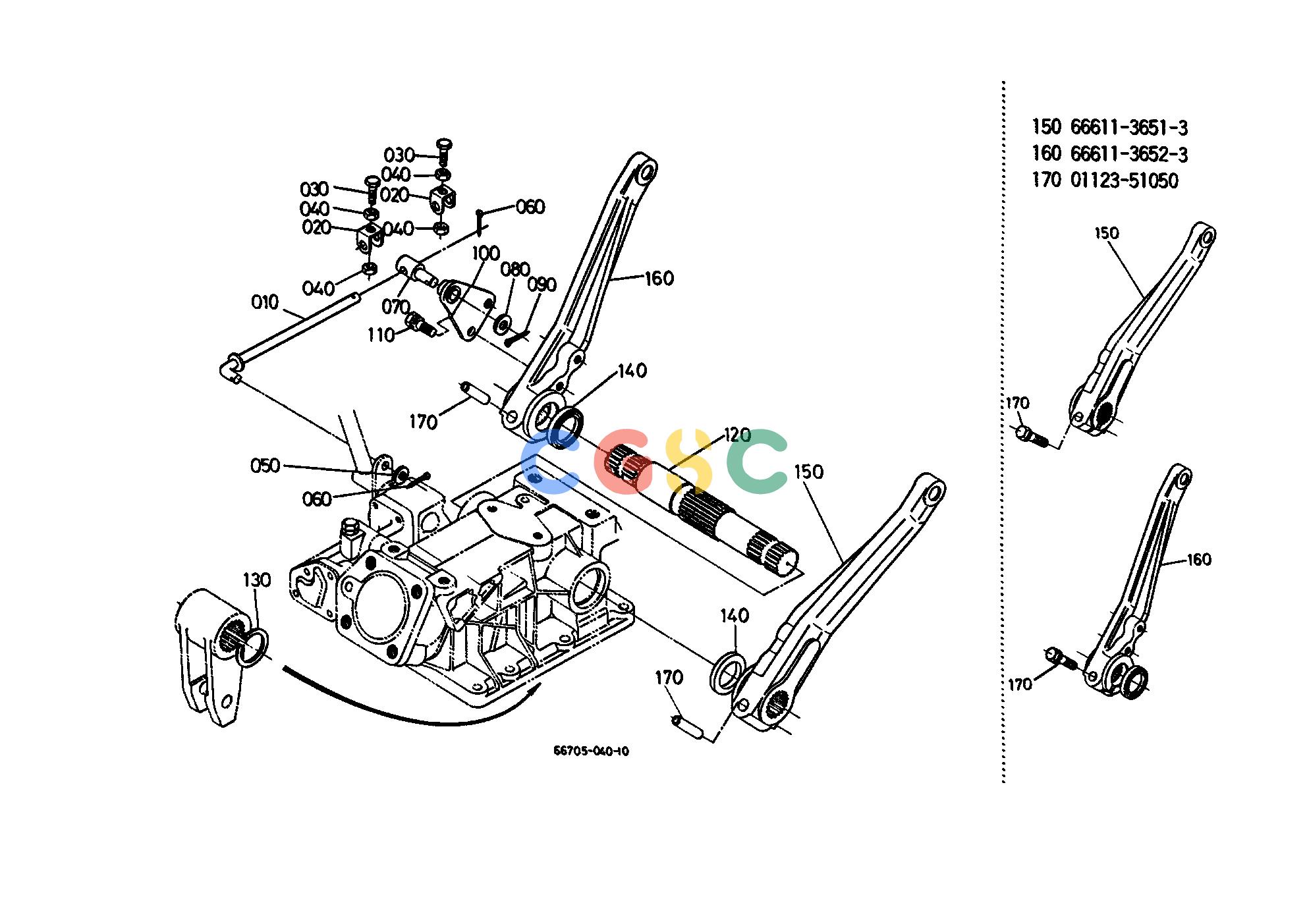

久保田零件查询T07700 LIFT ARM HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670436310
|
[1] |
ROD INTERLOCKER
|
0.1650(lbs); 0.075
|
| 020. |
6661136320
|
[2] |
INTERLOCKER
|
0.0484(lbs); 0.022
|
| 030. |
0115350822
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
0211250080
|
[4] |
NUT
|
0.0066(lbs); 0.003
|
| 050. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
6659136540
|
[1] |
SHAFT LOCK
|
0.0748(lbs); 0.034
|
| 080. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 090. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
6659136550
|
[1] |
SUPPORT INTERLOCKER
|
0.1584(lbs); 0.072
|
| 110. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 120. |
6659136694
|
[1] |
SHAFT HYD.ARM
|
0.0000(lbs); 0.000
|
| 120. |
6659136695
|
[1] |
SHAFT HYD.ARM
|
2.5300(lbs); 1.150
|
| 130. |
0461200320
|
[1] |
CIR CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 140. |
0923028405
|
[2] |
SEAL OIL
|
0.0132(lbs); 0.006
|
| 150. |
6661136513
|
[1] |
ARM LIFT LH
|
3.3000(lbs); 1.500
|
| 150. |
6661136514
|
[1] |
ARM LIFT LH
|
3.1240(lbs); 1.420
|
| 160. |
6661136523
|
[1] |
ARM LIFT RH
|
3.0360(lbs); 1.380
|
| 160. |
6661136524
|
[1] |
ARM LIFT RH
|
3.1240(lbs); 1.420
|
| 170. |
0112351050
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
| 170. |
0541101050
|
[2] |
PIN SPRING
|
0.0418(lbs); 0.019
|
