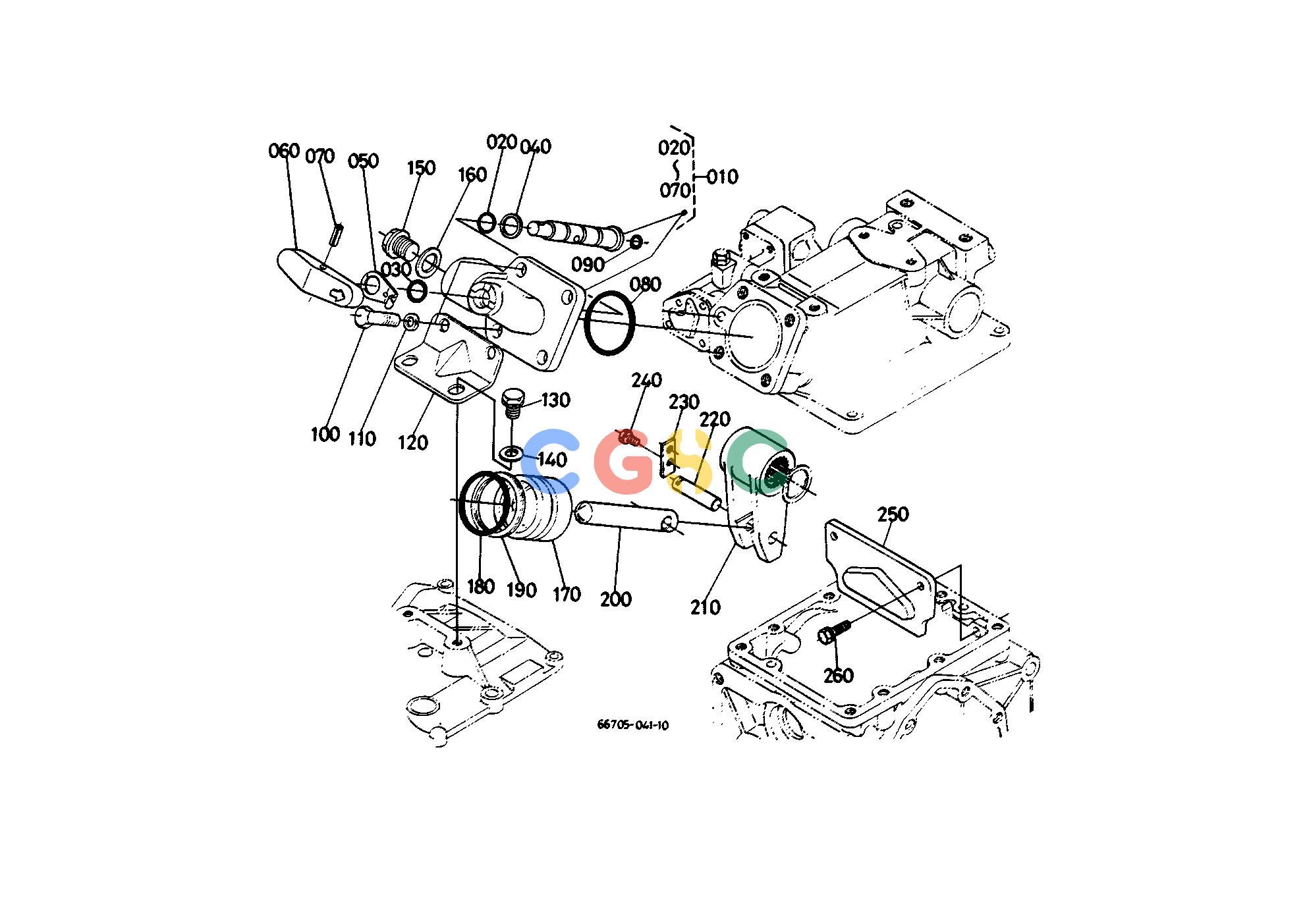

久保田零件查询T07800 HYD.CYLINDER CAP HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
625 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6640436600
|
[1] |
ASSY CAP CYLINDER
|
2.5740(lbs); 1.170
|
| 020. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
9631901430
|
[1] |
WASHER THRUST
|
0.0044(lbs); 0.002
|
| 050. |
9631901440
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 060. |
9631901450
|
[1] |
KNOB
|
0.0880(lbs); 0.040
|
| 070. |
0541100520
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 080. |
0481050550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 090. |
0481005110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6671136440
|
[4] |
BOLT
|
0.0990(lbs); 0.045
|
| 110. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
6661136413
|
[1] |
STAY
|
0.3080(lbs); 0.140
|
| 120. |
H666036410
|
[1] |
STAY
|
0.3080(lbs); 0.140
|
| 130. |
0112351025
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 140. |
0401350100
|
[2] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 150. |
0631125040
|
[1] |
PLUG
|
0.1980(lbs); 0.090
|
| 160. |
6661136420
|
[1] |
GASKET
|
0.0132(lbs); 0.006
|
| 170. |
6721136410
|
[1] |
PISTON HYD.
|
1.2100(lbs); 0.550
|
| 180. |
0481008500
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 190. |
6721136420
|
[1] |
RING BACK UP
|
0.0066(lbs); 0.003
|
| 200. |
6659136640
|
[1] |
ROD HYD.PISTON
|
0.6820(lbs); 0.310
|
| 210. |
6659136650
|
[1] |
ARM HYDRAULIC
|
1.7600(lbs); 0.800
|
| 220. |
6659136660
|
[1] |
PIN ARM
|
0.0990(lbs); 0.045
|
| 230. |
6659136670
|
[1] |
STOPPER
|
0.0220(lbs); 0.010
|
| 240. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 250. |
6662136750
|
[1] |
PLATE HYD.ARM
|
0.7480(lbs); 0.340
|
| 260. |
6721136610
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
