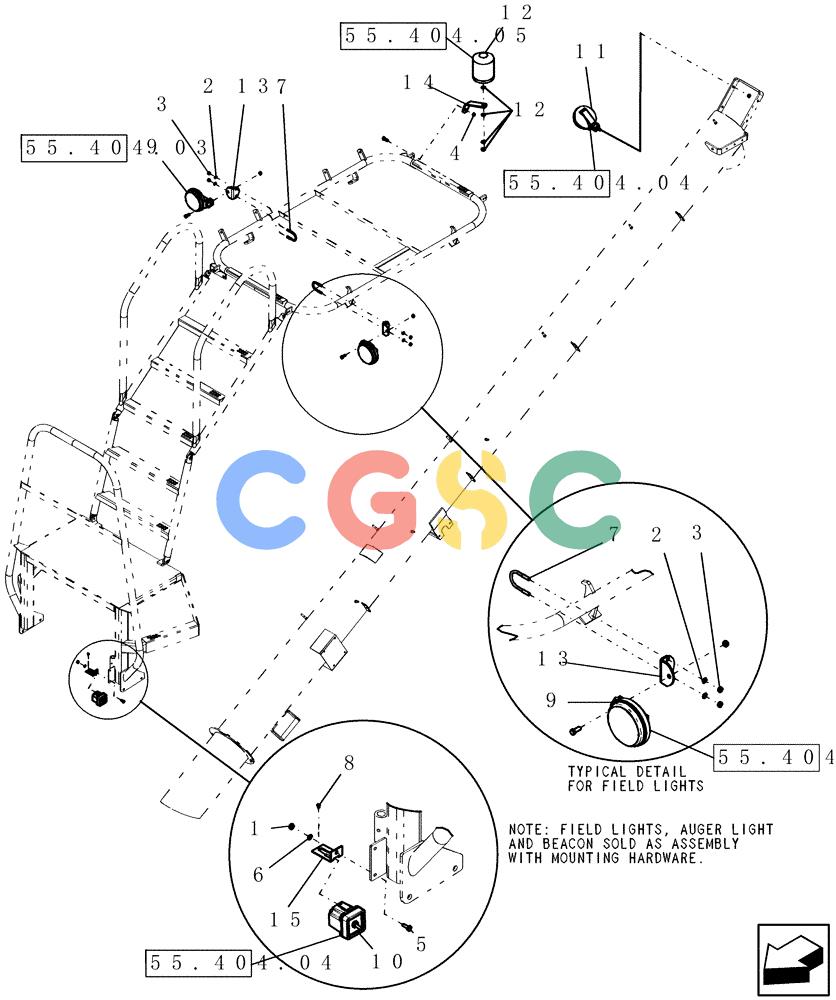

凯斯零件查询(3430) - PRECISION AIR CART (7/08-12/15) (55.404.02) - WORK, AUGER AND BEACON LIGHTING MOUNTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7770
|
[1] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 2. |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 3. |
9635082
|
[4] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 4. |
88902
|
[4] |
NUT,3/8"-16
|
NH
|
| 5. |
9707580
|
[1] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
NH
|
| 6. |
80682
|
[1] |
LOCK WASHER,1/4"
|
PA
|
| 7. |
6652
|
[2] |
U-BOLT
|
FLX
ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread
|
| 8. |
21304
|
[1] |
SELF-TAP SCREW
|
FLX
#6-32 x 5/16"
|
| 9. |
425060A1
|
[2] |
LIGHT
|
FLX
work 100w pilot
|
| 10. |
425061A1
|
[1] |
SWITCH
|
FLX
on/off
|
| 11. |
87564182
|
[1] |
LIGHT
|
SAS
auger 55w pilot
|
| 12. |
412915A1
|
[1] |
BEACON
|
FLX
assembly rotating yellow 12v
|
| 13. |
GL-338
|
[2] |
BRACKET
|
FLX
field light
|
| 14. |
GL-348
|
[1] |
BRACKET
|
FLX
mount beacon light
|
| 15. |
GL-479
|
[1] |
BRACKET
|
FLX
mount, single switch
|
