凯斯零件查询(3430) - PRECISION AIR CART (7/08-12/15) (55.632.01) - VARIABLE DRIVE SWITCHES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1011 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |

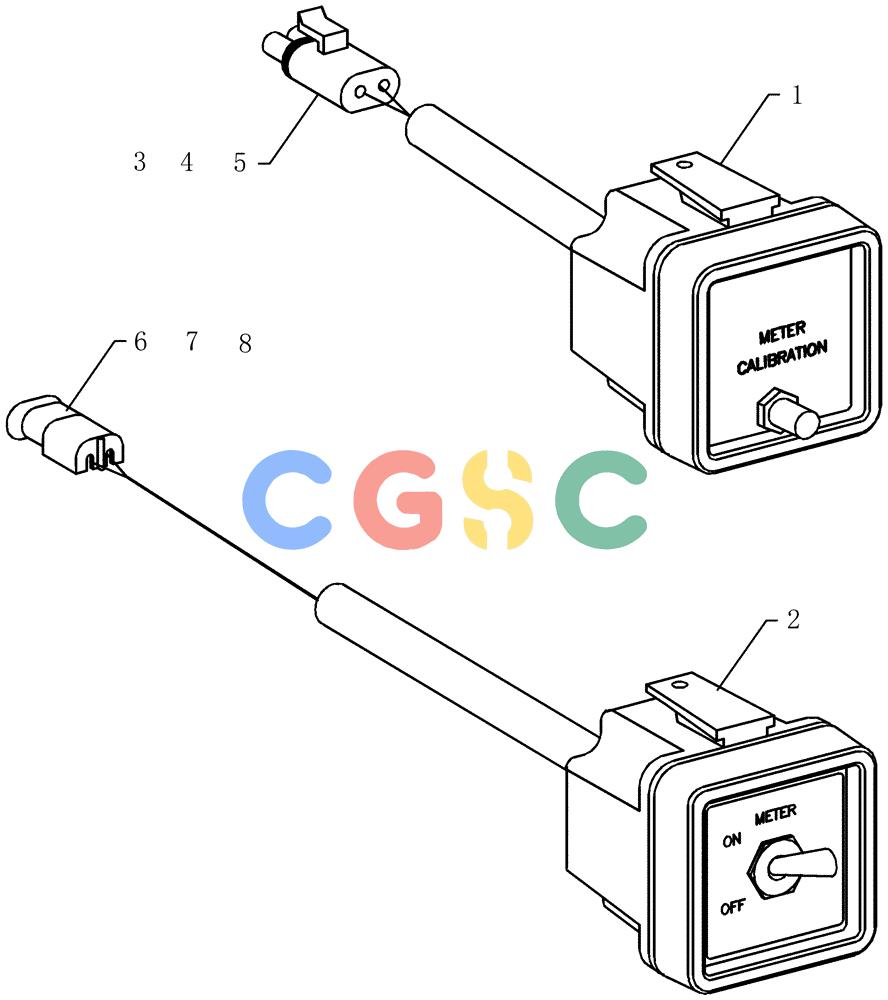

| 1. |
84307649
|
[1] |
SWITCH
|
SAS
Calibration Superseded by part number: 47739163
|
| 2. |
87641950
|
[1] |
SWITCH
|
SAS
meter on/off - NOTE IF SWITCH HAS INLINE FUSE ORDER PART NUMBER 13924 Superseded by part number: 47737283
|
| 1A. |
87508155
|
[1] |
DECAL
|
SAS
Front Panel Calibration Switch
|
| 3. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
plastic 2c plug
|
| 4. |
225123C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
socket 18-20awg
|
| 5. |
441656A1
|
[2] |
ELEC CONNECTOR
|
CAS
seal ppl 2.15-1.6mm
|
| 6. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
plastic 2c receptacle
|
| 7. |
225119C1
|
[2] |
TERMINAL
|
IH
14-16awg Superseded by part number: 87692882
|
| 8. |
225125C1
|
[2] |
SEAL
|
IH
Connector Grey 3.49 - 2.81 mm Superseded by part number: 87680710
|
