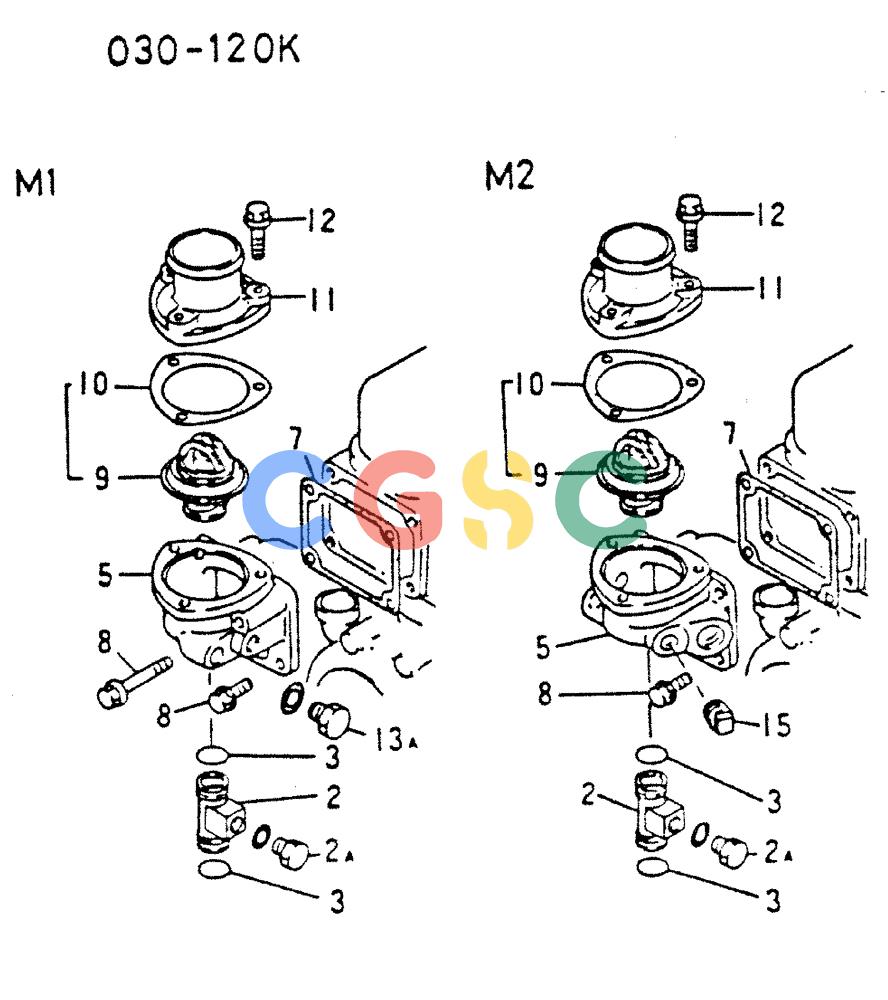

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-035) - WATER PIPE & THERMOSTAT 030-120K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
401 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | VAME080071 | [1] | PIPE | KOBBY-PASS |
| 2A. | VAM0001300 | [1] | PLUG | KOBPLUG |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 3. | VAMH035680 | [2] | O-RING | KOBO-RING 22.1, Start Serial: 9011- |
| . . | VAMF520016 | [2] | O-RING | KOBO-RING 22.1, Serial Range: --9010 |
| 5. | VAME080107 | [1] | CASE | KOBM1 ONLY |
| . . | VAME080296 | [1] | CASE | KOBM2 ONLY |
| 7. | VAME013755 | [1] | GASKET | KOBCASE Superseded by part number: VAME014498 |
| 8. | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10 X 25 |
| . . | VAMH000712 | [2] | SCREW | KOBBOLT, FLANGE 10 X 65 M1 ONLY |
| 9-10. | VAME997211 | [1] | SENSOR | KOBKIT 76.5C FOR SERVICE ONLY Superseded by part number: VAME995106 |
| 9. | VAME015380 | [1] | SENSOR | KOBTHERMOSTAT 76.5°C Superseded by part number: VAME995106 |
| 10. | VAME013754 | [1] | GASKET | KOB Superseded by part number: VAME014499 |
| 11. | VAME088380 | [1] | COVER, THERMOSTAT | COVER, THERMOSTAT |
| 12. | VAMF140229 | [3] | BOLT | KOBBOLT, FLANGE 8 X 30 |
| 13A. | VAM0001300 | [1] | PLUG | KOBPLUG M1 ONLY |
| 15. | VAMS666224 | [1] | PLUG | KOBPLUG, TAPER PT 3/4 M2 ONLY |
