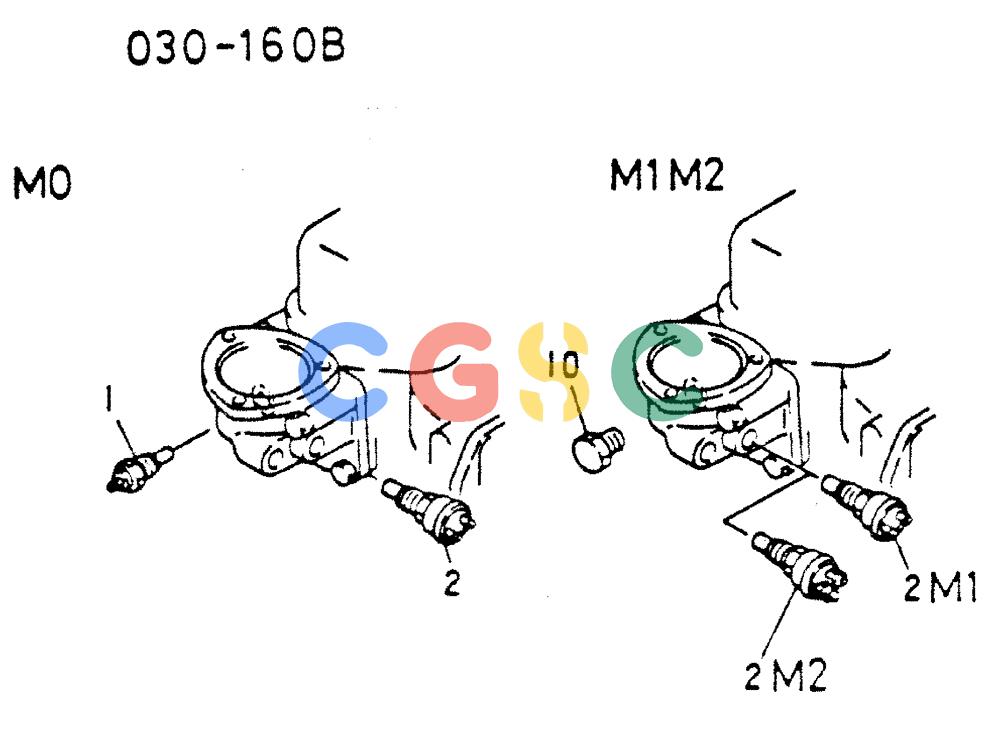

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-036) - WATER TEMP GAUGE UNIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
724 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3089080401 | [1] | GAUGE | KOBUNIT, THERMO SENDING M0 ONLY Superseded by part number: 134836A1 |
| 2. | VAME049209 | [1] | THERMOSTAT | KOB105°C, M0 ONLY |
| . . | VAME049209 | [1] | THERMOSTAT | KOB105°C, M1 ONLY |
| . . | VAME049265 | [1] | SWITCH | KOBTHERMO 105C M2 ONLY Superseded by part number: 134837A1 |
| 10. | VA3124618702 | [1] | PLUG | KOBPLUG M1, M2 ONLY Superseded by part number: 240292A1 |
