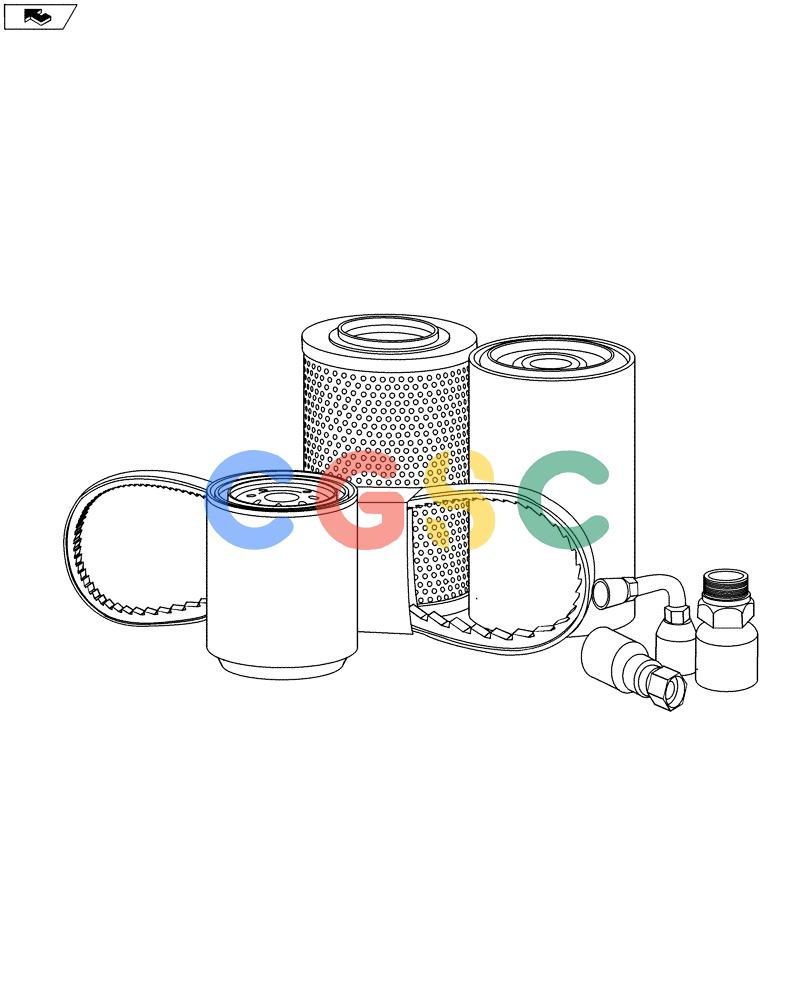

凯斯零件查询(3445) - PRECISION AIR CART (11/15-) (05.100.01) - INITIAL STOCKING LIST (LIST A) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84337824
|
[1] |
BEACON,12V, 55W, Amber
|
GI
|
| 2. |
16044024
|
[1] |
BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8
|
TTF
|
| 3. |
14151095
|
[1] |
BULB,H1, 12V, 55W
|
BAS
Superseded by part number: 86616248
|
| 4. |
47795910
|
[1] |
ROLLER
|
SAS
Service FW
|
| 5. |
47795912
|
[1] |
ROLLER
|
SAS
Service EF
|
| 6. |
47795911
|
[1] |
ROLLER
|
SAS
Service HW
|
| 7. |
47756267
|
[1] |
CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, J Type
|
SAS
|
| 8. |
47756193
|
[1] |
CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, J Type
|
SAS
|
| 9. |
9827902
|
[1] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 10. |
515-23317
|
[1] |
CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type
|
CAS
|
| 11. |
47773844
|
[1] |
KIT
|
SAS
Coupling Motor Alternator
|
| 12. |
47764604
|
[1] |
COUPLING
|
SAS
Alternator
|
| 13. |
47699703
|
[1] |
COUPLING
|
SAS
Hyd Motor
|
| 14. |
47611343
|
[1] |
COUPLING, QUICK, FEM
|
SAS
1/2"
|
| 15. |
51200017
|
[1] |
GASKET,25.4mm ID x 1.6mm Thk
|
FLX
|
| 16. |
87506220
|
[1] |
HITCH
|
SAS
Cat IV
|
| 17. |
47685620
|
[1] |
KIT
|
SAS
Motor Seal
|
| 18. |
47842008
|
[1] |
ELECTRIC MOTOR
|
SAS
Drive Superseded by part number: 47886361
|
| 19. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 20. |
9626600
|
[1] |
NUT,1"-8, GC
|
NH
|
| 21. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 22. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 23. |
16104414
|
[1] |
LOCK NUT,M8 x 1.25
|
LEC
|
| 24. |
47357790
|
[1] |
SEAL
|
SAS
Inter-Meter
|
| 25. |
324049A1
|
[1] |
SENSOR
|
CAS
Speed
|
| 26. |
47625038
|
[1] |
SENSOR
|
SAS
Low Bin Level
|
| 27. |
47739163
|
[1] |
TOGGLE SWITCH
|
SAS
Push Button
|
| 28. |
47737283
|
[1] |
TOGGLE SWITCH
|
SAS
Meter
|
| 29. |
9672438
|
[1] |
PLUG,7/16" - 20 ORB
|
WIN
|
| 30. |
84004732
|
[1] |
CAUTION DECAL
|
ZED
Caution
|
| 31. |
1254302C1
|
[1] |
BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L
|
IH
|
