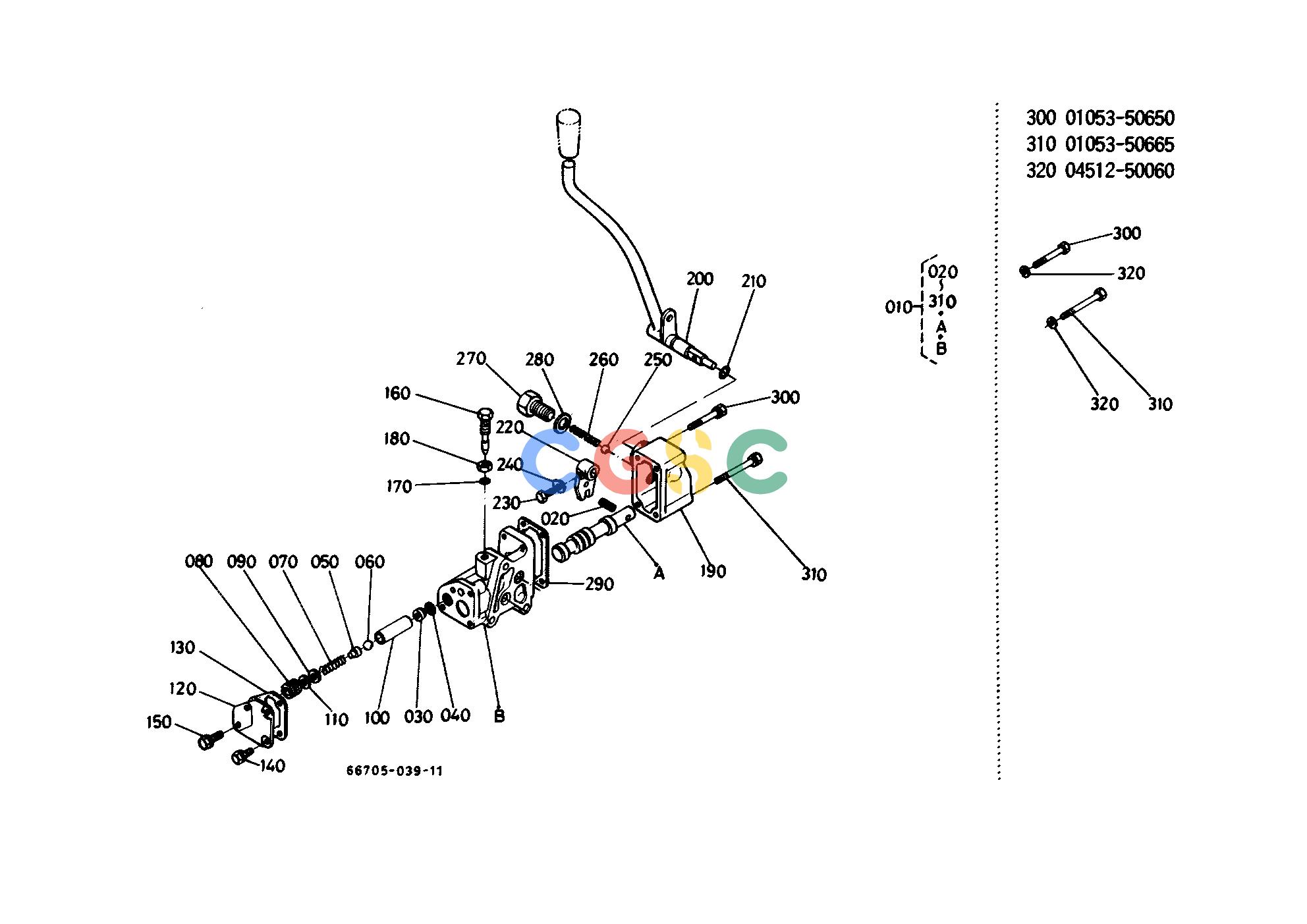

久保田零件查询T08000 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6671136200
|
[1] |
ASSY VALVE CONTROL
|
5.8630(lbs); 2.665
|
| 020. |
0541100620
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 030. |
6659136330
|
[1] |
SEAT VALVE
|
0.0176(lbs); 0.008
|
| 040. |
0481115120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
6661136222
|
[1] |
STOPPER SPRING
|
0.0176(lbs); 0.008
|
| 060. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 070. |
6659136350
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 080. |
6659136360
|
[1] |
SCREW ADJUSTING
|
0.0264(lbs); 0.012
|
| 090. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
6659136370
|
[1] |
COLLAR
|
0.0352(lbs); 0.016
|
| 110. |
6661136330
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 120. |
6661136260
|
[1] |
COVER RELIEF
|
0.0660(lbs); 0.030
|
| 130. |
6659136390
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 140. |
0120250618
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 150. |
0120250622
|
[2] |
BOLT
|
0.0154(lbs); 0.007
|
| 160. |
6659136413
|
[1] |
BOLT ADJUSTING
|
0.0616(lbs); 0.028
|
| 170. |
0481110040
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
0211250100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 190. |
6659136430
|
[1] |
COVER VALVE
|
0.3960(lbs); 0.180
|
| 200. |
6671136250
|
[1] |
LEVER CONTROL
|
0.0748(lbs); 0.034
|
| 210. |
0481100100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
6659136450
|
[1] |
ARM VALVE GUIDE
|
0.1100(lbs); 0.050
|
| 220. |
H665036450
|
[1] |
ARM VALVE GUIDE
|
0.1100(lbs); 0.050
|
| 230. |
6659136480
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 240. |
0411150060
|
[1] |
WASHER
|
0.0022(lbs); 0.001
|
| 250. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 260. |
6206118270
|
[1] |
SPRING STOPPER
|
0.0066(lbs); 0.003
|
| 270. |
6659136460
|
[1] |
BOLT
|
0.1188(lbs); 0.054
|
| 280. |
0471400300
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 290. |
6659136470
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 300. |
0105350650
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 300. |
0120250650
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 310. |
0105350665
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 310. |
0120250665
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 320. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
