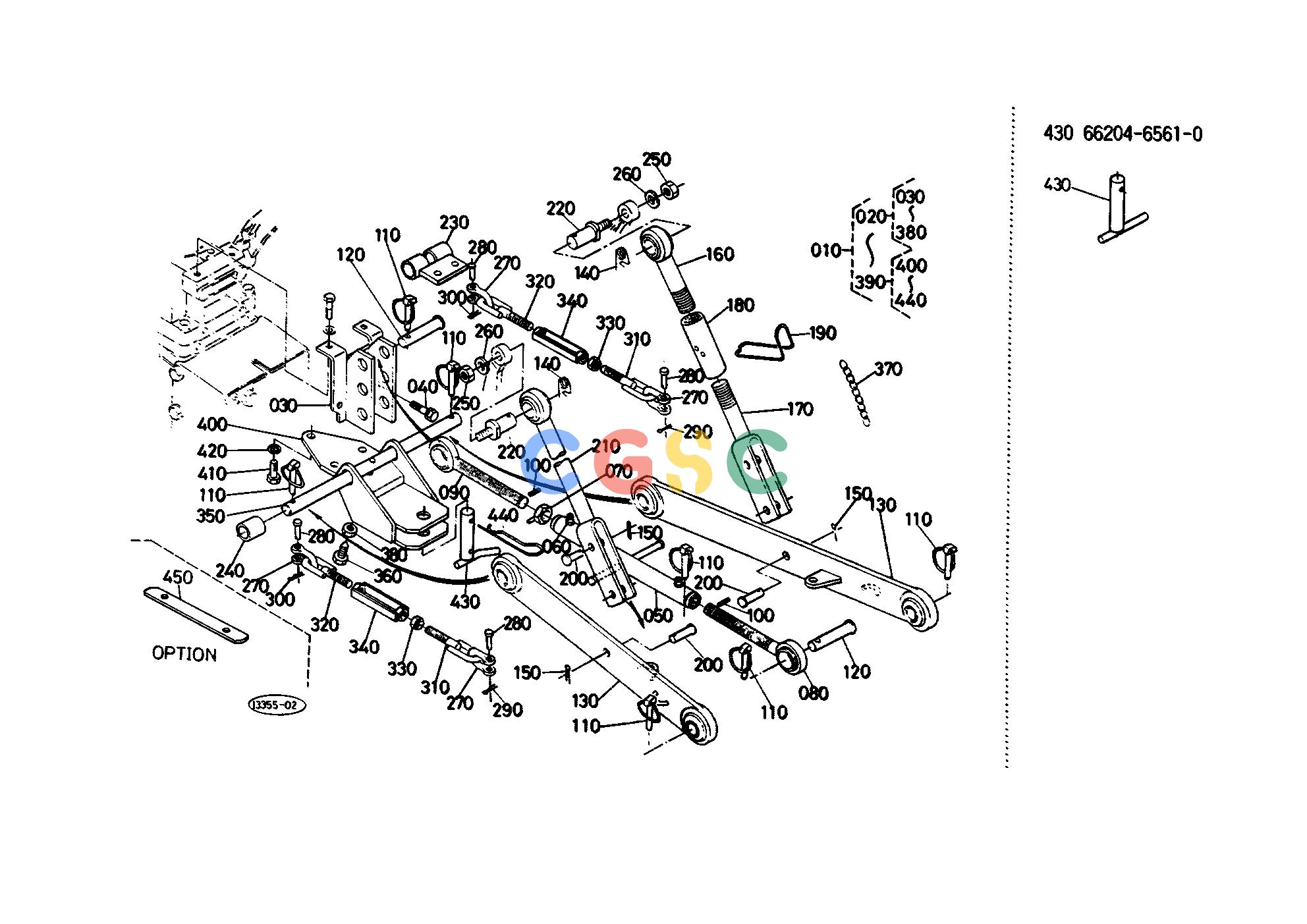

久保田零件查询T08100 3-POINT LINKAGE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
710 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620465100
|
[1] |
ASSY 3-POINT LINKAGE
|
61.6000(lbs); 28.000
|
| 020. |
6620465200
|
[1] |
ASSY ROD 3-POINT
|
48.4000(lbs); 22.000
|
| 030. |
9631606110
|
[1] |
BRACKET TOP LINK
|
2.6840(lbs); 1.220
|
| 040. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 050. |
6670665332
|
[1] |
LINK TOP
|
2.2000(lbs); 1.000
|
| 060. |
6721142940
|
[2] |
NIPPLE GREASE
|
0.0022(lbs); 0.001
|
| 070. |
6670665340
|
[1] |
NUT TOP LINK
|
0.1100(lbs); 0.050
|
| 080. |
6670665352
|
[1] |
JOINT TOP LINK LH
|
1.6060(lbs); 0.730
|
| 090. |
6670665362
|
[1] |
JOINT TOP LINK RH
|
1.6280(lbs); 0.740
|
| 100. |
0541100422
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 110. |
3415037640
|
[7] |
PIN SET
|
0.1320(lbs); 0.060
|
| 120. |
3115071360
|
[2] |
PIN JOINT
|
0.3652(lbs); 0.166
|
| 130. |
6740165213
|
[2] |
COMP.LINK LOWER
|
11.7480(lbs); 5.340
|
| 140. |
6671334340
|
[2] |
PIN SET
|
0.0286(lbs); 0.013
|
| 150. |
0551150425
|
[3] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 160. |
6670665232
|
[1] |
ROD LIFT RH
|
0.6930(lbs); 0.315
|
| 170. |
6670665240
|
[1] |
ROD LIFT LOWER RH
|
1.1000(lbs); 0.500
|
| 180. |
6670665250
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 190. |
6670665260
|
[1] |
SPRING
|
0.0902(lbs); 0.041
|
| 200. |
0512251240
|
[3] |
PIN JOINT
|
0.0858(lbs); 0.039
|
| 210. |
6670665272
|
[1] |
COMP.ROD LIFT LH
|
1.9800(lbs); 0.900
|
| 220. |
6670665280
|
[2] |
PIN LIFT
|
0.1804(lbs); 0.082
|
| 230. |
6740165290
|
[1] |
BRACKET CHECK CHAIN
|
1.3860(lbs); 0.630
|
| 240. |
6620465350
|
[2] |
SPACER
|
0.2640(lbs); 0.120
|
| 250. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 260. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 270. |
6740165370
|
[4] |
JOINT CHAIN
|
0.1892(lbs); 0.086
|
| 280. |
6670665380
|
[4] |
PIN SET
|
0.0462(lbs); 0.021
|
| 290. |
0551150318
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 300. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 310. |
6670665310
|
[2] |
BOLT TURNBUCKLE RH
|
0.3520(lbs); 0.160
|
| 320. |
6670665320
|
[2] |
BOLT TURNBUCKLE LH
|
0.3366(lbs); 0.153
|
| 330. |
0211250120
|
[2] |
NUT
|
0.0154(lbs); 0.007
|
| 340. |
9631605580
|
[2] |
TURNBUCKLE
|
0.3080(lbs); 0.140
|
| 350. |
6670486110
|
[1] |
PIN LOWER LINK
|
2.6180(lbs); 1.190
|
| 360. |
6620465120
|
[1] |
BOLT SET
|
0.1210(lbs); 0.055
|
| 370. |
6661634550
|
[1] |
CHAIN
|
1.4520(lbs); 0.660
|
| 380. |
0217450140
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
| 390. |
6620465502
|
[1] |
ASSY HITCH
|
7.9200(lbs); 3.600
|
| 400. |
6620465606
|
[1] |
COMP.HITCH
|
7.8980(lbs); 3.590
|
| 410. |
0115351235
|
[3] |
BOLT
|
0.0858(lbs); 0.039
|
| 420. |
0451250120
|
[3] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 430. |
6620465610
|
[1] |
PIN HITCH
|
0.0000(lbs); 0.000
|
| 430. |
6780029320
|
[1] |
PIN HITCH
|
0.4400(lbs); 0.200
|
| 440. |
3115029730
|
[1] |
PIN SPRING
|
0.0968(lbs); 0.044
|
| 450. |
6620486510
|
[1] |
DRAWBAR
|
6.7320(lbs); 3.060
|
