神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-037) - FAN & PULLEY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
115 次

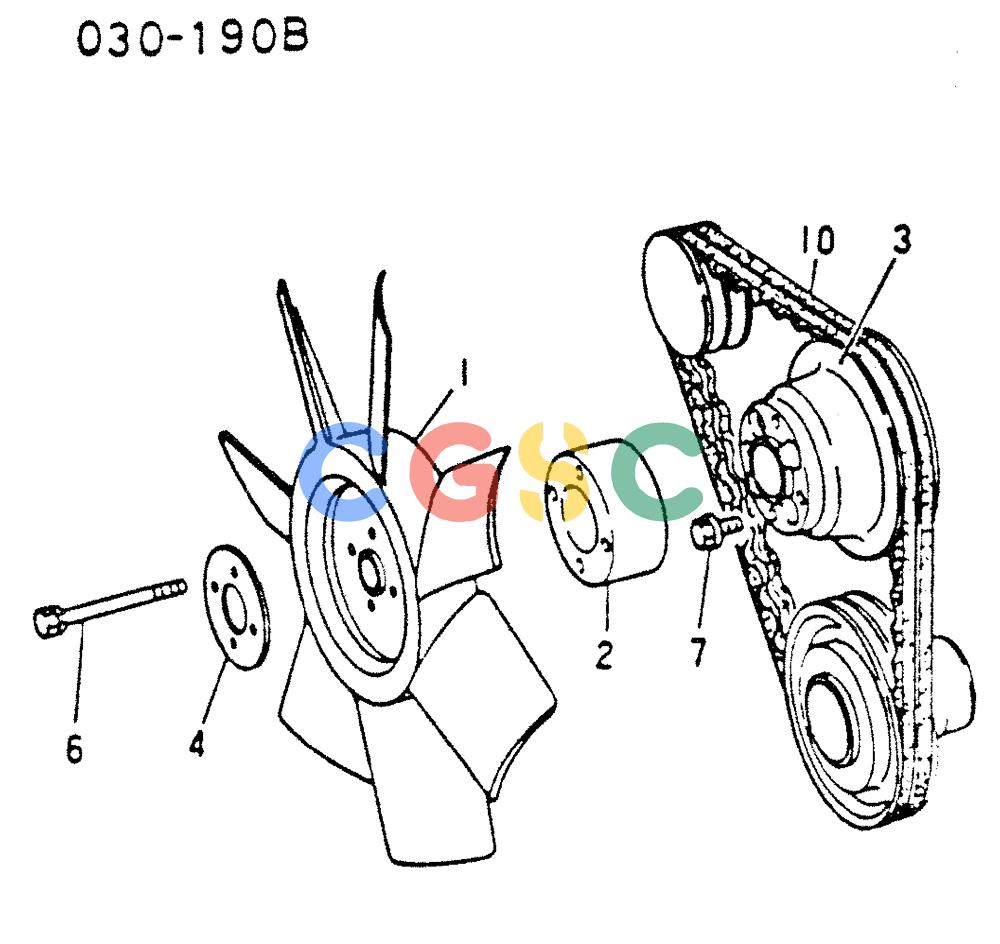

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME018185 | [1] | FAN | KOBSUCTION TYPE PPG D=600 |
| 2. | VAME088408 | [1] | SPACER | KOBL=73 M4 ONLY |
| . . | VAME088601 | [1] | SPACER | KOBM8 ONLY |
| 3. | VAME088406 | [1] | PULLEY | KOBWATER PUMP D168 A X 2 M4 ONLY |
| . . | VAME088406 | [1] | PULLEY | KOBWATER PUMP D168 A X 2 M8 ONLY |
| 4. | VA3004891500 | [1] | SPACER | KOBPLATE |
| 6. | VAMF300860 | [4] | BOLT | KOBBOLT, W/WSR 10 X 100 M4 ONLY |
| . . | VAMH000204 | [4] | BOLT | KOBBOLT, W/WSR 10 X 105 M8 ONLY |
| 7. | VAMH000713 | [4] | BOLT | KOBBOLT, FLANGE 10 X 20 M4 ONLY |
| . . | VAMH000713 | [4] | BOLT | KOBBOLT, FLANGE 10 X 20 M8 ONLY |
| 10. | VAME902206 | [1] | BELT, TRANSMISSION | KOB2BELTS A L=1190 Superseded by part number: VAMH014090 |
