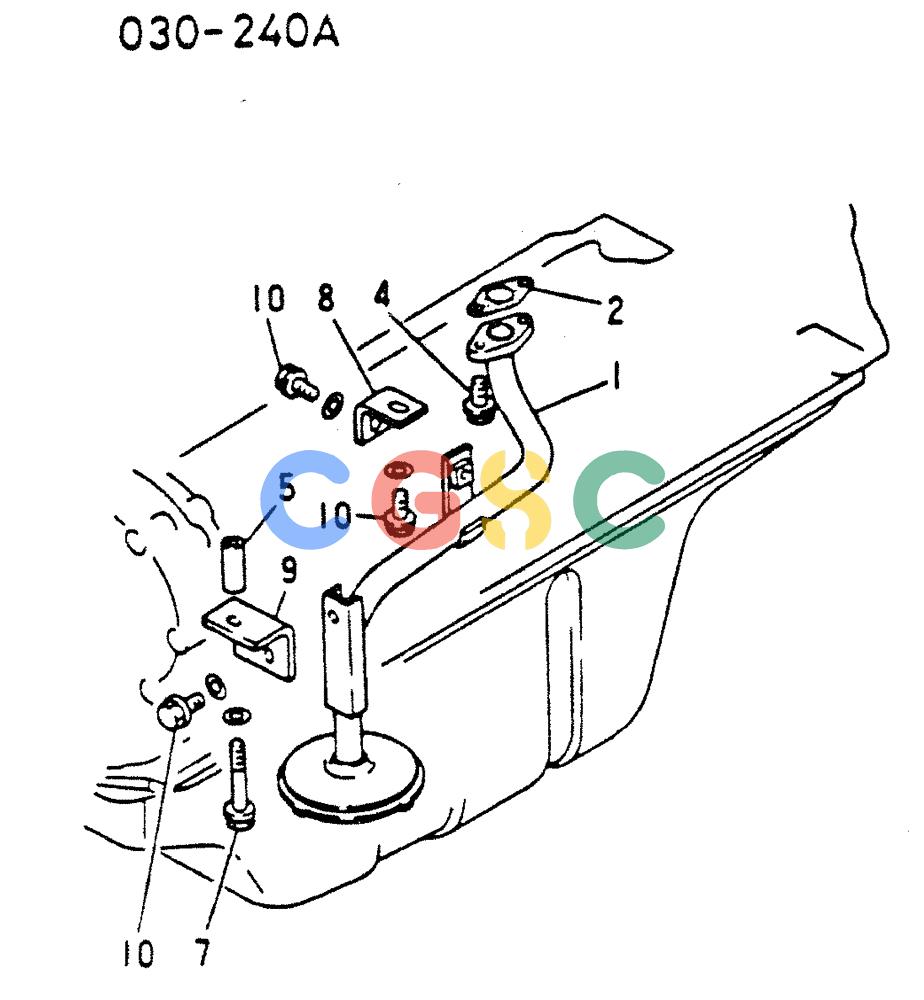

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-041) - OIL STRAINER 030-240A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088478 | [1] | STRAINER ELEMENT | KOB |
| 2. | VAME013757 | [1] | GASKET | KOBOIL STRAINER, Start Serial: 9002- Superseded by part number: VAME014532, 77268959, VAME013227 |
| . . | VAME014532 | [1] | GASKET | KOBOIL STRAINER, Serial Range: --9001 Superseded by part number: VAME013757 |
| 4. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE 8 X 16 |
| 5. | VA3183292900 | [1] | SPACER | KOBSPACER L=39 |
| 7. | VAMF140236 | [1] | BOLT | KOBBOLT, FLANGE 8 X 55 Superseded by part number: VAMF140235 |
| . . | VAMF450005 | [1] | WASHER | KOBWASHER, PLAIN 8 |
| 8. | VA3083680800 | [1] | STAY STAY | STAY STAY |
| 9. | VAME088454 | [1] | STAY | |
| 10. | VAMF140223 | [3] | BOLT | KOBBOLT, FLANGE 8 X 16 |
