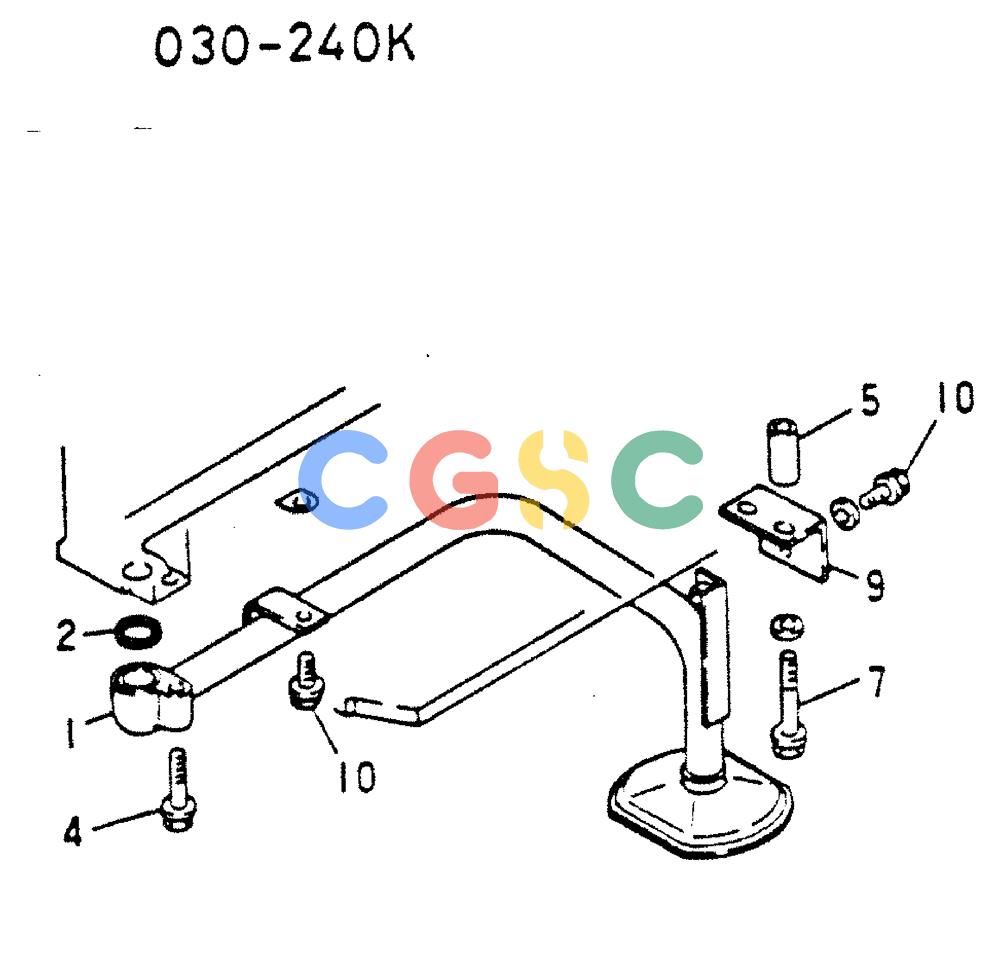

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-042) - OIL STRAINER 030-240K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088540 | [1] | STRAINER ASSY. | KOBOIL |
| 2. | VAMH035178 | [1] | O-RING | KOBO-RING 21.8 |
| 4. | VAMF140233 | [1] | BOLT | KOBBOLT, FLANGE 8 X 40 |
| 5. | VAMS456776 | [1] | SPACER | KOBSPACER L=40 |
| 7. | VAMF140236 | [1] | BOLT | KOBBOLT, FLANGE 8 X 55 Superseded by part number: VAMF140235 |
| . . | VAMF450005 | [1] | WASHER | KOBWASHER, PLAIN 8 |
| 9. | VA3083682200 | [1] | STAY | KOBSTAY |
| 10. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE 8 X 16 |
