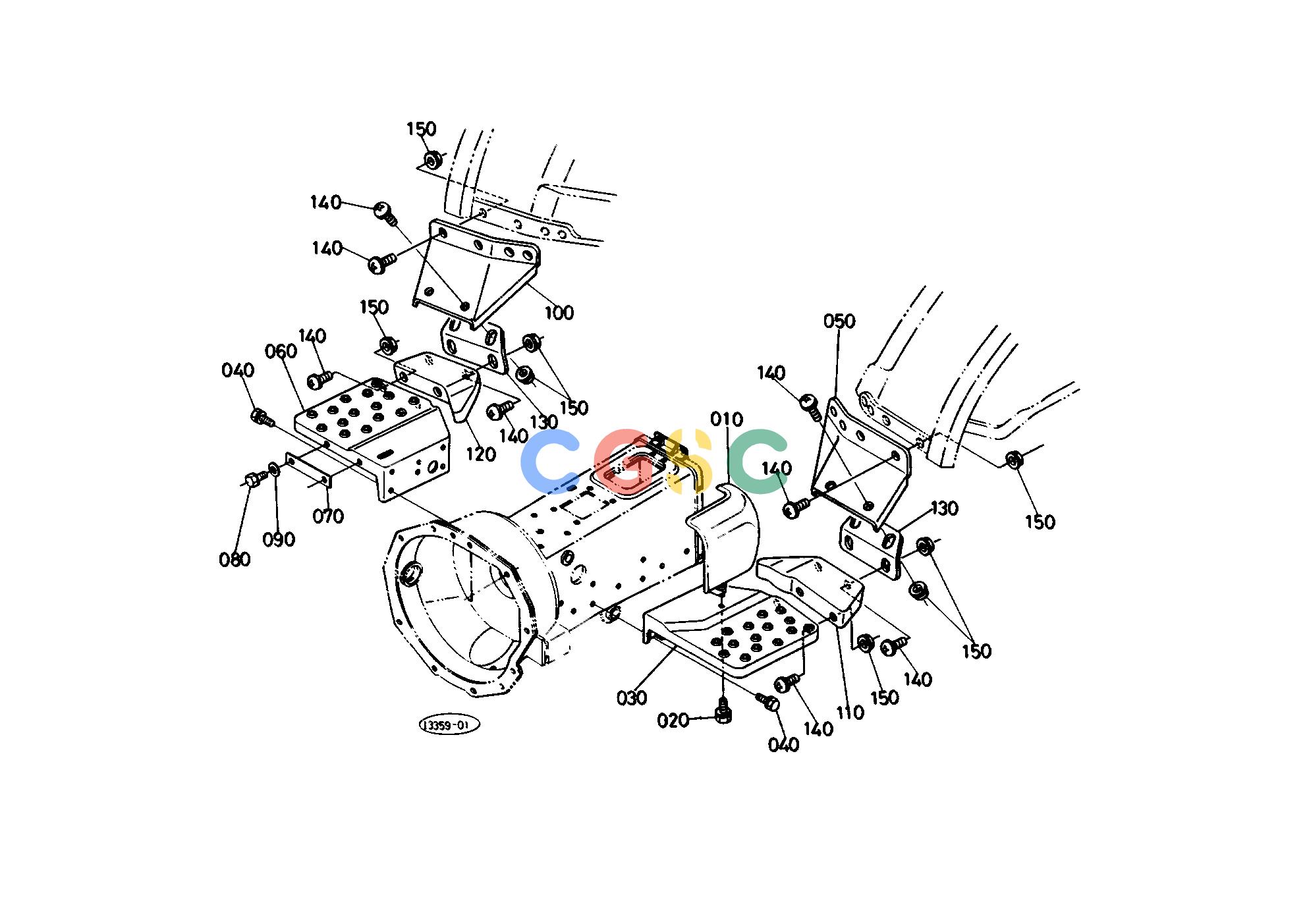

久保田零件查询T08500 STEP HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620482610
|
[1] |
COVER FOOT
|
0.4884(lbs); 0.222
|
| 020. |
0112350814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
6671151130
|
[1] |
STEP LH
|
4.5716(lbs); 2.078
|
| 040. |
0112350818
|
[10] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
6673251150
|
[1] |
PLATE SUB LH
|
0.2860(lbs); 0.130
|
| 060. |
6620451140
|
[1] |
STEP RH
|
3.9820(lbs); 1.810
|
| 060. |
H662051440
|
[1] |
STEP RH
|
3.9820(lbs); 1.810
|
| 070. |
6671151180
|
[1] |
PLATE FEEDING ADJ
|
0.0990(lbs); 0.045
|
| 080. |
0112350818
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 090. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 100. |
6673251160
|
[1] |
PLATE SUB RH
|
0.2970(lbs); 0.135
|
| 110. |
6620451050
|
[1] |
STEP AID LH
|
0.5280(lbs); 0.240
|
| 120. |
6620451060
|
[1] |
STEP AID RH
|
0.5060(lbs); 0.230
|
| 130. |
6673251170
|
[2] |
STAY
|
0.0880(lbs); 0.040
|
| 140. |
6670451150
|
[20] |
SCREW WITH WASHER
|
0.0220(lbs); 0.010
|
| 150. |
0275150060
|
[20] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
