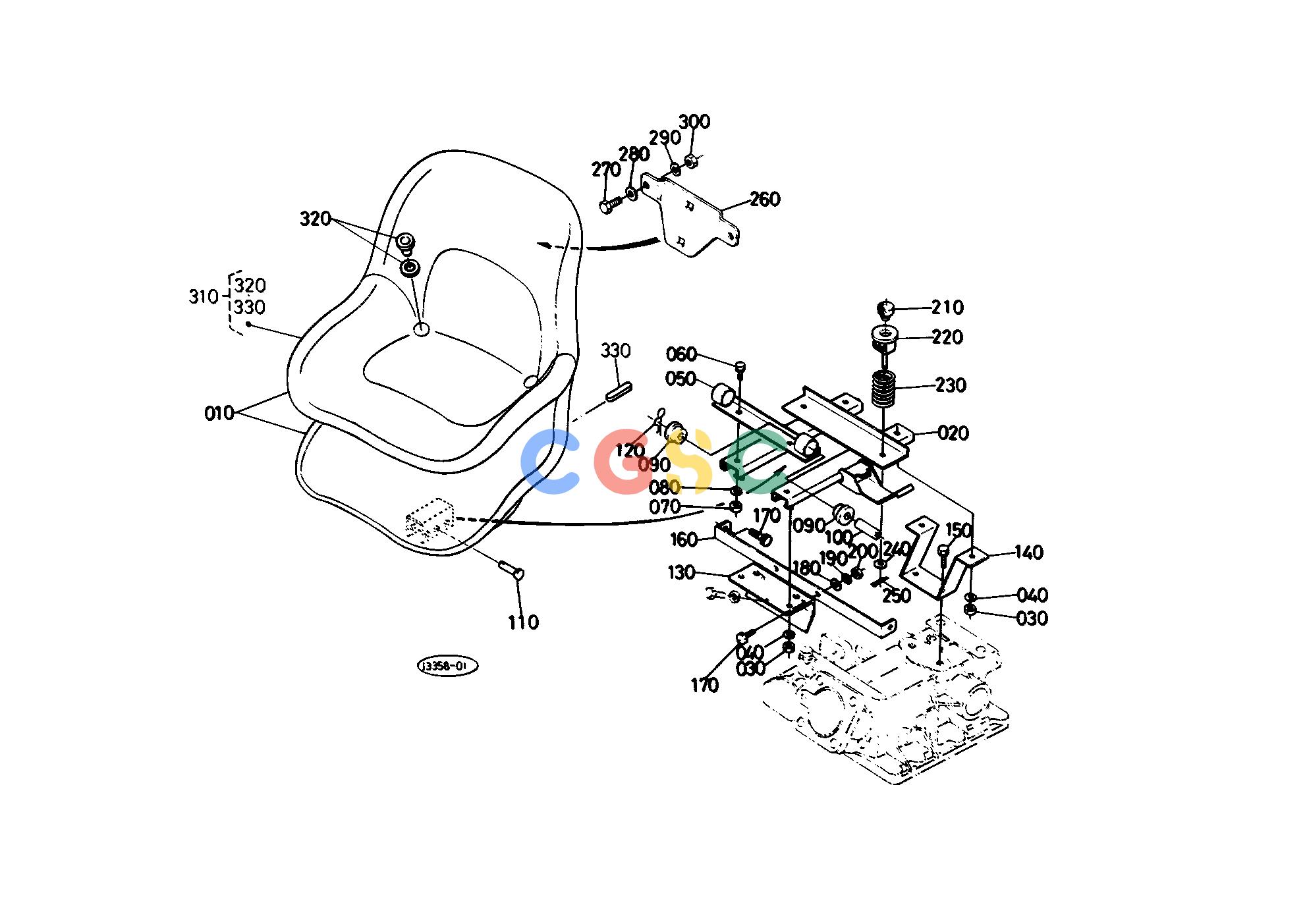

久保田零件查询T08400 SEAT HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
269 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6673245900
|
[1] |
ASSY SEAT
|
12.1000(lbs); 5.500
|
| 020. |
6620445930
|
[1] |
ADJUSTER SEAT
|
4.6200(lbs); 2.100
|
| 030. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 050. |
6620445940
|
[1] |
SUPPORT SEAT FRONT
|
0.6380(lbs); 0.290
|
| 060. |
0115350814
|
[2] |
BOLT
|
0.0198(lbs); 0.009
|
| 070. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
6659141540
|
[4] |
CUSHION
|
0.0220(lbs); 0.010
|
| 100. |
6659141550
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
| 110. |
0512251045
|
[2] |
PIN JOINT
|
0.0638(lbs); 0.029
|
| 120. |
0551651000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 130. |
6620445950
|
[1] |
SUPPORT ADJUSTER
|
0.0000(lbs); 0.000
|
| 140. |
6620445962
|
[1] |
SUPPORT ADJUSTER
|
0.4840(lbs); 0.220
|
| 150. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 160. |
6620445993
|
[1] |
STAY FENDER
|
0.5060(lbs); 0.230
|
| 170. |
0115350820
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 180. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 190. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 200. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 210. |
3216018440
|
[2] |
CUSHION
|
0.0286(lbs); 0.013
|
| 220. |
6620445970
|
[2] |
RETAINER SPRING
|
0.2200(lbs); 0.100
|
| 230. |
6620445980
|
[2] |
SPRING SEAT
|
0.2200(lbs); 0.100
|
| 240. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 250. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 260. |
6670454952
|
[1] |
BRACKET SMV
|
0.3300(lbs); 0.150
|
| 270. |
0105350616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 280. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 290. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 300. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 310. |
6670483500
|
[1] |
ASSY COVER SEAT
|
0.8800(lbs); 0.400
|
| 320. |
3511085050
|
[4] |
EYELET
|
0.0110(lbs); 0.005
|
| 330. |
3511085060
|
[3] |
PROTECTOR
|
0.0220(lbs); 0.010
|
