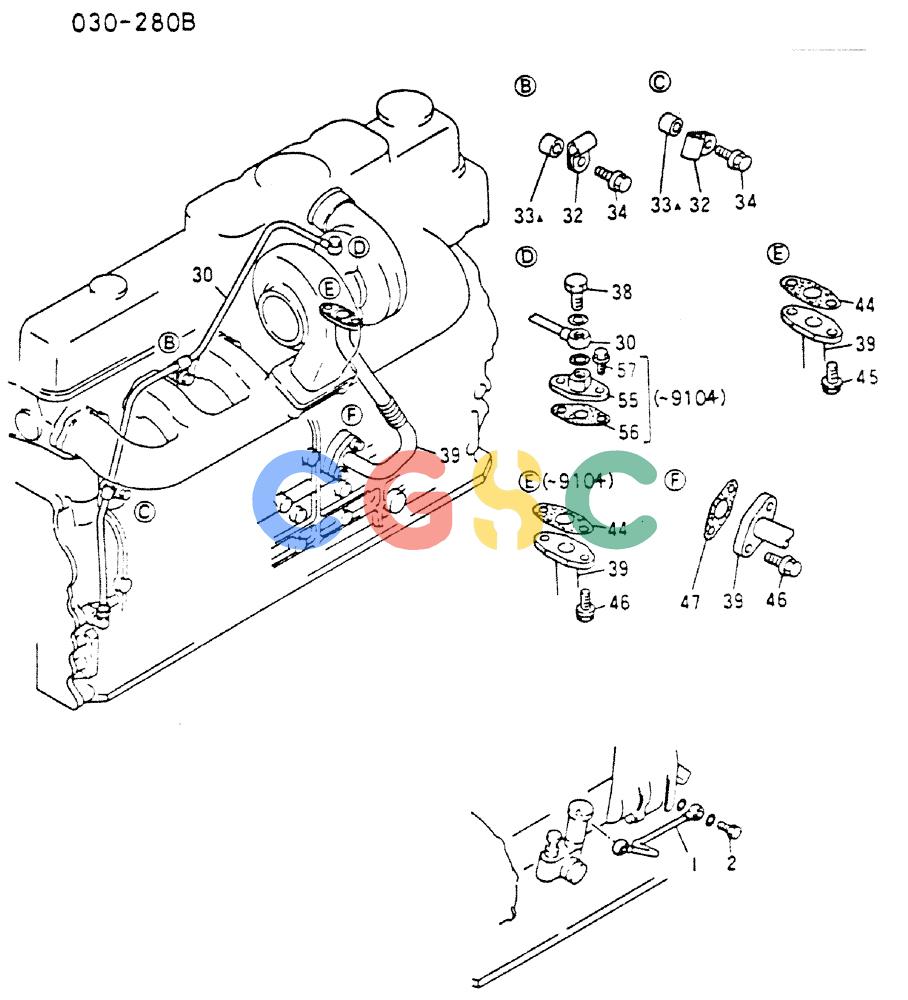

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-045) - OIL LINE 030-280B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME018182 | [1] | PIPE | KOB |
| 2. | VAMH000119 | [1] | BOLT | KOBBOLT, JOINT 10 X 25, Start Serial: 9009- |
| . . | VAMH037279 | [1] | BOLT | KOBBOLT, EYE, Serial Range: --9008 |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 30. | VAME088696 | [1] | PIPE, OIL TURBO INLET, Start Serial: 9105- | |
| . . | VAME088491 | [1] | PIPE | KOBTURBO INLET, Serial Range: --9104 |
| 32. | VA3003638302 | [2] | CLAMP CLAMP | CLAMP CLAMP |
| 33A. | VAME920041 | [2] | SPACER | KOBL=17 |
| 34. | VAMF140229 | [2] | BOLT | KOBBOLT, FLANGE 8 X 30 |
| 38. | VAMF650102 | [1] | SCREW | KOBBOLT, EYE |
| 39. | VAME088698 | [1] | PIPE | KOBTURBO OUTLET, Start Serial: 9105- |
| . . | VAME088496 | [1] | PIPE | KOBTURBO OUTLET, Serial Range: --9104 |
| 44. | VAME070510 | [1] | GASKET | KOB, Start Serial: 9105- Superseded by part number: VAME078273 |
| . . | VAME088499 | [1] | GASKET | KOB, Serial Range: --9104 Superseded by part number: VAME300515 |
| 45. | VAMH000931 | [2] | BOLT | KOBBOLT, FLANGE 10 X 18, Start Serial: 9105- Superseded by part number: 132361A1 |
| 46. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE 8 X 16, Start Serial: 9105- |
| . . | VAMF140223 | [4] | BOLT | KOBBOLT, FLANGE 8 X 16, Serial Range: --9104 |
| 47. | VAME013757 | [1] | GASKET | KOB, Serial Range: --9002 Superseded by part number: VAME014532, 77268959, VAME013227 |
| . . | VAME014532 | [1] | GASKET | KOB, Serial Range: --9001 Superseded by part number: VAME013757 |
| 55. | VAME070497 | [1] | HYD CONNECTOR | KOB, Serial Range: --9104 |
| 56. | VAME070509 | [1] | GASKET | KOB, Serial Range: --9104 Superseded by part number: VAME300512 |
| 57. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8 X 20, Serial Range: --9104 |
