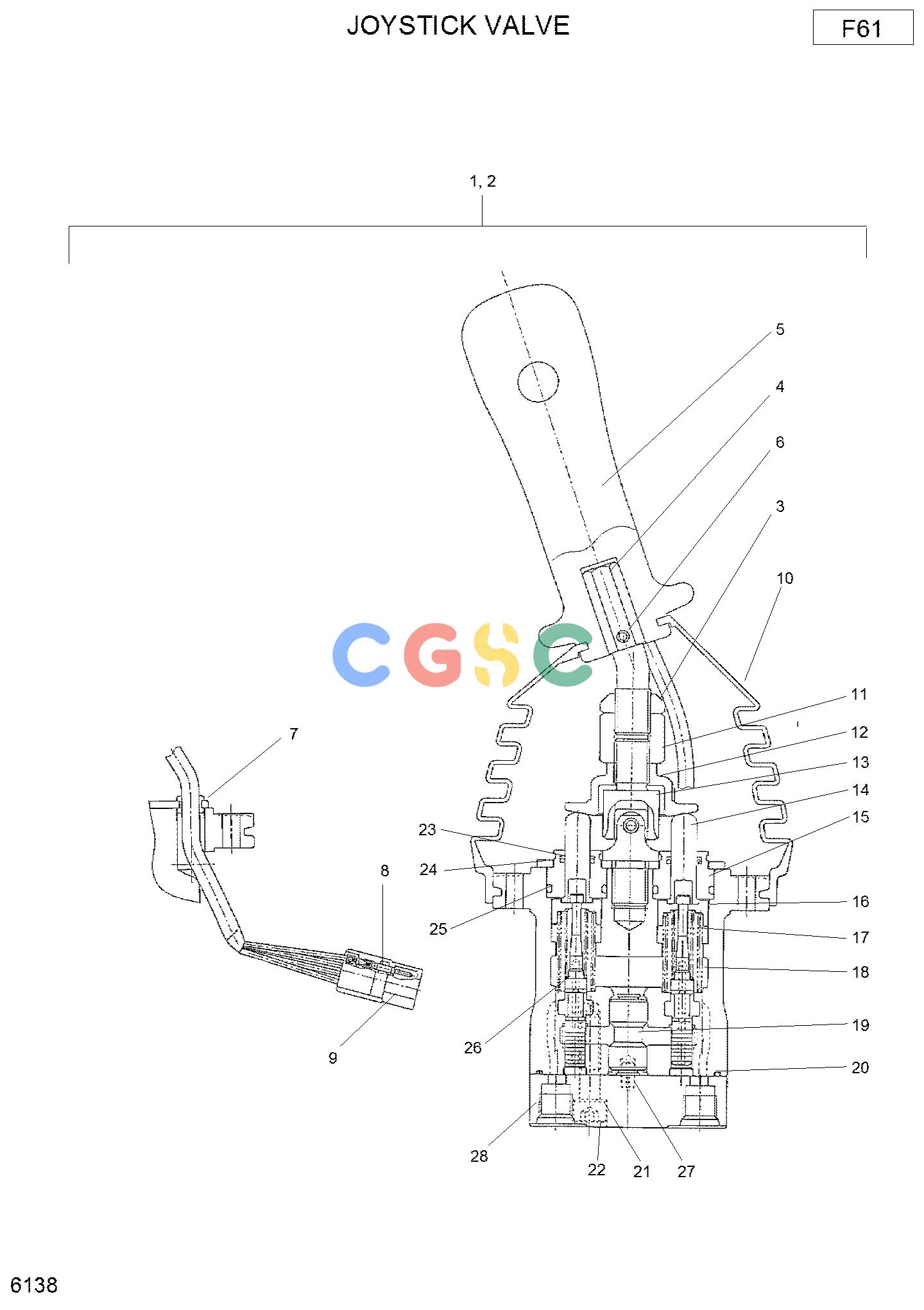

现代零件查询R75-7 JOYSTICK VALVEEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
257 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02805
|
[1] |
JOYSTICK VALVE-LH
|
|
| 2. |
XJDH-02806
|
[1] |
JOYSTICK VALVE-RH
|
|
| 3. |
XJDH-01971
|
[1] |
NUT-LOCK
|
|
| 4. |
XJDH-01972
|
[1] |
LEVER
|
|
| 5. |
XJDH-01973
|
[1] |
KNOB
|
|
| 6. |
XJDH-01974
|
[1] |
PIN-SPRING
|
|
| 7. |
XJDH-01975
|
[1] |
BUSHING
|
|
| 8. |
@
|
[2] |
CONNECTOR
|
|
| 9. |
@
|
[1] |
HOUSING(4P)
|
|
| 10. |
XJDH-01976
|
[1] |
BELLOWS
|
|
| 11. |
XJDH-02388
|
[1] |
NUT-ADJUSTING
|
|
| 12. |
XJDH-02389
|
[1] |
PLATE-CIRCULAR
|
|
| 13. |
XJDH-02390
|
[1] |
JOINT
|
|
| 14. |
XJDH-02391
|
[4] |
ROD-PUSH
|
|
| 15. |
XJDH-02392
|
[4] |
PLUG
|
|
| 16. |
@
|
[4] |
SEAT-SPRING
|
|
| 17. |
@
|
[4] |
SPRING
|
|
| 18. |
@
|
[4] |
SPRING
|
|
| 19. |
@
|
[1] |
PUSH
|
|
| 20. |
XJDH-02393
|
[1] |
O-RING
|
|
| 21. |
@
|
[2] |
WASHER-SEAL
|
|
| 22. |
@
|
[2] |
BOLT-SOCKET HEAD
|
|
| 23. |
XJDH-02394
|
[4] |
SAL
|
|
| 24. |
@
|
[1] |
PLATE
|
|
| 25. |
XJDH-02395
|
[4] |
O-RING
|
|
| 26. |
@
|
[4] |
WASHER
|
|
| 27. |
@
|
[1] |
PIN-SPRING
|
|
| 28. |
@
|
[1] |
PLATE-PORT
|
|
