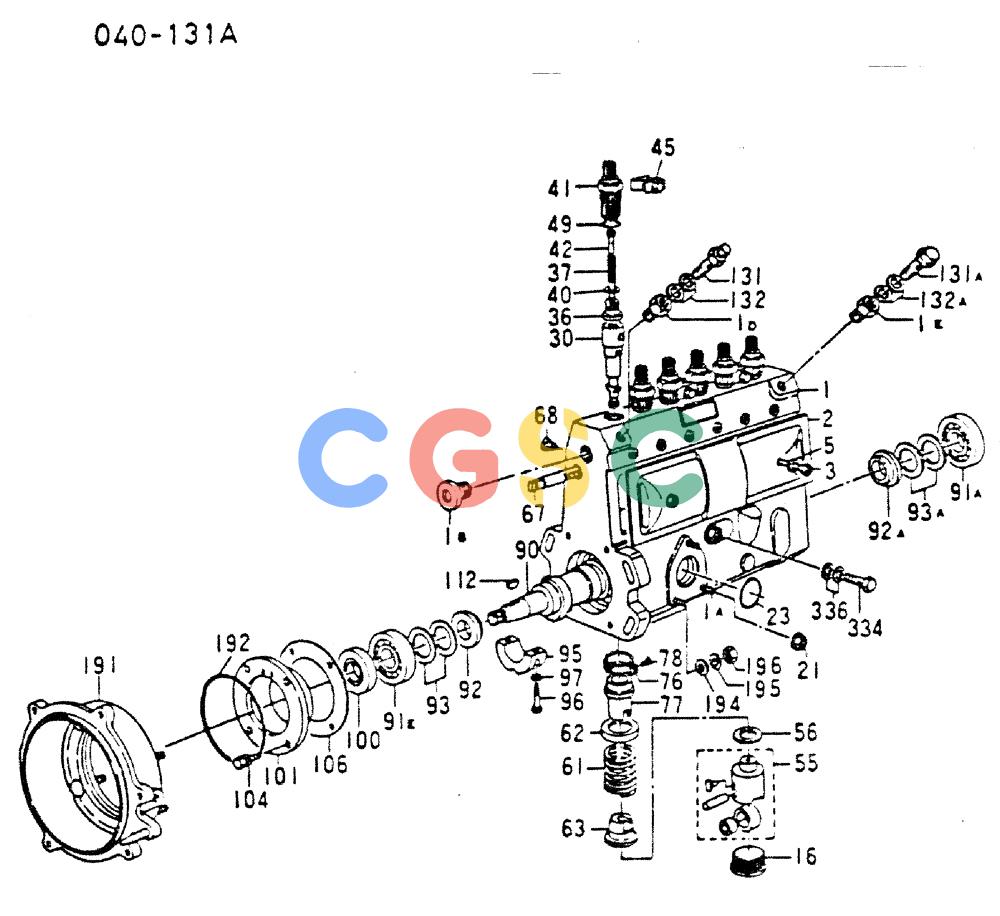

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-051) - INJECTION PUMP (INNER PARTS) 040-131A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-336. | VAME726478 | [1] | INJECTION PUMP ASSY A TYPE ZXL 1010699360 | |
| 1. | VAME722463 | [1] | HOUSING PUMP ZXL 1310736920 | HOUSING PUMP ZXL 1310736920 |
| 1A. | VAME705277 | [3] | STUD ZXL 0290406020 | |
| 1B. | VAME704235 | [1] | PLUG ZXL 1340260000 | |
| 1D. | VAME704003 | [1] | ADAPTER | KOBZXL 1310024500 |
| 1E. | VAME704300 | [1] | ADAPTER ZXL 1340020200 | |
| 2. | VAME704318 | [1] | COVER | KOBZXL 1310286020 |
| 3. | VAME704005 | [2] | SCREW | KOBZXL 1310171000 |
| 5. | VAME705151 | [2] | GASKET | KOBZXL 0293406020 |
| 16. | VAME704223 | [6] | PLUG | KOBZXL 1310341401 |
| 21l. | VAME704489 | [3] | NUT | KOBZXL 1392060400 Superseded by part number: VA1392060400 |
| 23. | VAME705152 | [1] | O-RING | KOBZXL 0296331010 |
| 30. | VAME704285 | [6] | PLUNGER | KOBASSY ZXL 1311521420 |
| 36. | VAME704286 | [6] | VALVE | KOBDELIVERY ZXL 1311600420 |
| 37. | VAME704105 | [6] | SPRING | KOBDELIVERY/V ZXL 1311121600 |
| 40. | VAME704237 | [6] | GASKET | KOBZXL 1311151600 |
| 41. | VAME704287 | [6] | HOLDER | KOBDELIVERY/V ZXL 1311167600 |
| 42. | VAME704288 | [6] | STOP | KOBZXL 1311172300 |
| 45. | VAME704013 | [3] | LOCKING PLATE | KOBZXL 1311220520 |
| 49. | VAME705358 | [6] | O-RING | KOBZXL 0296320030 |
| 55. | VAME704289 | [6] | RING | KOBTAPPET ASSY ZXL 1312002820 |
| 56. | VAME705155 | [1] | SHIM | KOBT=0.30 ZXL 0293110020 |
| . . | VAME705156 | [1] | SHIM | KOBT=0.40 ZXL 0293110030 |
| . . | VAME705157 | [1] | SHIM | KOBT=0.50 ZXL 0293110040 |
| . . | VAME705158 | [1] | SHIM | KOBT=0.60 ZXL 0293110050 |
| . . | VAME705159 | [1] | SHIM | KOBT=0.70 ZXL 0293110060 |
| . . | VAME705160 | [1] | SHIM | KOBT=0.80 ZXL 0293110070 |
| . . | VAME705161 | [1] | SHIM | KOBT=0.90 ZXL 0293110080 |
| . . | VAME705162 | [1] | SHIM | KOBT=1.00 ZXL 0293110090 |
| . . | VAME705163 | [1] | SHIM | KOBT=1.10 ZXL 0293110110 |
| . . | VAME705164 | [1] | SHIM | KOBT=1.20 ZXL 0293110120 |
| . . | VAME705165 | [1] | SHIM | KOBT=1.30 ZXL 0293110130 |
| . . | VAME705166 | [1] | SHIM | KOBT=1.40 ZXL 0293110140 |
| . . | VAME705167 | [1] | SHIM | KOBT=0.55 ZXL 0293110270 |
| . . | VAME705168 | [1] | SHIM | KOBT=0.65 ZXL 0293110280 |
| . . | VAME705169 | [1] | SHIM | KOBT=0.75 ZXL 0293110290 |
| . . | VAME705170 | [1] | SHIM | KOBT=0.85 ZXL 0293110310 |
| . . | VAME705171 | [1] | SHIM | KOBT=0.95 ZXL 0293110320 |
| . . | VAME705172 | [1] | SHIM | KOBT=1.05 ZXL 0293110330 |
| . . | VAME705173 | [1] | SHIM | KOBT=1.15 ZXL 0293110340 |
| . . | VAME705174 | [1] | SHIM | KOBT=1.25 ZXL 0293110350 |
| . . | VAME705175 | [1] | SHIM | KOBT=1.50 ZXL 0293110490 |
| . . | VAME705176 | [1] | SHIM | KOBT=1.60 ZXL 0293110500 |
| . . | VAME705177 | [1] | SHIM | KOBT=0.20 ZXL 0293110580 |
| . . | VAME705178 | [1] | SHIM | KOBT=0.25 ZXL 0293110590 |
| . . | VAME705179 | [1] | SHIM | KOBT=0.35 ZXL 0293110600 |
| . . | VAME705180 | [1] | SHIM | KOBT=0.45 ZXL 0293110610 |
| . . | VAME705181 | [1] | SHIM | KOBT=1.35 ZXL 0293110620 |
| . . | VAME705182 | [1] | SHIM | KOBT=1.45 ZXL 0293110630 |
| . . | VAME705183 | [1] | SHIM | KOBT=1.55 ZXL 0293110710 |
| 61. | VAME704294 | [6] | SPRING | KOBPLUNGER ZXL 1312152600 |
| 62. | VAME704110 | [6] | SEAT | KOBSPG UPPER ZXL 1312160100 |
| 63. | VAME704295 | [6] | SEAT | KOBSPG LOWER ZXL 1312170200 |
| 67. | VAME704021 | [1] | RACK | KOBCONTROL ZXL 1312560000 |
| 68. | VAME704022 | [1] | SCREW | KOBRACK STOP ZXL 1312260300 Superseded by part number: VA1312260300 |
| 76. | VAME704023 | [6] | PINION | KOBZXL 1312400100 |
| 77. | VAME704112 | [6] | SLEEVE | KOBCONTROL ZXL 1312410100 |
| 78. | VAME704025 | [6] | SCREW | KOBPINION CLAMP ZXL 1312420100 |
| 90. | VAME722365 | [1] | CAMSHAFT | KOBZXL 1313713500 |
| 91A. | VAME705186 | [1] | BEARING | KOBZXL 0166302030 |
| . . | VAME705187 | [1] | BEARING | KOBZXL 0282017020 |
| 91E. | VAME705184 | [1] | BEARING | KOBZXL 0166402030 |
| . . | VAME705185 | [1] | BEARING | KOBZXL 0282020020 |
| 92. | VAME704028 | [1] | RING | KOBZXL 1313021000 |
| 92A. | VAME704137 | [1] | RING | KOBZXL 1313020300 |
| 93. | VAME705200 | [1] | SHIM | KOBT=0.10 ZXL 0293120220 |
| . . | VAME705201 | [1] | SHIM | KOBT=0.12 ZXL 0293120230 |
| . . | VAME705202 | [1] | SHIM | KOBT=0.14 ZXL 0293120240 |
| . . | VAME705203 | [1] | SHIM | KOBT=0.16 ZXL 0293120250 |
| . . | VAME705204 | [1] | SHIM | KOBT=0.18 ZXL 0293120260 |
| . . | VAME705205 | [1] | SHIM | KOBT=0.50 ZXL 0293120270 |
| . . | VAME705206 | [1] | SHIM | KOBT=0.30 ZXL 0293120290 |
| . . | VAME705207 | [1] | SHIM | KOBT=1.00 ZXL 0293120300 |
| 93A. | VAME705189 | [1] | SHIM | KOBT=0.10 ZXL 0293117010 |
| . . | VAME705190 | [1] | SHIM | KOBT=0.12 ZXL 0293117020 |
| . . | VAME705191 | [1] | SHIM | KOBT =0.14 ZXL 0293117030 |
| . . | VAME705192 | [1] | SHIM | KOBT=0.16 ZXL 0293117040 |
| . . | VAME705193 | [1] | SHIM | KOBT=0.18 ZXL 0293117050 |
| . . | VAME705194 | [1] | SHIM | KOBT=0.50 ZXL 0293117060 |
| . . | VAME705195 | [1] | SHIM | KOBT=1.00 ZXL 0293117070 |
| . . | VAME705196 | [1] | SHIM | KOBT=0.30 ZXL 0293117090 |
| . . | VAME705197 | [1] | SHIM | KOBT=0.70 ZXL 0293117210 |
| . . | VAME705198 | [1] | SHIM | KOBT =1.40 ZXL 0293117220 |
| . . | VAME726779 | [1] | SHIM | KOBT =2.4 ZXL 1394170000 |
| 95. | VAME704350 | [1] | BEARING | KOBCTR ZXL 1313061000 |
| 96. | VAME705208 | [2] | SCREW | KOBZXL 0290505010 |
| 97. | VAME705209 | [2] | GASKET | KOBZXL 0265050940 |
| 100. | VAME705210 | [1] | OIL SEAL | KOBZXL 0296220190 Superseded by part number: VA0296220190 |
| 101. | VAME704115 | [1] | COVER | KOBBRG ZXL 1313301800 |
| 104. | VAME705211 | [4] | BOLT | KOBZXL 0200062040 |
| 106. | VAME704116 | [1] | GASKET | KOBZXL 1313211700 |
| 112. | VAME705214 | [1] | KEY, WOODRUFF ZXL 0294704030 | |
| 131. | VAME704306 | [1] | VALVE | KOBOVER FLOW ZXL 1314245520 Superseded by part number: VA1314245520 |
| 131A. | VAME717882 | [1] | BOLT | KOBEYE ZXL 1398140900 Superseded by part number: VA1398140900 |
| 132. | 3126106400 | [2] | GASKET | KOBGASKET ZXL 0293414130 Superseded by part number: VA0293414130 |
| 132A. | 3126106400 | [2] | GASKET | KOBGASKET ZXL 0293414130 Superseded by part number: VA0293414130 |
| 191. | VAME723443 | [1] | BRACKET | KOBZXL 1314600520 |
| 192. | VAME705219 | [1] | O-RING | KOBZXL 0296375020 Superseded by part number: VA0296375020 |
| 194. | VAME705332 | [4] | WASHER | KOBZXL 0140110140 Superseded by part number: VA0140110140 |
| 195. | VAME705221 | [4] | WASHER, SPG ZXL 0141110440 | |
| 196. | VAME717958 | [4] | NUT ZXL 0131210040 | |
| 334. | VAME705223 | [1] | BOLT | KOBEYE ZXL 0297310120 |
| 336. | VA0375124001 | [2] | GASKET | KOBGASKET ZXL 0265101340 Superseded by part number: VA0265101340 |
