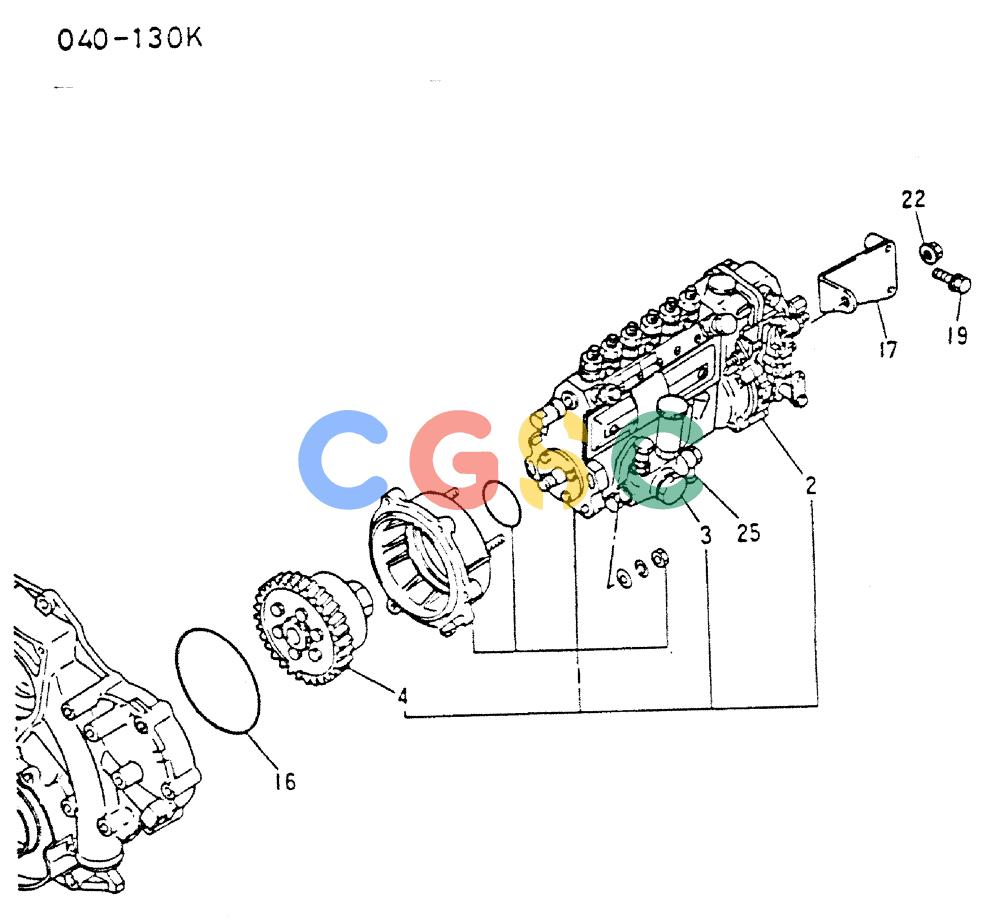

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-050) - FUEL INJECTION PUMP GENERAL 040-130K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME088632 | [1] | FUEL INJECTION PUMP | KOBGENERAL ASSY ZXL 1016916150 |
| 1. | VAME727260 | [1] | INJECTION PUMP ASSY A TYPE CF GN040-131B | |
| 2. | VAME727073 | [1] | GOVERNOR ASSY RSV TYPE CF GN040-132D | |
| 3. | VAME730303 | [1] | FEED PUMP | KOBFUEL ASSY CF GN040-133A |
| 4. | VAME727261 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY CF GN040-134A Superseded by part number: VA1056760730 |
| 16. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| 17. | VAME088579 | [1] | DIFFUSER BRACKET, I/P | DIFFUSER BRACKET, I/P |
| 19. | VAMH000711 | [2] | SCREW | KOBBOLT, FLANGE 10 X 40 Superseded by part number: 135146A1 |
| 22. | VAMF434105 | [1] | NUT | KOBNUT, FLANGE 10 |
| 25. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT, SWIVEL |
