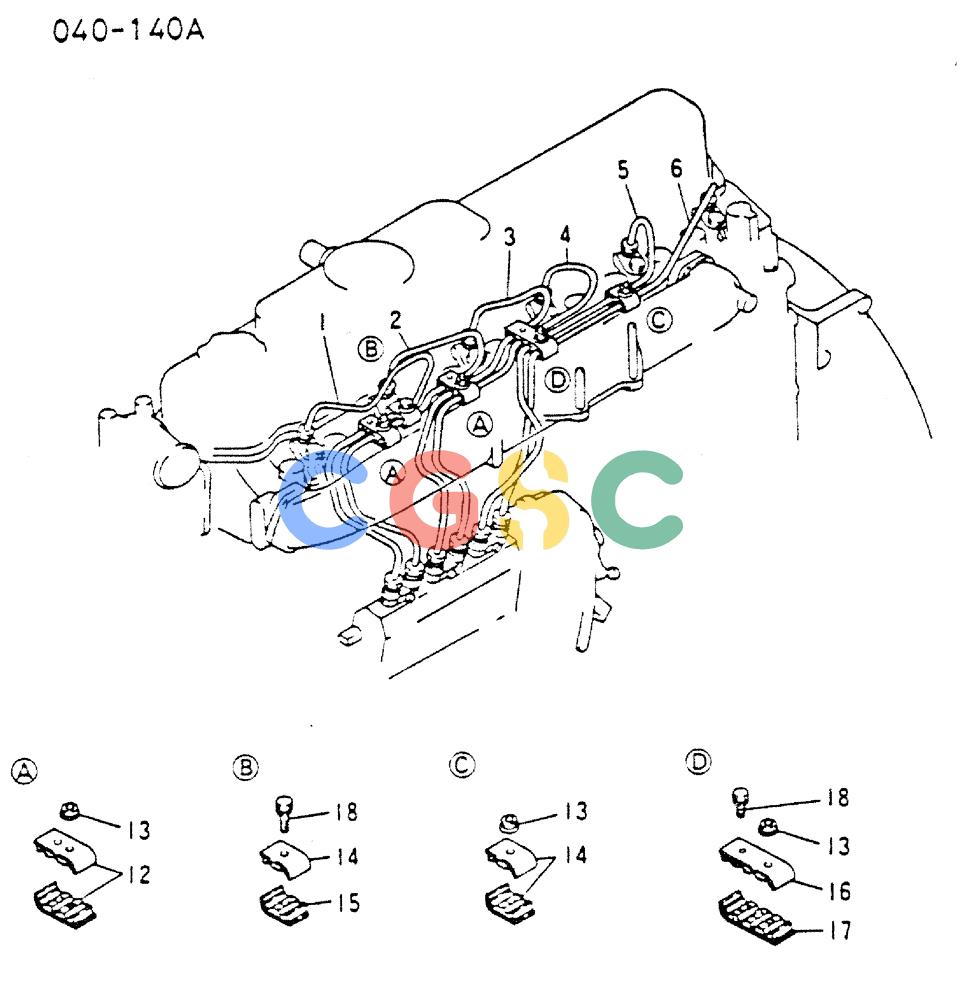

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-056) - FUEL INJECTION PIPE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088610 | [1] | PIPE | KOBN0.1, Start Serial: 8910- |
| . . | VAME018174 | [1] | PIPE | KOB, Serial Range: --8909 |
| 2. | VAME088611 | [1] | PIPE | KOBNO.2, Start Serial: 8910- |
| . . | VAME018175 | [1] | PIPE | KOB, Serial Range: --8909 |
| 3. | VAME018176 | [1] | PIPE | KOB |
| 4. | VAME018177 | [1] | PIPE | KOB |
| 5. | VAME018178 | [1] | PIPE | KOB |
| 6. | VAME018179 | [1] | PIPE | KOB |
| 12. | VAMH021250 | [4] | CLAMP | KOBCLAMP A |
| 13. | VAMF434103 | [4] | NUT | KOBNUT, FLANGE 6 |
| l4. | VAMH020258 | [3] | CLAMP | KOBCLAMP Superseded by part number: 134717A1 |
| 15. | VAMH020259 | [1] | CLAMP | KOBCLAMP Superseded by part number: 134718A1 |
| 16. | VAMH020260 | [1] | CLAMP | KOBCLAMP |
| 17. | VAMH021253 | [1] | CLAMP | KOBCLAMP |
| 18. | VAMF240029 | [2] | SCREW | KOBBOLT, W/WSR 6 X 25 |
