神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-057) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
528 次

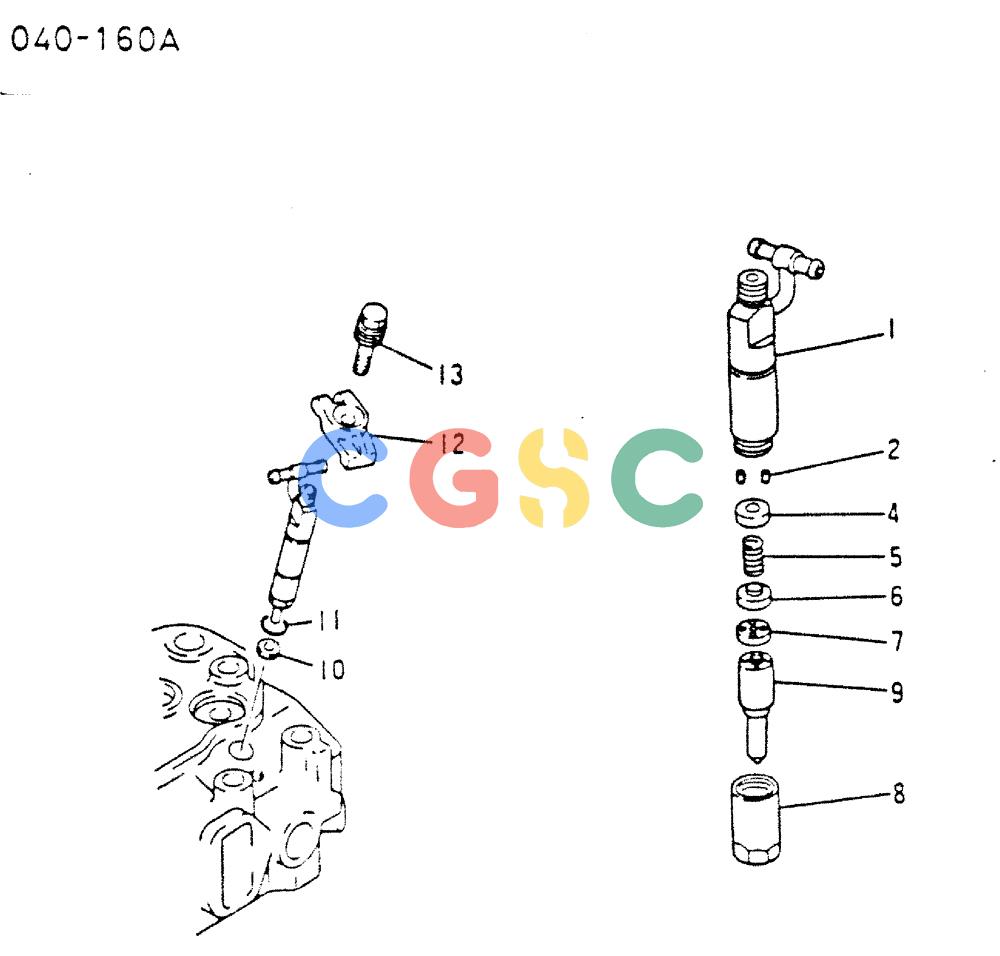

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME080082 | [6] | NOZZLE | KOBASSY 180KG/CM2 ZXL 1051184270 |
| 1-8. | VAME722459 | [6] | NOZZLE HOLDER | KOBASSY ZXL 1050483130 Superseded by part number: VAME731729 |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER ZXL 1050483130 |
| 2. | VAME705419 | [12] | PIN | KOBZXL 1505085900 |
| . . | VAME722370 | [1] | SHIM | KOBT=0.500 ZXL 1505310000 Superseded by part number: VA1505385700, 77270173 |
| . . | VAME722371 | [1] | SHIM | KOBZXL 1505310100 Superseded by part number: VA1505915200 |
| . . | VAME722372 | [1] | SHIM | KOBZXL 1505310200 Superseded by part number: VAME741426 |
| . . | VAME722373 | [1] | SHIM | KOBZXL 1505310300 |
| . . | VAME722374 | [1] | SHIM | KOBZXL 1505310400 Superseded by part number: VA1505916000 |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON0.025MM INTERVAL |
| . . | VAME722406 | [1] | SHIM | KOBZXL 1505313600 |
| . . | VAME722407 | [1] | SHIM | KOBZXL 1505313700 |
| . . | VAME722408 | [1] | SHIM | KOBZXL 1505313800 |
| . . | VAME722409 | [1] | SHIM | KOBZXL 1505313900 |
| . . | VAME722410 | [1] | SHIM | KOBZXL 1505314000 Superseded by part number: VA1505925000 |
| 5. | VAME705421 | [6] | SPRING | KOBNOZZLE ZXL 1505624300 |
| 6. | VAME705420 | [6] | SEAT | KOBSPG ZXL 1505159900 |
| 7. | VAME705422 | [6] | SPACER | KOBZXL 1505244200 |
| 8. | VAME705423 | [6] | NUT | KOBRETAINING ZXL 1506550000 |
| 9. | VAME017842 | [6] | NOZZLE | KOBTIP 5-0.3 ZXL 1050170100 |
| 10. | VAME016564 | [6] | GASKET | KOBNOZZLE T=4.7 |
| 11. | VAMF520010 | [6] | O-RING | KOBO-RING 15 Superseded by part number: 132546A1 |
| 12. | VAME016543 | [6] | BRIDGE | KOBNOZZLE ND 0934005030 |
| 13. | VAMH000816 | [6] | BOLT | KOBBOLT, BRIDGE 10 X 52 |
