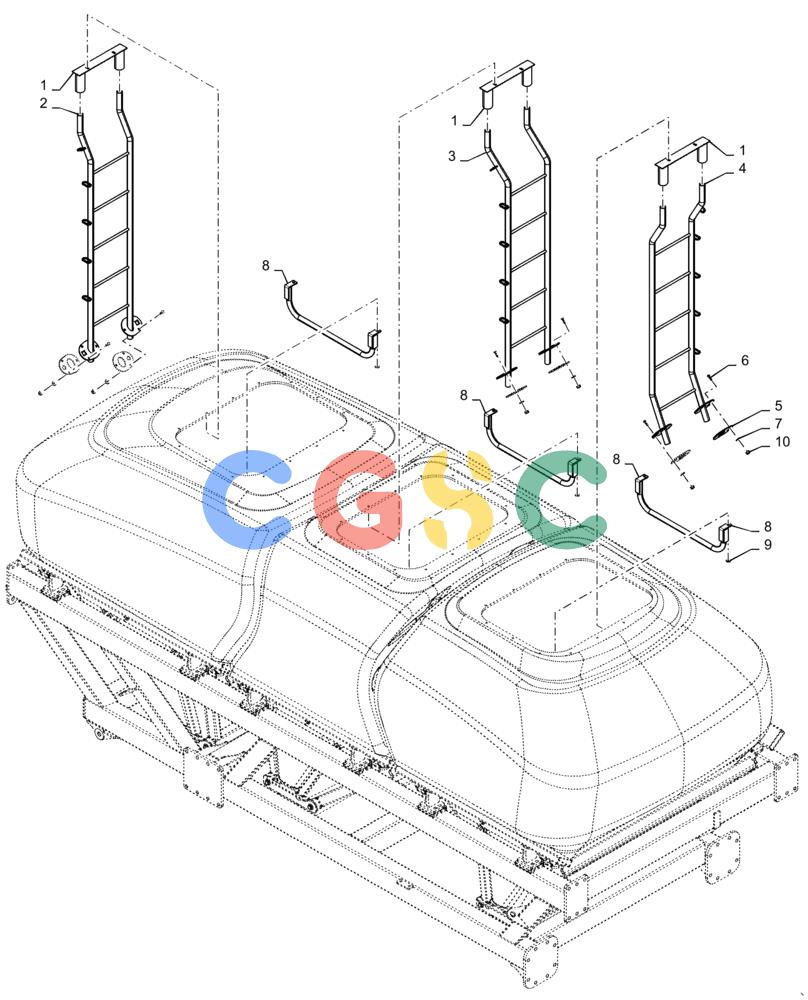

凯斯零件查询(4955) - PRECISION AIR CART (11/15-) (80.150.AJ[02]) - LADDERS 435 460 BUSHELL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47492768
|
[3] |
MOUNT
|
SAS
Ladder Top
|
| 2. |
47633607
|
[1] |
LADDER
|
SAS
190 Bu Tank Black Superseded by part number: 47931220
|
| 3. |
47625986
|
[1] |
LADDER
|
SAS
100 Bu Tank Black
|
| 4. |
47633611
|
[1] |
LADDER
|
SAS
140 Bu Tank Black Superseded by part number: 47931223
|
| 5. |
47625984
|
[6] |
SEAL
|
SAS
Ladder Mount
|
| 6. |
86512443
|
[18] |
CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd
|
ZED
|
| 7. |
86639313
|
[18] |
WASHER,9mm ID x 24mm OD x 2mm Thk
|
RAC
|
| 8. |
47750291
|
[3] |
STEP
|
SAS
Tank Hatch Black
|
| 9. |
86624176
|
[6] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
FOR
Superseded by part number: 14496621
|
| 10. |
86629542
|
[18] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
