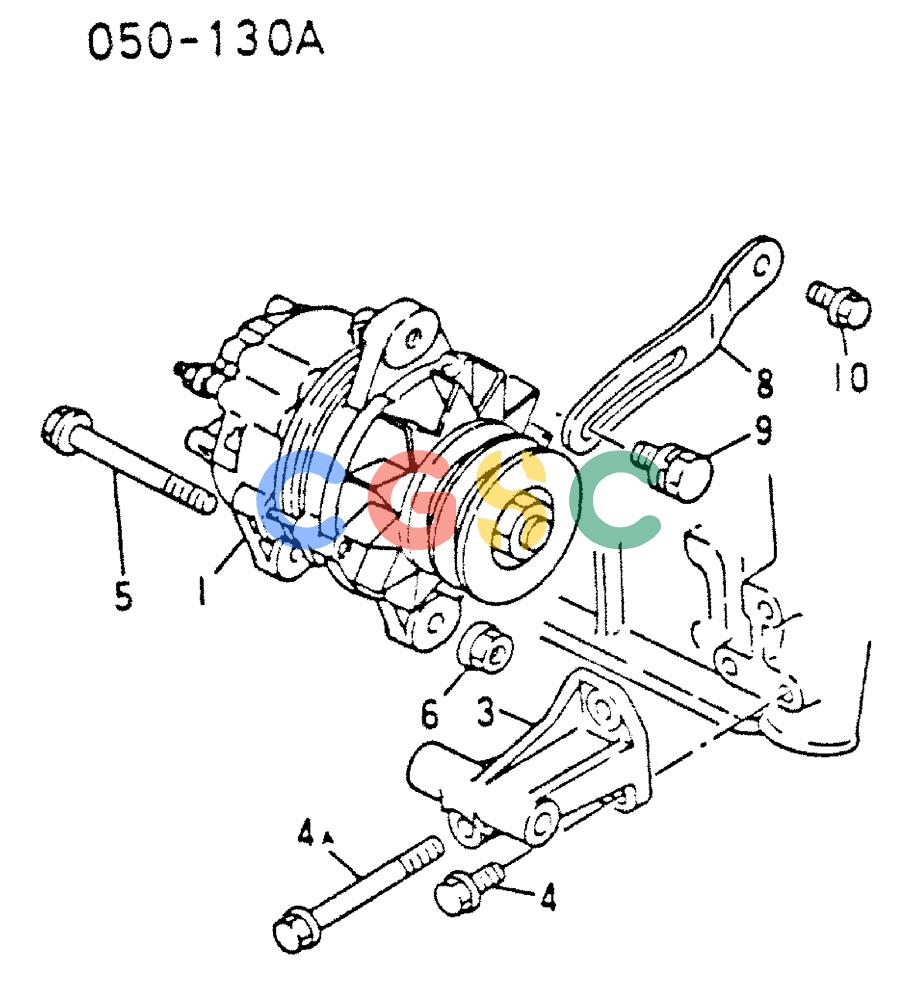

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-064) - ALTERNATOR GENERAL 050-130A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME087508 | [1] | ALTERNATOR | KOBASSY, MEC 24V-30A CF GN050-131D |
| 3. | VAME088247 | [1] | BRACKET | KOB |
| 4. | VAMH000726 | [2] | BOLT | KOBBOLT, FLANGE 10 X 22 |
| 4A. | VAMH000732 | [1] | SCREW | KOBBOLT, FLANGE 10 X 95 Superseded by part number: 134859A1 |
| 5. | VAMH000703 | [1] | BOLT | KOBBOLT, FLANGE 12 X 125 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 8. | VAME018077 | [1] | ADJUSTING PLATE | KOB |
| 9. | VAMH000372 | [1] | SCREW | KOBB0LT, W/WSR 12 X 30 Superseded by part number: 135147A1 |
| 10. | VAMH000713 | [1] | BOLT | KOBBOLT, FLANGE 10 X 20 |
