神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-066) - ALTERNATOR GENERAL (INNER PARTS) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
177 次

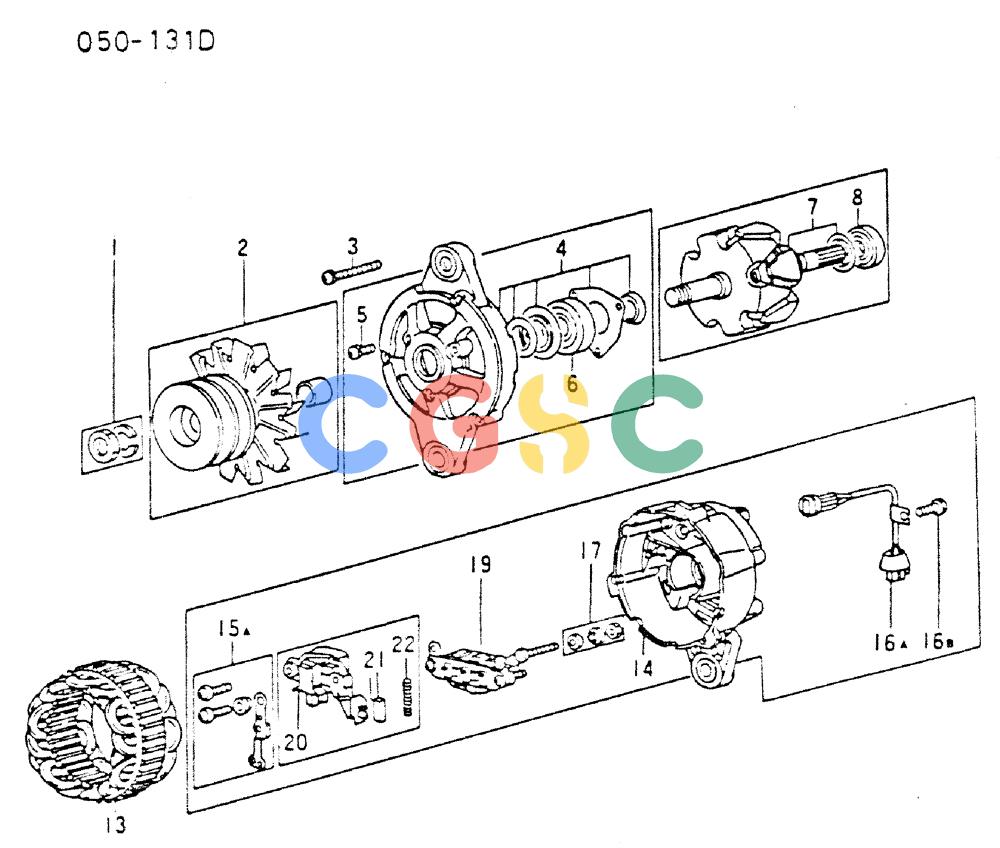

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-22. | VAME087508 | [1] | ALTERNATOR | KOBASSY, MEC 24V-30A MEC A002T72999 |
| 1. | VAME700588 | [1] | NUT | KOBMEC A529X06571 Superseded by part number: 135142A1 |
| 2. | VAME700882 | [1] | PLATE | KOBA X 2 MEC A628T56670 |
| 3. | VAME700590 | [1] | SCREW SET MEC A414X18471 | SCREW SET MEC A414X18471 |
| 4-6. | VAME700633 | [1] | PANEL | KOBFR MEC A640T30170 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, FR |
| 5. | VAMM502367 | [1] | SCREW SCREW SET MEC A414X10671 | SCREW SCREW SET MEC A414X10671 |
| 6. | VAME700535 | [1] | BEARING | KOBFR MEC S930P37201 Superseded by part number: VAS930P37201, VAS930P37270 |
| 7-8. | VAME700606 | [1] | ROTOR | KOBMEC A880T28770 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR |
| 8. | VAME700746 | [1] | BALL BEARING | KOBRE MEC S930P35670, Start Serial: 8712- Superseded by part number: VAS930P80870 |
| . . | VAME700594 | [1] | BEARING | KOBBEARING, RE MEC S930P61901, Serial Range: --8711 |
| 13. | VAME700607 | [1] | STATOR | KOBMEC A383T25670 |
| 14-22. | VAME700766 | [1] | U-BRACKET | KOBASSY, RE MEC A641T63370 |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, RE |
| 15A. | VAME700596 | [1] | TERMINAL | KOBSET MEC A450X14471 |
| 16A. | VAME700639 | [1] | HYD CONNECTOR | KOBMEC A309D11271 Superseded by part number: VAA309D11271, 77269928 |
| 16B. | VAME700154 | [1] | BOLT MEC A981S60102 | BOLT MEC A981S60102 |
| 17. | VAME700821 | [1] | NUT | KOBMEC A529X07071 |
| 19. | VAME700767 | [1] | RECTIFIER | KOBASSY MEC A860T21270 |
| 20-22. | VAME700635 | [1] | REGULATOR | KOBASSY MEC A866T06870 Superseded by part number: VAA866T06870 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONREGULATOR |
| 21. | VAMM502377 | [2] | BRUSH | KOBBRUSH MEC A648D01971 |
| 22. | VAMM502378 | [2] | SPRING SPRING, BRUSH MEC A389D01901 | SPRING SPRING, BRUSH MEC A389D01901 |
